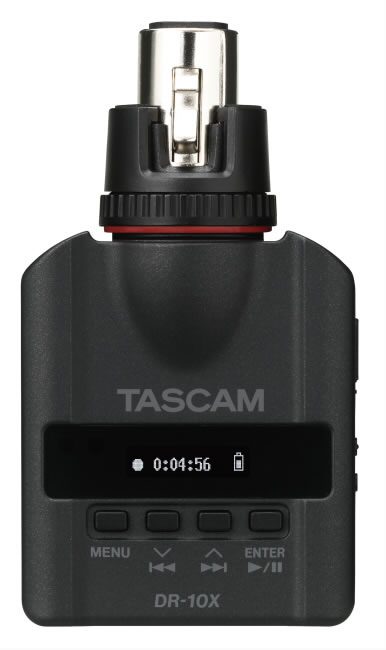

Tascam DR-10X XLR Micro Plug-On Audio Recorder

Providing a PCM recording solution that you can connect directly to your handheld dynamic microphone the DR-10CX Plug-On Micro Linear PCM Recorder from Tascam is capable of tracking in up to 24-bit, 48 kHz resolution to SD or microSD cards up to 32 GB and can be used for ENG applications.
The unit features automatic and manual gain settings as well as a selectable low-cut filter. It is capable of recording a safety track at a lower volume simultaneously to prevent against distortion. While designed for use with dynamic microphones, it can be used with condenser microphones that are connected to an optional power supply.
The DR-10CX can be powered by a single AAA battery (not included) for up to 10 hours and includes a USB cable, a connection cable, a belt, a clip, and a carrying case.
Key Features

XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery)
48 kHz/24-bit mono digital recording
Uses standard microSD/microSDHC card media (up to 32 GB)
Mic pre gain Low/Mid/High control
Instant record mode – power on while holding record button side switch
Limited and low-cut filter
Manual and automatic gain control
Dual Recording feature captures a safety track in case of distortion
Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
Records BWF file timestamped with time of day clock
Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
OLED display
More than 8 hours recording on a single AAA battery
Playback function with headphone out
Settings can be created with text file on PC and transferred to DR-10X via the microUSB connection
Infrared data communication for transferring setting information among multiple DR-10C

Specifications

Recording Media
microSD card (64 MB to 2 GB),microSDHC card (4 to 32 GB)

SD Card Slot
Push-Push type (Guard cover mounted)

Recording Format
WAV (BWF)

Sampling Frequency
48 kHz

Bit Rate
24-bit

Channels
1 (mono)

Analog Audio Input
XLR-3-31

Input Impedance
10 kOhms or more

Mic Input
Mic Input Gain: Low, Mid, High

Headphones
1/8″ (3.5 mm) stereo mini jack (dual mono operation)

USB
Connector: Micro-B type (4 pin)Maximum Output: USB 2.0 high speed mass storage

Power
1x AAA battery (alkaline or NiMH)USB bus power

Battery Operating Time
Alkaline Battery (EVOLTA): About 10 hours

RTC
RTC Battery: 1x lithium (soldered in)

Dimensions (WxHxD)
2 x 3.7 x 1.1″ (52 x 94.4 x 28 mm)

Weight
2.4 oz (68.3 g) with batteries2 oz (56.3 g) without batteries
