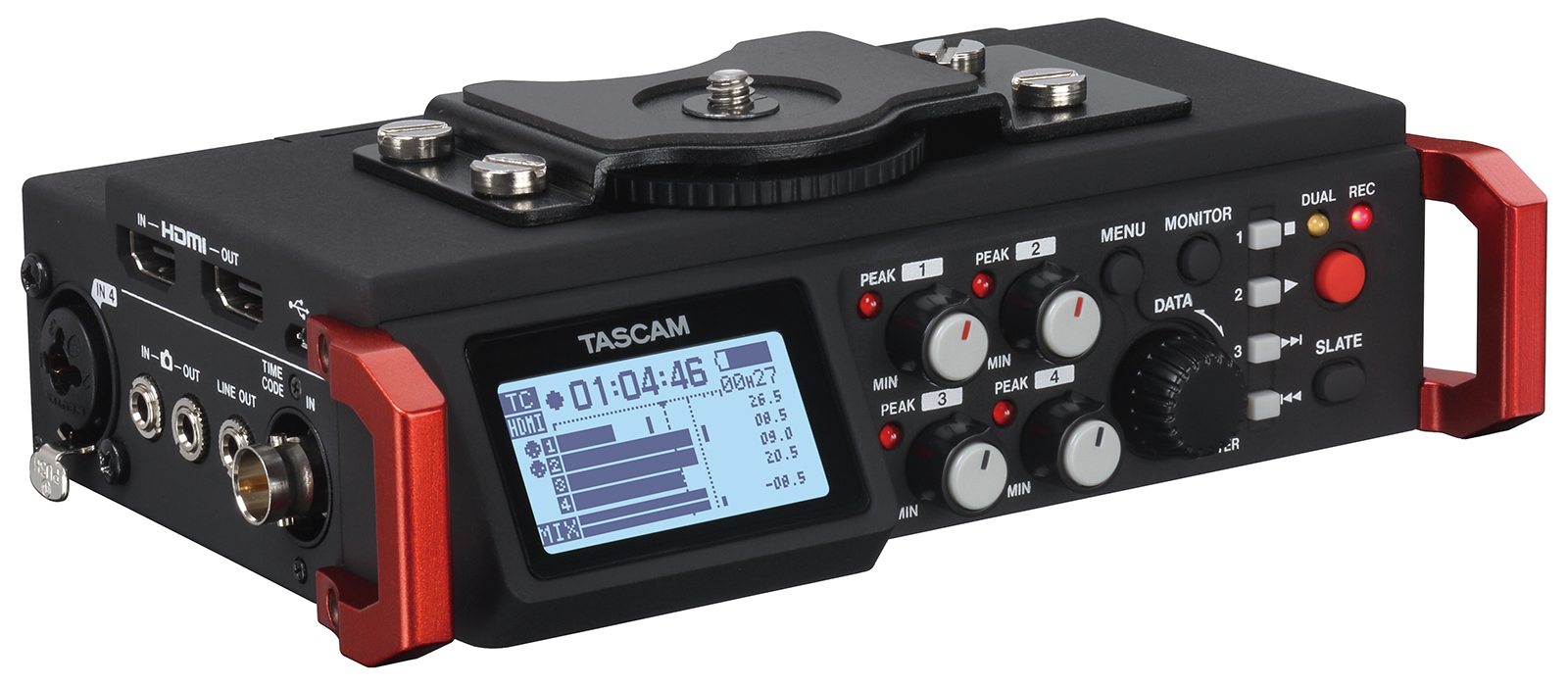

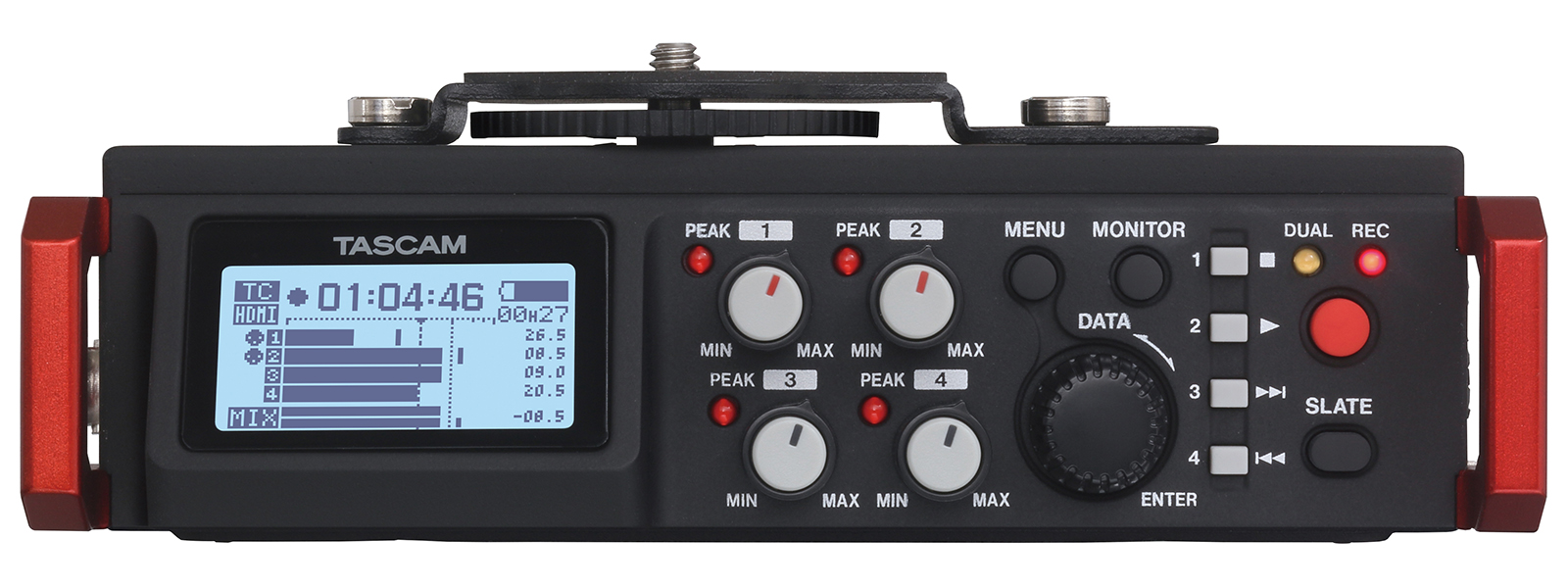

TASCAM DR-701D 6-Track Audio Field Recorder & Mixer for Video

The TASCAM DR-701D is a professional 6-track field recorder and mixer built specifically for film, television, documentary, advertising, and high-end video production. Compact enough to mount directly to a camera rig yet powerful enough for demanding location sound, the DR-701D combines multi-track recording, HDMI camera sync, and a built-in SMPTE timecode generator in a rugged magnesium-alloy chassis.

Designed for single-operator shoots or dedicated sound recordists, the DR-701D delivers rock-solid sync and clean, flexible audio capture—without the bulk of traditional field recorders.

6-Track Recording with Built-In Mixer

The DR-701D allows you to:

• Record 4 discrete microphone inputs

• Simultaneously record a stereo L/R mix

• Capture up to 6 tracks at once

Using the built-in mixer, you can adjust level, pan, delay (for mic distance compensation), and even apply mid-side (MS) decoding for MS stereo microphones. This gives you both safety tracks and a ready-to-use mix for post.

For larger setups, multiple DR-701D units can be cascaded via HDMI for expanded track counts and synchronized transport control.

Perfect Camera Sync via HDMI

The DR-701D features HDMI input and output that digitally synchronise the recorder’s internal clock with a compatible camera. This prevents drift between audio and video—even during long takes.

Key HDMI Sync Benefits

• Camera clock synchronization (no drift)

• One-button record start/stop from the camera

• Prevents missed takes on single-operator shoots

• Audio can be embedded and monitored through HDMI

Built-In SMPTE Timecode Generator

For professional workflows, the DR-701D includes a full SMPTE timecode system:

• Jam-sync from external LTC sources

• Follow timecode sent via HDMI from supported cameras

• BNC timecode input for master clock systems

• Internal RTC generator for time-of-day stamps

• Timecode written directly into BWF audio files

This ensures accurate location reference and seamless post-production syncing.

High-Quality Mic Inputs for Location Sound

Analog Inputs

• 4 × XLR mic inputs with switchable gain ranges

• Phantom power: 24 V or 48 V per channel

• Mic gain up to +64 dB (HI+)

• Equivalent Input Noise: −124 dBu

Additional Inputs

• 2 × 3.5 mm EXT IN with plug-in power

• Camera return input for monitoring camera audio

From dialogue and ambience to effects and VR audio capture, the DR-701D adapts to a wide range of microphones and production styles.

VR & Ambisonics Ready

With firmware v2.00 and later, the DR-701D supports Ambisonics recording for VR and immersive audio production, including:

• A-format and B-format encoding

• Real-time stereo monitor mix of B-format audio

This makes it a powerful and compact solution for modern immersive content creation.

Designed for Rig Flexibility

• Top and bottom tripod mounts

• Mounts under a camera, on a cage, or standalone

• Magnesium alloy chassis for strength with low weight

• Quiet rubber transport and slate buttons to reduce handling noise

Key Features

• 6-track recording (4 inputs + stereo mix)

• HDMI camera clock sync & record trigger

• SMPTE timecode generator & jam-sync

• Cascade function for multi-unit expansion

• High-quality mic preamps with wide gain range

• Mid-Side decoding & mixer delay

• VR / Ambisonics support

• Compact, camera-mountable professional design

Specifications (Summary)

Recording

• Media: SD / SDHC / SDXC

• Formats: WAV / BWF

• Sample Rates: 44.1 / 48 / 96 / 192 kHz

• Bit Depth: 16-bit / 24-bit

• Tracks:

  • Up to 6 tracks (44.1–96 kHz)

  • Up to 2 tracks (192 kHz)

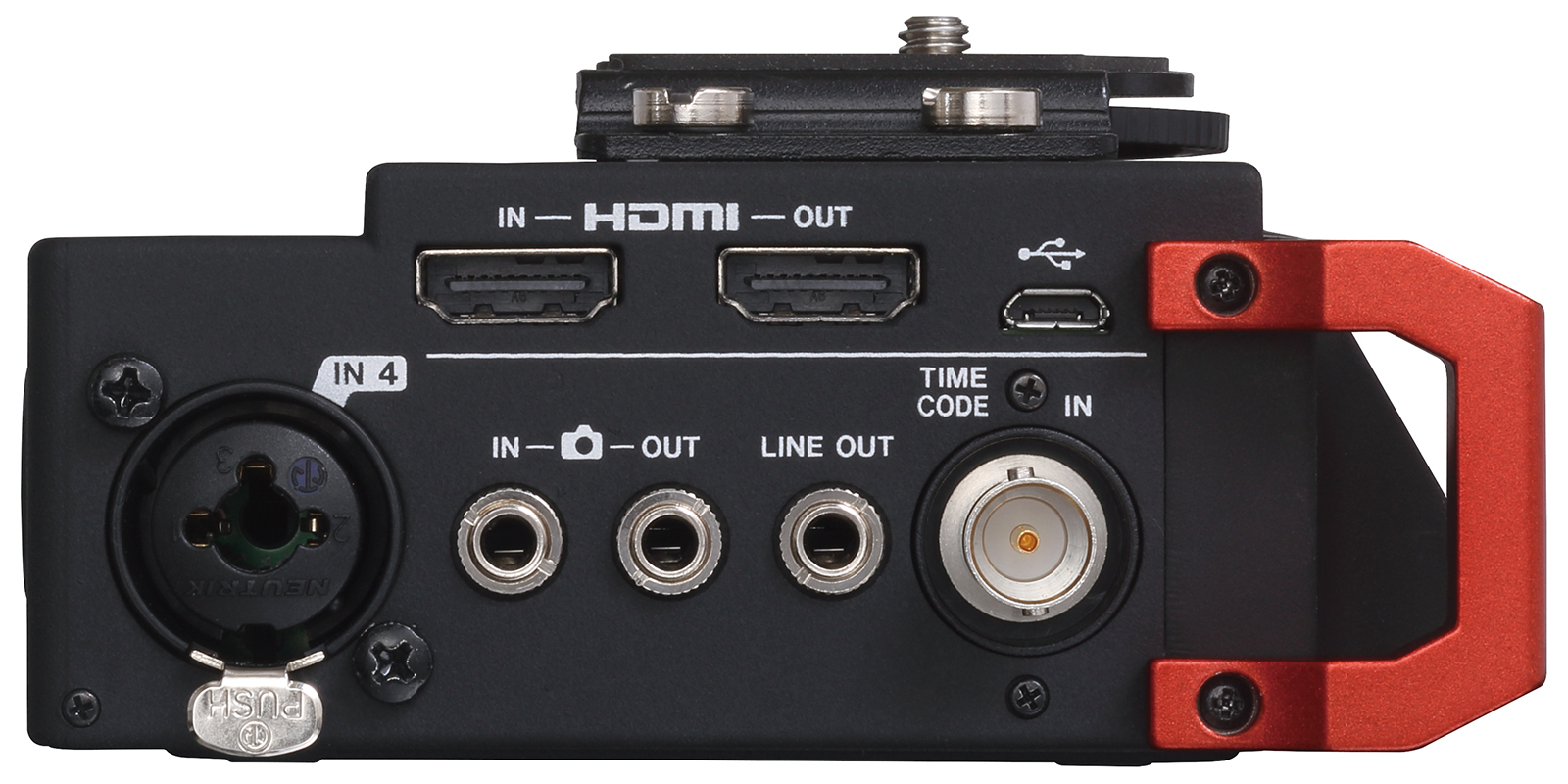

Connectivity

• Inputs:

  • 4 × XLR mic

  • 2 × 3.5 mm EXT IN

• Outputs:

  • Line out, camera out, headphone out

• HDMI: Type-A IN / OUT

• USB: Micro-B (USB 2.0 mass storage)

• Timecode: BNC IN (SMPTE 12M)

• MIDI: Via HDMI cascade

Power

• 4 × AA batteries (Alkaline, Ni-MH, or Lithium)

• Optional AC adapter: TASCAM PS-P520E (sold separately)

• Optional battery pack: TASCAM BP-6AA (sold separately)

Physical

• Dimensions: 169 × 57.3 × 113.5 mm (with top adapter)

• Weight:

  • 654 g (with batteries)

  • 567 g (without batteries)

What’s in the Box

• DR-701D × 1

• USB cable × 1

• Camera attachment bracket screw hole covers × 6

• Owner’s manual (including warranty) × 1

Why Choose the DR-701D?

The DR-701D remains a gold-standard field recorder for video professionals who need absolute sync reliability, professional timecode, and multi-track flexibility in a compact form. Whether you’re shooting documentaries, commercials, long-form interviews, or VR content, it delivers dependable, broadcast-ready results in the field.
