TASCAM MP-800U – SD/USB Player with Bluetooth®, USB DAC and FM Tuner

The TASCAM MP-800U is a professional 1U media player designed for commercial and installed audio systems where flexibility, reliability, and sound quality matter. Combining SD/USB playback, a built-in FM tuner, USB DAC functionality, and optional Bluetooth® audio, the MP-800U is an all-in-one playback solution for restaurants, hotels, retail spaces, conference venues, houses of worship, and entertainment environments.

With balanced XLR and unbalanced RCA outputs, advanced playback controls, and optional network and control integrations, the MP-800U fits seamlessly into modern AV installations.

Versatile Playback Sources

The MP-800U supports multiple playback sources from a single compact unit:

• SD card & USB flash drive playback (WAV, MP3, AAC)

• USB DAC via front-panel USB-C for laptops, tablets, and smartphones

• Built-in FM tuner with up to 20 preset stations

• Optional Bluetooth® streaming with the AK-BT2 adapter (sold separately)

This flexibility allows integrators to support background music, scheduled playback, live DJ inputs, and external devices without changing hardware.

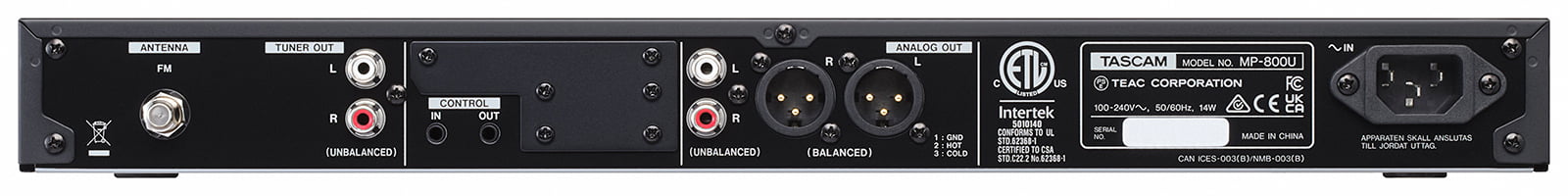

Professional Audio Connectivity

Designed for permanent installations, the MP-800U includes:

• Balanced XLR outputs for professional audio systems

• Unbalanced RCA outputs for legacy or auxiliary systems

• Dedicated RCA tuner output

• Front-panel headphone output for monitoring

Independent output level controls allow precise gain staging across different signal paths.

Advanced Playback & Control Features

The MP-800U delivers broadcast-style playback control with:

• Power-On-Play (automatic playback at startup)

• Auto Cue / Auto Ready

• Incremental Play

• Fade-in / Fade-out

• Pitch control ±16%

• Key Original (speed change without pitch shift)

• Repeat modes (All / Single / A-B)

• Direct track selection via numeric keypad

For unattended or scheduled environments, these features ensure smooth, predictable operation.

Remote, App & System Integration

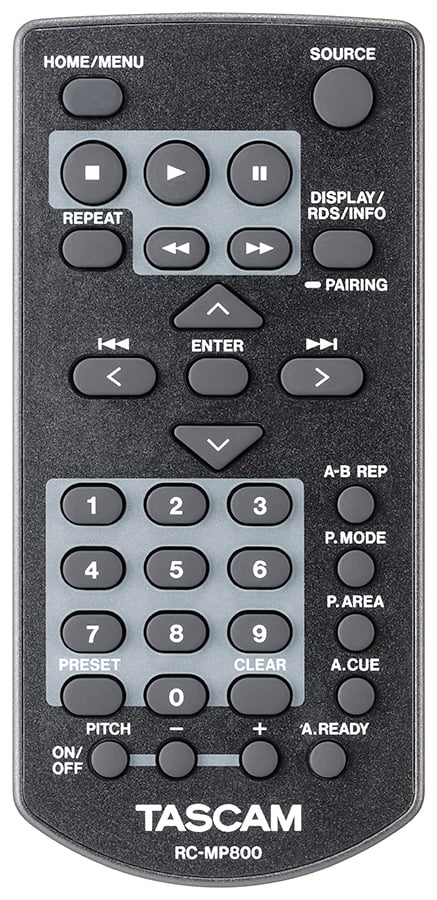

• Wireless IR remote control included

• iOS / Android TASCAM MEDIA CONTROL CENTER app support*

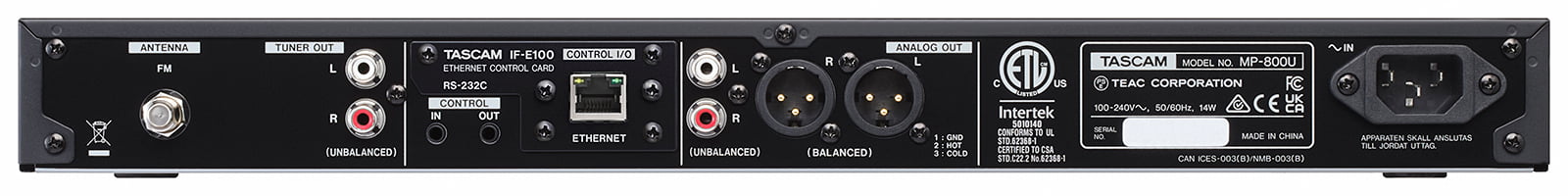

• External Ethernet control (Telnet) with optional IF-E100 Ethernet card

• Q-SYS platform compatibility (under development) for centralized AV control*

* Optional accessories required

Designed for Commercial Installations

• 1U rackmount chassis

• Panel lock function to prevent accidental operation

• Fader start/stop and tally output via CONTROL I/O

• Ideal for hospitality, retail, conference, education, and public venues

Key Features at a Glance

• SD card / USB flash drive player (WAV, MP3, AAC)

• USB DAC (Digital Audio Converter)

• Built-in FM tuner with presets

• Optional Bluetooth® audio (AK-BT2 required)

• Balanced XLR & unbalanced RCA outputs

• Auto Cue / Auto Ready playback

• Pitch control ±16% & Key Original

• 1U rackmount size

• Optional Ethernet & Q-SYS integration

Specifications

• Dimensions: 482.8 × 46.5 × 297.1 mm (W × H × D, incl. protrusions)

• Weight: 2.7 kg

• Rack Size: 1U

What’s in the Box

• MP-800U main unit × 1

• Power cord × 1

• Wireless remote control (RC-MP800) × 1

• AAA batteries × 2

• FM antenna × 1

• Rack mounting kit (screws & washers) × 1

• Security screw × 1

• TASCAM ID registration guide × 1

• Safety guide (including warranty) × 1
