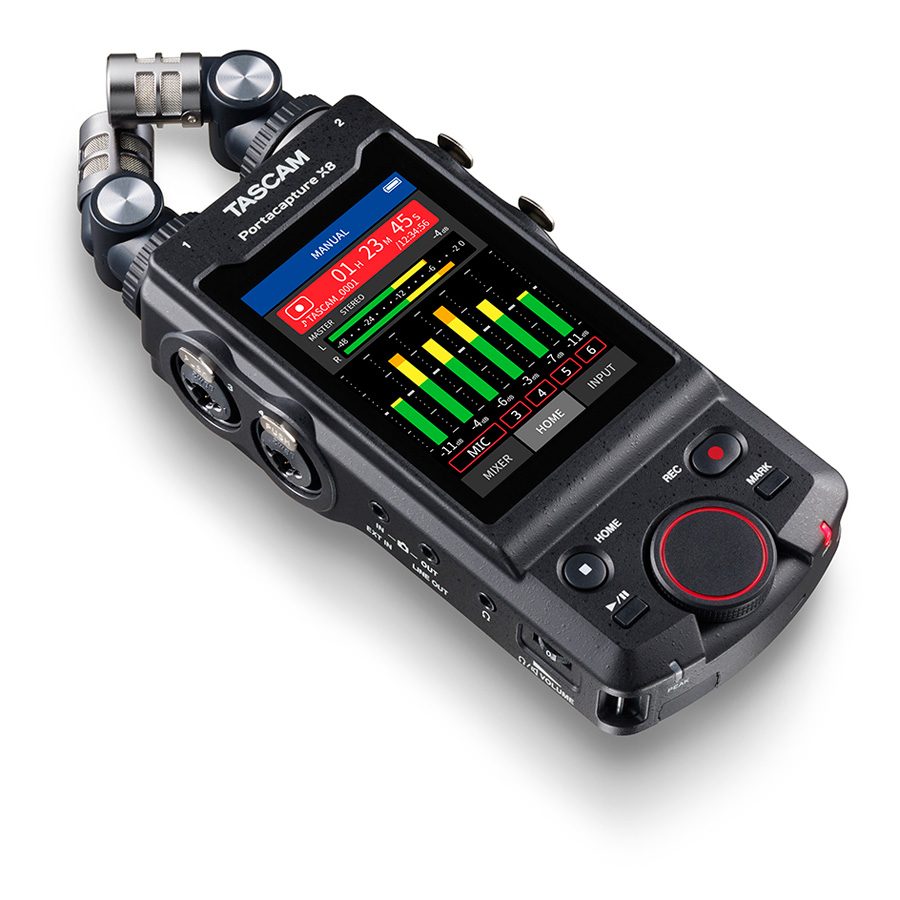

Tascam Portacapture X8

The Tascam Portacapture X8 has an intuitive Launcher system using a 3.5-inch colour touch panel display. This new generation high-res multi-track handheld recorder has recording applications such as basic multi-track recording, podcasting, music, voice (interviews, vlog), field recording, ASMR + more. Innovative, powerful, yet simple.
Key Features:
Launcher Icon System
The new Launcher system and 3.5-inch color touch panel allow smooth navigation to select the best audio settings that match the application. Taking advantage of these presets, users will have more time to focus on the actual recording without the need to struggle with complicated settings.
Configure Level Settings With Ease
The Portacapture X8 provides a preset level setting to achieve a wide dynamic range utilizing the premium dual AD converters and 32-bit float point recording technology. The result is content with uncompromised audio quality even with low level recordings. The audio data can be edited and increased later without deteriorating the S/N (signal-to-noise ratio). Also the internal normalize function allows automatic level alignment of the 2-mix file after recording. Combining these features, there’s no need to use valuable creative time finding the right audio level that matches the recording.
USB Audio Interface Function With No Driver Needed
Utilizing plug-and-go driverless functionality, the Portacapture X8 can be used as a compact mixer with built-in microphones for live streaming via OBS or similar platforms, and also offers direct recording of video narration and dialogue directly to DAW and editing software. The Portacapture X8 streams up to 8 tracks (6 inputs and 2mix) through USB. By supporting the USB Type-C Power Delivery standard, Portacapture X8 can provide phantom power to each external mic at once with USB bus power. For video or audio conferencing, use the Portacapture X8 as your USB microphones and even record the audio simultaneously.
Premium Large Format Built-in Microphones
The Portacapture X8 comes with two 14.6mm diameter built-in microphones, the largest in our lineup. Employing a detachable mechanism, both L and R microphones can be flexibly attached/detached from the main unit to form A-B / True X-Y mic patterns.
Wireless Remote Control via Optional Bluetooth Adapter and Original App
Wireless remote control is possible via mobile devices such as smartphones and tablets (iPad and Android devices) using the optional AK-BT1 Bluetooth dongle and the Portacapture Control app, which can be downloaded free of charge from the App Store or Google Play.
Multi-track Recording Up to 8 tracks (6 tracks + 2 mix)
The Portacapture X8 can simultaneously record up to 8 tracks in total (6 tracks + 2 mix). From monaural audio recording to multi-track music recording, the Portacapture X8 can be flexibly adapted for a wide range of applications. For the XLR/TRS inputs, TASCAM know-how utilizing the in-house-developed HDDA (High Definition Discrete Architecture) mic preamps – enables high-quality audio recording.
4 XLR/TRS Combo Jacks With External MIC/LINE Connectivity and Camera in/out
With its 2 built-in stereo mics, 4 XLR inputs with support for both mic and ¼’ line-level*, EXT-IN, LINE OUT, and CAMERA IN/OUT connections, the Portacapture X8 is a versatile portable recorder with an abundance of IN/OUT choices.
Flexible Configuration With Cold Shoe/ Tripod Screw Connectors
The unit’s external mechanism provides flexible functionality. Portacapture X8 can be easily mounted on top of cameras and tripods, and be combined with AV rigs. The rear cold shoe mount also makes it possible to attach mic holders and/or wireless receivers.
*Adapters and cables not included

Specifications

Recorder Specifications


Recording media
microSD cards (64MB – 2GB), microSDHC cards (4GB – 32GB), microSDXC cards (48GB – 512GB)

Recording / Playback Formats


WAV (BWF)
44.1k/48k/96k/192kHz, 16/24-bit, 32-bit float

MP3
44.1k/48kHz, 128k/192k/256k/320kbps

Number of channels


Input channels
6 channels maximum

Recording tracks
8 tracks maximum (6 tracks, stereo mix)

Analog Audio Input Ratings


Mic inputs (unbalanced)


Input jacks 1-2(support plug-in power)


Connectors
3.5mm (1/8″) Mini TRS jacks

Maximum input level
+1dBV

Minimum input level
-69.3dBV

Input impedance
85kΩ or higher

Mic inputs (balanced)


Input jacks 3-6(input set to “MIC”)


Connectors
XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD)6.3mm(1/4″) standard TRS jacksInput(Tip: HOT, Ring: COLD, Sleeve: GND)Note: phantom power supported by XLR only

Maximum input level
+2dBu

Minimum input level
-75dBu

Input impedance
2.2kΩ or higher

Input jacks 3-6(Input set to “LINE”)


Connectors
XLR-3-31 equivalent(1: GND, 2: HOT, 3: COLD)6.3mm(1/4″) standard TRS jacksInput(Tip: HOT, Ring: COLD, Sleeve: GND)

Nominal input level
+4dBu (GAIN:min)

Maximum input level
+24dBu

Minimum input level
-53dBu

Input impedance
9kΩ or higher

Line input (unbalanced)


EXT IN jack


Connectors
1/8″ (3.5mm) Stereo Mini jack

Nominal input level
-10dBV (GAIN:min)

Maximum input level
+10dBV

Minimum input level
-48dBV

Input impedance
8.5kΩ or higher

Analog Audio Output


Line output (unbalanced)


LINE OUT jack


Connectors
1/8″ (3.5mm) Stereo Mini jack

Nominal output level
-14dBV

Maximum output level
+6dBV

Output impedance
200Ω

Headphone Output


Headphone jack


Connectors
1/8″ (3.5mm) Stereo Mini jack

Maximum output
45mW + 45mW(THD+N 0.1% or less, into 32Ω)

Built-in speaker
0.4W (mono)

Control input/output Ratings


USB port


Connectors
USB Type-C

Format
USB2.0 HIGH SPEED mass storage class

Bluetooth® device connector
For Bluetooth® adapter (AK-BT1) only

Power
4 AA batteries (Alkaline, Ni-MH or Lithium-ion)USB bus power from a computerTASCAM PS-P520U AC adapter (sold separately)

Power consumption
7.5W (maximum)

Dimensions
83 (W) × 205.6 (H) × 41.5 (D) mm -including protrusions

Weight
472g / 381g (with/without batteries)

Operating temperature range
0 – 40°C

Audio


Input jacks 1–6and EXT IN jack to PCM data
20Hz – 20kHz at 48kHz: +0 / -0.3dB (JEITA)20Hz – 60kHz at 192kHz: +0 / -2.5dB (JEITA)

S/N ratio


Input jacks 1–2 to PCM data(20kHz SPCL LPF, A-weighting)
101dB (48kHz)

Input jacks 3–6, EXT IN jack to PCM data(20kHz SPCL LPF, A-weighting)
102dB (48kHz)

Total harmonic distortion ratio (THD+N)(1kHz sine, -5 dBFS input,GAIN: min,20kHz SPCL LPF)


Input jacks 1–2 to PCM data
0.005%

Input jacks 3–6 (LINE IN) to PCM data
0.008%

Input jacks 3–6 (MIC IN) to PCM data
0.006%
