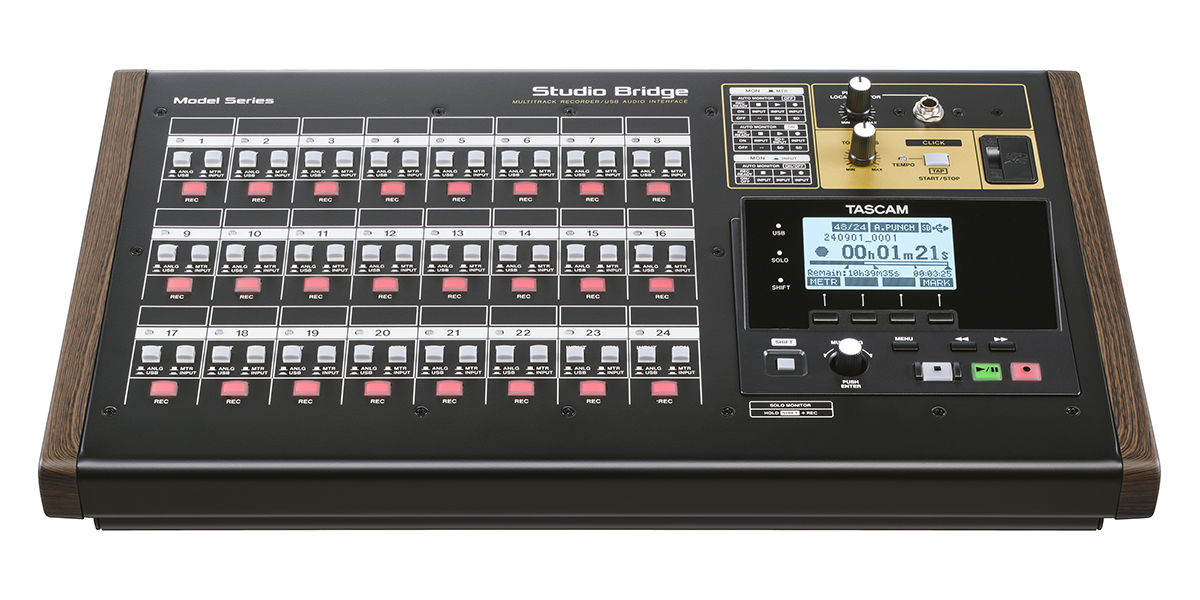

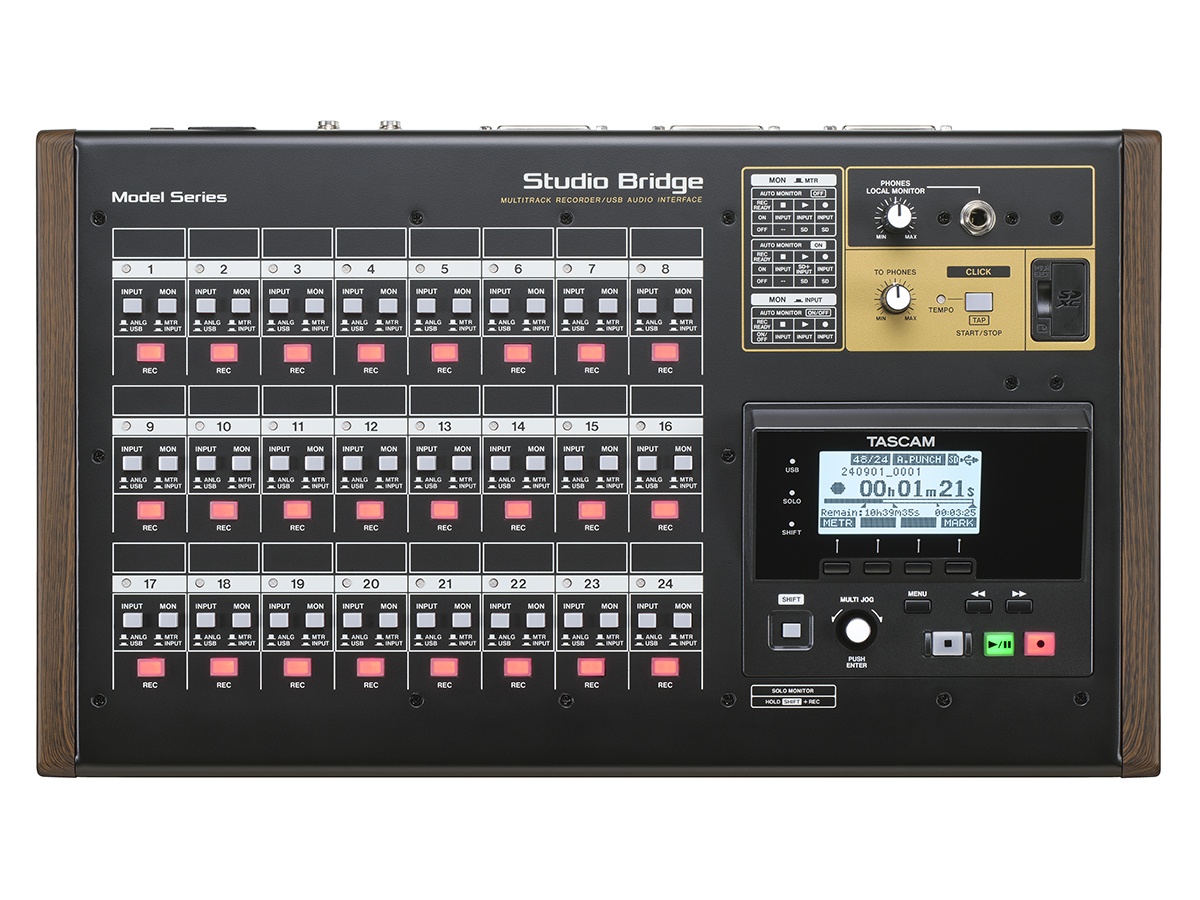

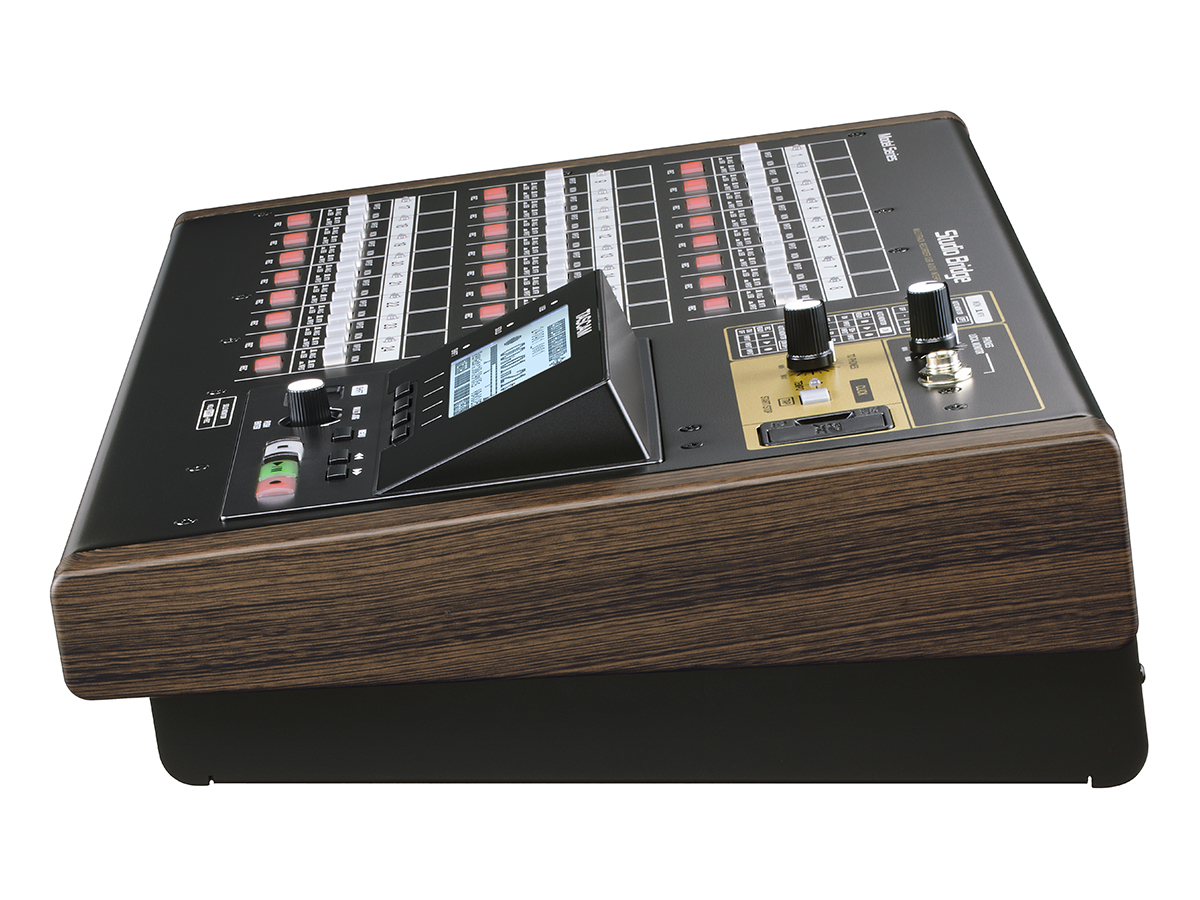

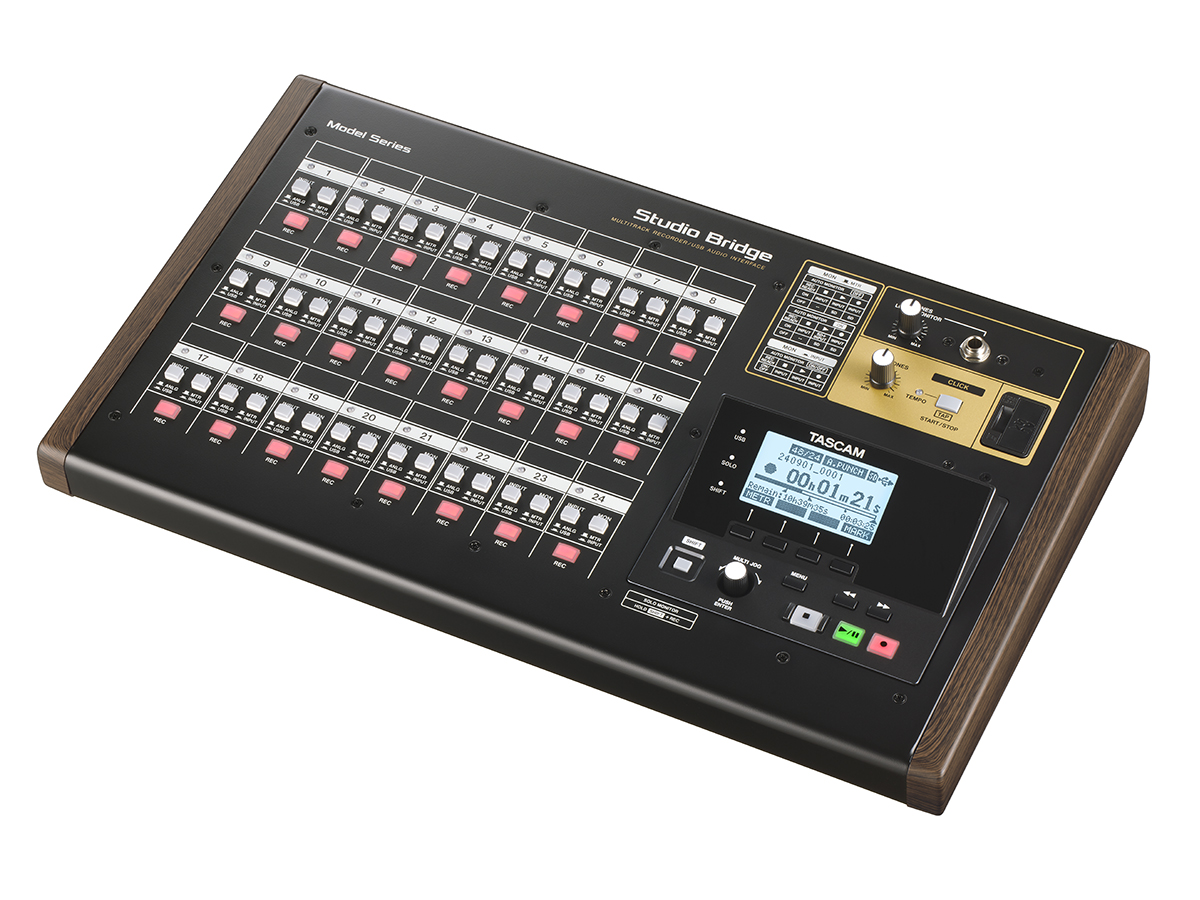

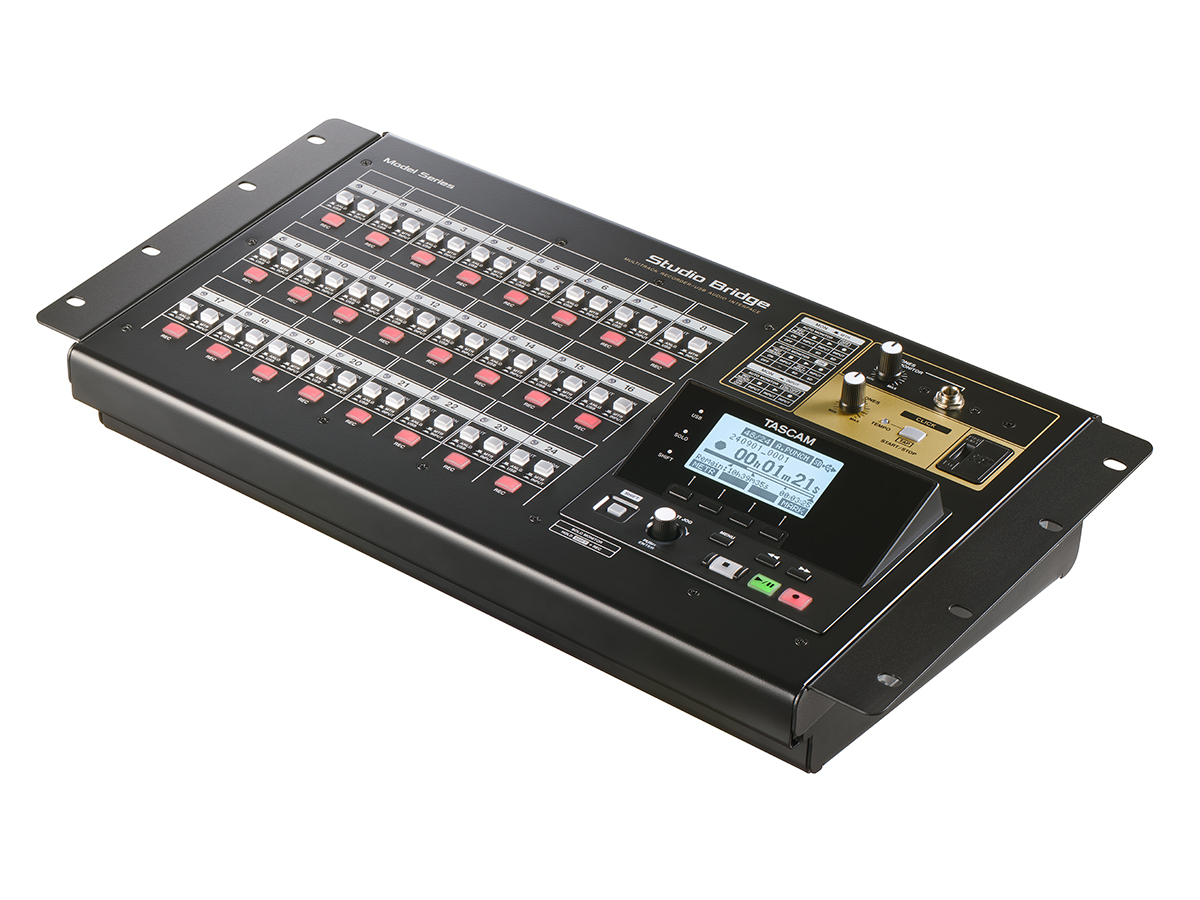

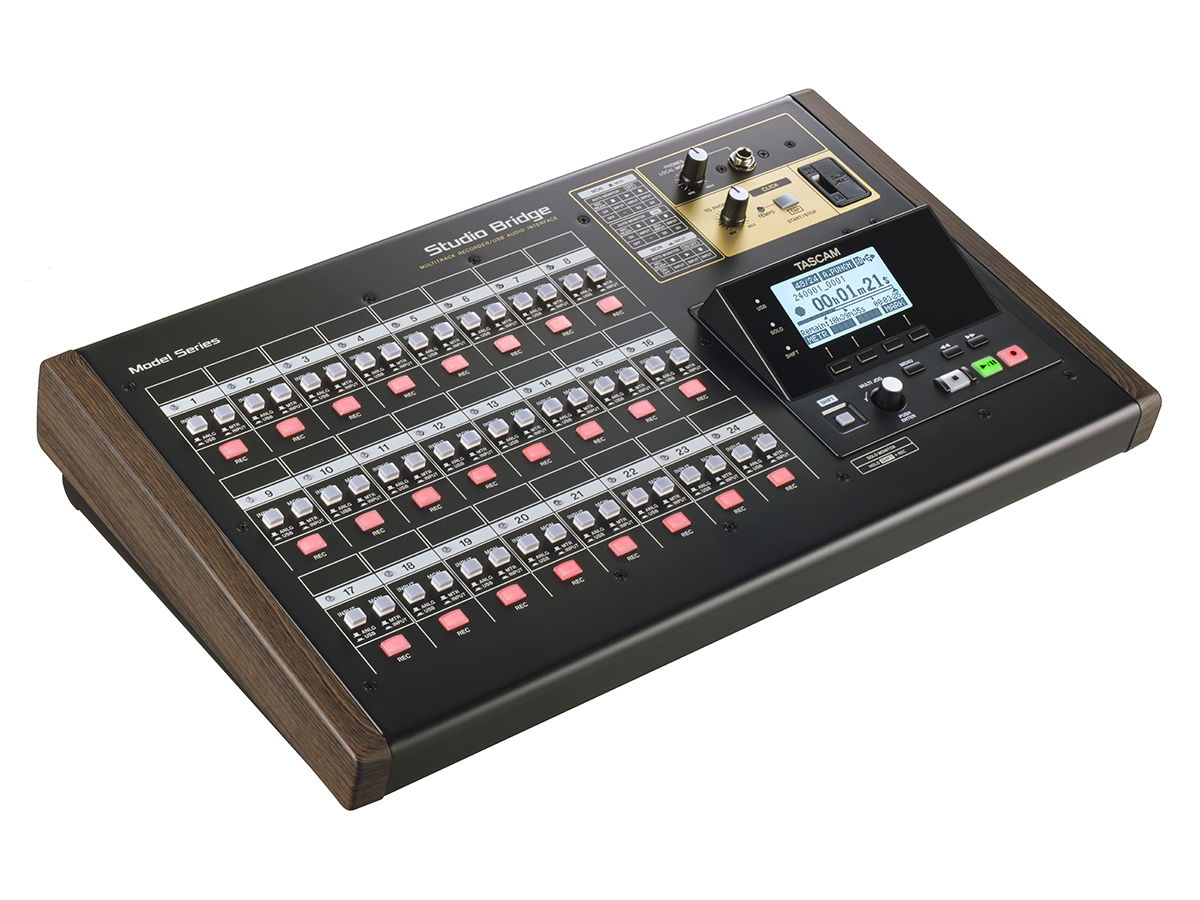

TASCAM Studio Bridge – 24-Track Recorder & 24-In / 24-Out USB Audio Interface with MIDI

The TASCAM Studio Bridge is a purpose-built solution for engineers who want to keep analog mixers at the heart of their workflow while enjoying modern multitrack recording and DAW integration. It quite literally bridges the gap between analog consoles and digital recording—whether you work DAW-less, fully in a DAW, or in a hybrid setup.

Studio Bridge lets you record 24 tracks directly to SDXC media or straight into your DAW via USB, then return tracks back to your console for analog summing and outboard processing. The result: digital convenience with true analog character.

Analog Workflow, Modern Flexibility

With Studio Bridge you can:

• Track from an analog mixer to a DAW

• Record 24 tracks DAW-less to the onboard SD recorder

• Send tracks back to your console for hands-on mixing

• Capture warm, analog-summed mixes while retaining digital control

It’s ideal for personal studios, hybrid production rooms, and live recording environments where simplicity and reliability matter.

24-Track DAW-less Multitrack Recorder

• 24-track recording to SDXC cards

• Punch-in / punch-out supported

• Records WAV (BWF) files for easy post production

• Export stereo mix files directly from the unit

• No computer required

Studio Bridge effectively becomes a modular 24-channel recorder for any analog console.

24-In / 24-Out USB Audio & MIDI Interface

Studio Bridge also functions as a full-featured USB audio interface:

• 24 analog inputs / 24 analog outputs via DB-25 (AES59 compliant)

• 24-in / 24-out USB audio for any major DAW

• Return DAW tracks to your console for analog summing

• USB MIDI interface plus MIDI IN / OUT ports for hardware sync

Perfect for hybrid studios that blend analog tone with digital editing.

DAW Transport Control & Meter Bridge

Studio Bridge doubles as a DAW transport controller, supporting HUI / MCU protocols for:

• Play / Stop / Record

• Rec Ready control

The included Settings Panel software (Mac & Windows) adds a digital meter bridge, showing:

• Per-channel levels

• Stereo master bus levels

Confirmed DAW Compatibility

Pro Tools, Logic Pro, Cubase, Ableton Live, Studio One, REAPER, Digital Performer, Cakewalk, Cubasis.

MIDI Sync for Hardware-Based Studios

With built-in MIDI IN / OUT, Studio Bridge integrates seamlessly with:

• Drum machines

• Sequencers

• Synths

• Controllers

A ¼″ click output with tempo control makes it ideal for synchronized tracking and live recording.

Live Recording Made Simple

In live environments, Studio Bridge becomes a mobile 24-track recording system:

• Connect directly to the front-of-house console

• Record multitrack audio without a laptop

• One unit, fast setup, maximum reliability

Key Features

• 24-track SDXC multitrack recorder (DAW-less operation)

• 24-in / 24-out USB audio interface

• 24 analog line-level I/O via DB-25

• DAW transport & Rec Ready control (HUI / MCU)

• Dedicated control software with meter bridge

• USB MIDI + MIDI IN / OUT

• ¼″ click output with tempo control

• Designed for studio, hybrid, and live recording workflows

Specifications (Summary)

Recorder

• Media: SD / SDHC / SDXC (Class 10 or higher)

• Format: WAV (BWF)

• Sample Rates: 44.1 / 48 kHz

• Bit Depth: 16-bit / 24-bit

• Tracks: 24

• I/O Channels: 24 In / 24 Out

Analog I/O

• Connectors: 25-pin balanced D-sub (AES59-2012)

• Nominal Level: +4 dBu

• Max Level: +24 dBu

USB Audio

• USB: Type-B, USB 2.0 High-Speed

• Audio: 24-bit, 44.1 / 48 kHz

• Channels: 24 In / 24 Out

MIDI

• MIDI IN / OUT (5-pin DIN, MIDI 1.0)

Power & Physical

• Power: AC 100–240 V, 50 / 60 Hz

• Consumption: 20 W

• Dimensions: 446.5 × 114.6 × 269.5 mm (W × H × D)

• Weight: 4.5 kg

Why Choose Studio Bridge?

If you value hands-on analog mixing, outboard gear, and reliable multitrack recording, Studio Bridge keeps your workflow fast, musical, and flexible. It’s the ideal centrepiece for engineers who want DAW-less freedom, hybrid production, and true analog summing—all in one rock-solid unit.
