2K Streaming Node RGB Link

There are 2 Versions 2K or 4K
TAO 1mini is the latest signal node to a new level for advanced use cases, not only for encoder, but also decoder.It expands the connectivity in a single unit including HDMI 2.0 and UVC IN & OUT, but also ethernet I/O. With HDMI 2.0 and UVC inputs for a 4K encoding and multiprotocol streaming by ethernet outputs. Vise versa, as a 4K decoder from ethernet inputs to HDMI 2.0 and UVC output.It comes with higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.Multi-Input Video ProcessingThe single-channel TAO 1mini can encode one live input source – either HDMI or UVC – or mix video from the HDMI and UVC inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.Flexible Formats and ProtocolsTAO 1mini supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, NDI®|HX 3 and full NDI®- and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS. Up to eight channels of audio can be encoded in AAC format.Powerful Encoding & Streaming CapabilitiesIn Encoding mode, video can be encoded at resolutions up to 1920×1080 at 60 frames per second from HDMI sources, or up to 1920×1080 at 30 frames per second from the UVC input.TAO 1mini can stream to up to 32 different target destinations simultaneously at bitrates up to 32Mbps per stream, with TAO APP connection.Leading Decoding CapabilitiesIn Decoding mode, TAO 1mini will automatically adapt the Full NDI®, NDI®|HX2 and NDI®|HX3 format as your end needs. TAO 1mini will take care of your 4Kp60 video transmission.Versatile Recording and StreamingTAO 1mini supports streaming and recording simultaneously. Inputs can be recorded as files to an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).USB ExtensionTAO 1mini has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for you to: Access a Web Camera via USB 3.0 Type-A as a video input source for encoding; Connect to your PC via USB 3.0 Type-C as a USB video input; With USB extensions available, you can achieve unlimited possibilities by seamlessly bringing NDI technology to your applications such as video conferencing, image processing, and more.New NDI®|HX 3 Support (certification in progress)For IP production workflows and AV-over-IP signal distribution architectures, TAO 1mini supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform.TAO 1mini also supports the earlier NDI®|HX 2 and full NDI® for broad compatibility. Large-sized colour LCD screen and finger touch A large colour LCD screen and finger touch enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease. LCD is also a built in preview monitor for the dedicated input selected.

Small and compact, easy to carry

Serve as either NDI video encoder or NDI decoder

Support multiple formats, including RTMP/RTMPS/RTSP/SRT/FULL NDI/NDI | HX3/NDI | HX2/ NDI | HX

Stream to at least 4 platforms at the same time
Low latency of end-to-end transmission

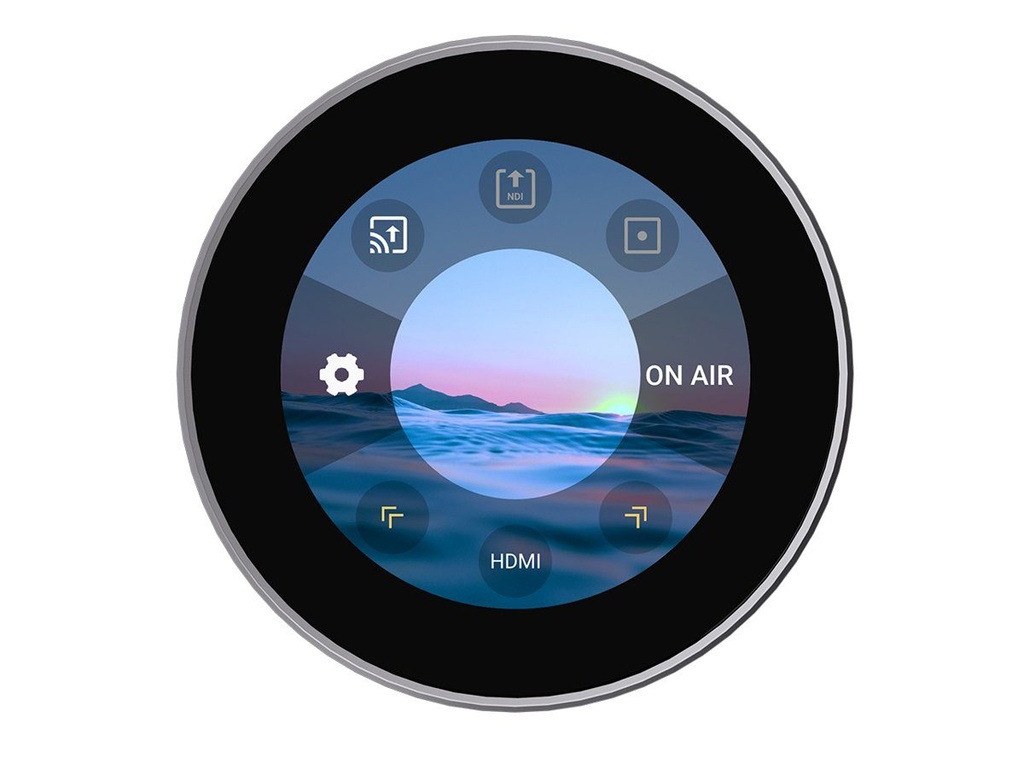

Intuitive touch control, higher color and image quality

Power from USB-C or PoE network

Dual ¼in mounts

LED TALLY indicators

Interface
Input
HDMI 2.0
1×HDMI-A








UVC
1×USB-C







Output
HDMI 2.0
1×HDMI-A







Audio
TRRS
1×3.5mm audio jack






Communication
LAN(PoE)
1×RJ45








USB 2.0
1×USB-A







Power
Type-C
1×PD Type-C








LAN(PoE)
1×RJ45






Performance
HDMI 2.0 input
Input resolution
720p@50/60 | 1080i@50/60 | 1080p@30/50/60






1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 |




1600×900@60 | 1920×1080@50/60 | 3840×2160@60



Format
YUV 4:2:2







Bit depth
8 bit/10 bit








Pixel format
BT.601 | BT.709







Image delay
3 frames







UVC/Type C input
Input resolution
1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 |




1920×1080@24/25/30/50/60



Decoding performance
MJPEG/YUV | H.264 | H.265


Audio Input
Audio delay setting
0~160ms








Analog audio input
MIC/LINE








Maximum input level
+6dBV







LAN
Coding performance
Support MJPEGYUV,H.264






Speed mode
CBR,VBR,FIXQP,AVBR,QPMAP






NDI coding
FULL NDI, 4K@60






NDI decoding
FULL NDI, 4K@60






RTMP coding
Support streaming software






Maximum output speed
125Mbps







HDMI 2.0 output
Output resolution
720×480@30 | 1280×720@30 | 1920×1080@30/60 | 3840×2160@60



Audio
Embedded audio output

Power
Mode
PoE, PD








Input voltage
5~12V








Maximum power
10W






Working Environment
Temperature
0℃~55℃






Humidity
5%~85%






Physical
Weight
Product

180g



Package
780g







Dimension
Product
91mm(diameter)×40.8mm(height)



Package
215mm×145mm x 80mm
