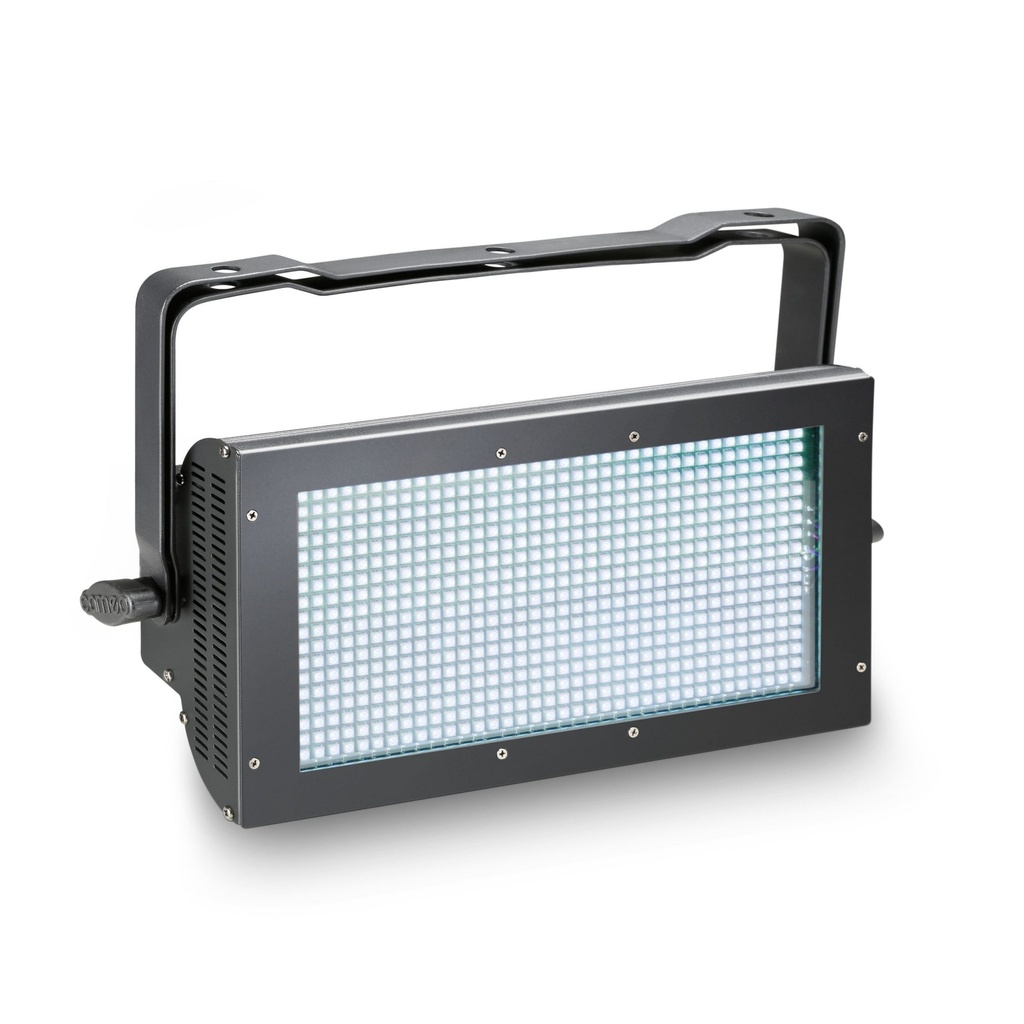

THUNDER WASH 600 RGBW 3 in 1 Strobe, Blinder and Wash Light

Strobe, Blinder and Wash Light in a single fixture


648 RGBW SMD LEDs 0.2 W


Massive total output of 6,700 lm


Strobe adjustable from 1 to 30 flashes/sec


DMX, sound activation and manual control


Standalone and master/slave operation


Blue & white power twist connectors for professional power linking, powerCON compatible


4-button colour LCD for easy menu navigation and configuration


Rugged all-metal housing with universal mounting bracket


Description

Electrify your audience with dramatic lighting and energy-laden effects. Combining a rapid-firing strobe, high intensity blinder and bright wash light, the Thunder Wash 600 RGBW is the latest addition to Cameo’s successful Thunder Wash series. To fit the needs of DJs, bands and live venues this powerful fixture is packed with features and control options.
Delivering a massive output of 6,700 lumens with extended 100° beam angle, the Thunder Wash 600 RGBW is equipped with a total of 648 SMD LEDs. In addition to 9 modes of DMX control it includes standalone and master/slave functionality. The Thunder Wash 600 RGBW also provides adjustable flash frequency and duration, smooth dimming and a built-in microphone for sound activation.
Menu navigation and configuration are a breeze thanks to a high-contrast colour LCD with mode, enter, up and down buttons. The Thunder Wash 600 RGBW comes in a durable all-metal housing with universal mounting bracket. 3-pin DMX and powerCON compatible connectors allow easy daisy chaining to charge up your show with multiple units.

Specifications



Product type
LED Strobes

Type
Strobe / Blinder / Washer

Colour spectrum
RGBW

Number of LEDs
648

LED type
0.2 W

Dispersion
100 °

Refresh rate
1 – 30 Hz

DMX input
XLR 3-pin male

DMX output
XLR 3-pin female

DMX mode
1-channel , 2-channel 1 , 2-channel 2 , 3-channel 1 , 3-channel 2 , 4-channel 1 , 4-channel 2 , 7-channel 1 , 7-channel 2

DMX Functions
colour macro , Dimmer , Flash duration , Flash rate , sound sensitivity

Standalone modes
Dimmer Mode , Flash rate , slave mode , sound control

Controls
Enter , Mode , Value Down , Value Up

Indicators
LC display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
160 W

Power connector
Blue & White Power Twist I/O

Housing material
metal

Cabinet colour
Black

Fuse
F3AL / 250 V

Dimensions without mounting bracket

Width
335 mm

Height
93 mm

Depth
182 mm

Weight
3,1 kg
