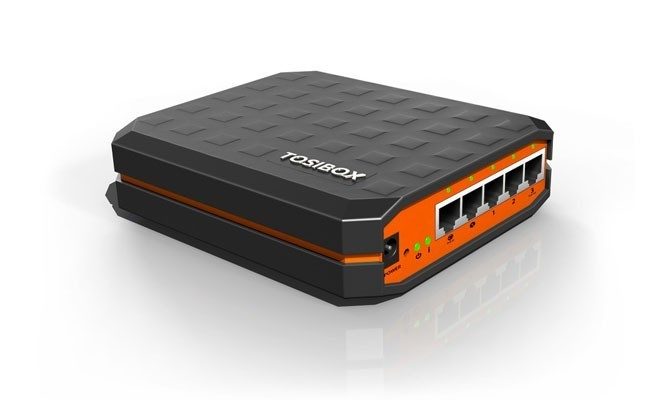

TOSIBOX Lock 200 Remote VPN

TOSIBOX® Lock 200 is an intelligent remote access and networking device that serves as an endpoint for secure remote connections. Devices connected to the Lock are securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.
NAT and firewall friendly, the Lock’s patented Plug & GOTM connection method takes you out of the box and into use in less than 5 minutes, without the need for software installations, network configurations or special skills.


Ports

1 x USB 2.0, type A
1 x RJ-45 WAN connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)
3 x RJ-45 LAN connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)
1 x RJ-45 Service connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)

Connections

DC input power jack 5.5/2.1mm, 8 – 27 V DC ± 10%, reverse polarity protected
PoE input 8 – 27 V DC (WAN port), PoE output (LAN3 port, limited, 27 V / 580 mA max)
The product must be powered by limited energy according to chapter 9.4 of IEC / UL 61010-1 3rd edition
DIN rail mounting bracket M3 threads on three sides
Maximum power consumption is 7W

WAN Connection Features

Independent of operating systems
Works in all Internet connections (operator independent)
Supports HTTP proxy servers with and without authentication
Firewall friendly
Works with dynamic, static and private IP addresses
Built-in firewall, NAT
Up to 50 concurrent VPN connections
VPN throughput up to 15 Mb/s

Mobile Connection Features

Supported 3G/4G USB modems: TOSIBOX® 3G modem, TOSIBOX® 4G modem
TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

Included Accessories

USB extension cable
RJ45/RJ45 Ethernet cable
AC adapter: Input 100 – 240 V AC, frequency 47 – 63 Hz, Output 12.0 V, 1.6 A, max 19.2 W. EU, UK, or US power socket
DIN rail mounting bracket
Power cable anchor
DC input plug

Physical Properties

140 mm x 36 mm x 125 mm / 5.51″ x 1.42″ x 4.92″ (L x W x H)
Weight 530 g / 1.17 lbs
Operating temperature -20 °C … +50 °C / -4 °F … +122 °F
Storage temperature -40 °C … +70 °C / -40 °F … +158 °F
Operating humidity: 20 – 80% RH, non condensing
Maximum operating altitude: 3000 m / 10 000 ft.
Overvoltage category I
Cast aluminium casing
IP protection class: IP20
