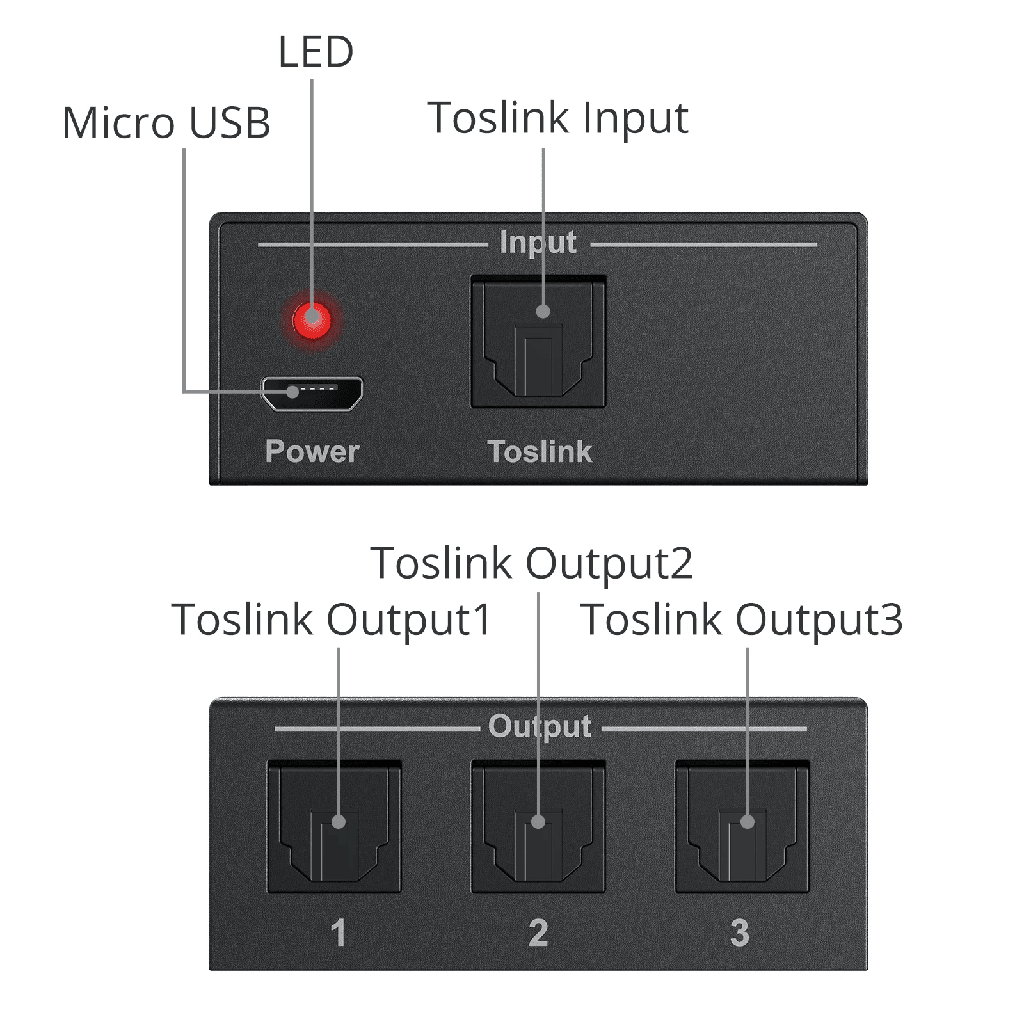

This SPDIF/TosLink Digital Optical Audio Splitter can let the users to connect one digital optical TosLink sources to three optical TosLink (SPDIF) input on your AV amplifier。
Features:
1. One way of optical fiber signals switch to three sets of SPDIF/TosLink signal receiving device.
2. Audio format support : LPCM2.0/DTS/Dolby-AC3
3. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 25m.
4. Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
5. LED status indication.
6. No loss of quality.
Specifications:
Support audio format: LPCM2.0/DTS/Dolby-AC3
Peak wavelength: 650nm
Max baud rate: 16Mbps
Output cable distance: ≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current: 100mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1000mA
Operating temperature range: (0 to +40℃)
Operating humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 48 x 48 x 20 (mm)
Weight: 70g
Package:
1 x Toslink Splitter
1 x USB Cable
1 x 1m Toslink cable (Optical cable)
1 x Operation Manual
