The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc…

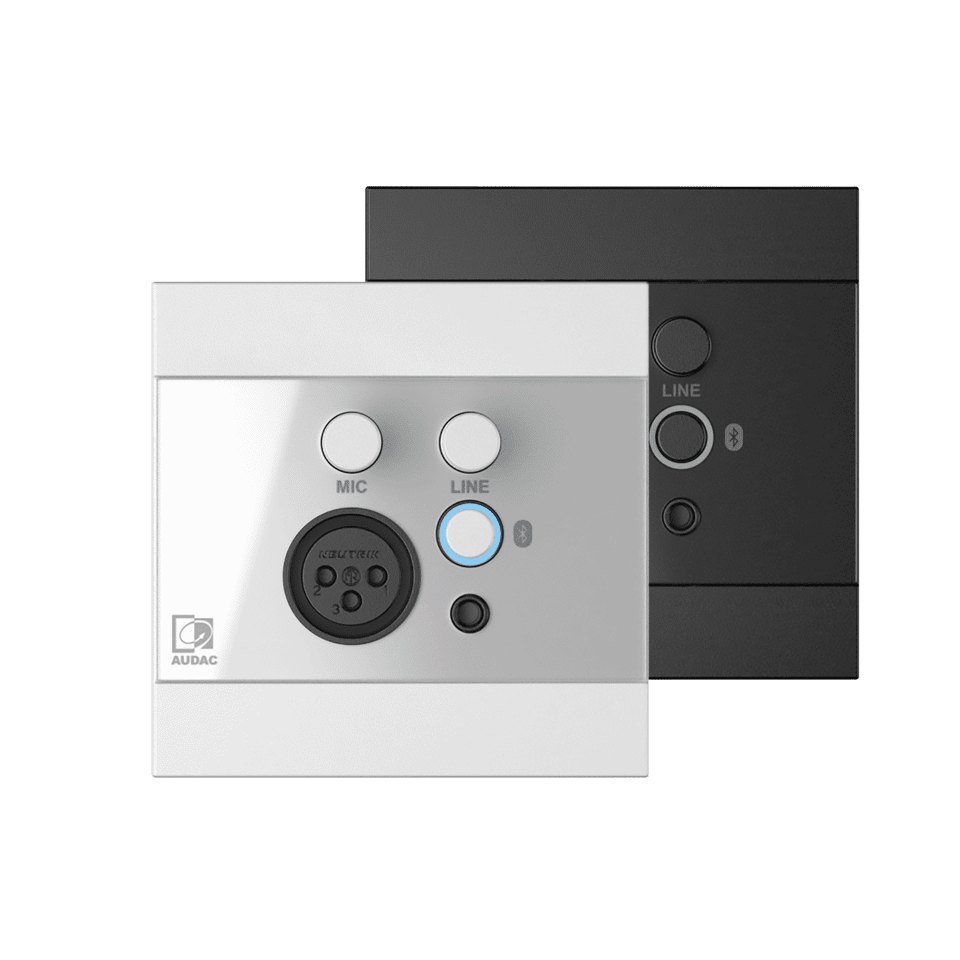

The WP225 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Clean fixed installation
The line input connections found on the front of the wall panels are also available on the back, allowing you to conceal fixed inputs easily. This can be very useful when a classroom has a fixed desktop computer and there is no need to change inputs.
Remarkable build quality
For the construction we have carefully selected high grade materials such as the hardened glass in black and white finish, these refined details will make them blend into any environment. All WP series wall panels are compatible with standard EU style in wall boxes, these wall panels are the ideal solution for solid and hollow walls.
Surface mount installation
The WB200 wall boxes allow surface mount installation for the WP2xx series and DWP series 80 x 80 mm sized wall panels.
Bluetooth custom ID naming
In large operations, several WP2xx wall panels might be required. It may be difficult to keep a clear overview when all these wall panels are equipped with Bluetooth. Therefore it is possible to change the Bluetooth ID of a WP2xx to differentiate each wall panel. The Bluetooth ID can be changed in the ‘AUDAC Bluetooth rename ID’ app.
Technical specifications
| WP225/B | Black version |
| WP225/W | White version |
| Outputs | Level | +12 dB | |
| 0 dB | |||
| Inputs | Wall Panel | Type | 3.5 mm jack stereo line input connection |
| XLR microphone input connection | |||
| Mic & Line inputs on rear for permanent connections | |||
| Bluetooth receiver (Version 5.0) | |||
| Control | Individual input level control for Mic & Line | ||
| Bluetooth pairing button with LED | |||
| Phantom power (DIP switch on rear) | |||
| Low-cut (Mic) enable / disable (DIP switch on rear) | |||
| Output level +12 dBV enable / disable (DIP switch on rear) | |||
| Bluetooth enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) | |||
| Connection | 3.5 mm jack input (Stereo line input) | ||
| Female XLR input connector (Microphone input) | |||
| 6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs) | |||
| 8-pin terminal block (3.81 mm pitch) output connection | |||
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | ||
| Colours | Black (RAL9005) (WP225/B) | ||
| White (RAL9003) (WP225/W) | |||
| Front finish | Elegant ABS front panel with glass | ||
| Accessories | Optional | Surface mount Installation boxes | WB200 – Surface mount wall box for WP & DWP series |
| Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS | ||
| Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG | |||
|
