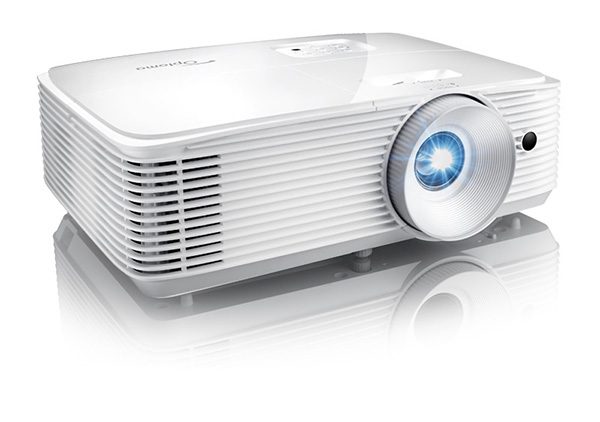

W335
Luminous WXGA projection with 3,800 lumens and 22,000:1 contrast ratio
HDMI, VGA and composite connectivity
Up to 15,000-hour lamp life
Vertical keystone for easy positioning
Integrated 10-watt speaker
Robust I/O and superior performance
Enhance spaces with captivating 3,800 lumens WXGA images with the Optoma W335. Its 22,000:1 contrast ratio, 1.55 – 1.73:1 throw ratio and 1.1x zoom make it ideal for small-to-medium spaces, such as classrooms, offices and training spaces.
Vertical keystone support simplifies placement for easy installation. An integrated 10-watt speaker delivers crisp, room-filling audio that enhances presentations and videos without any additional equipment.
Robust input options, including HDMI, VGA and composite enable connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.
Amazing Color
Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.
Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.
High Contrast
Add more depth to your image with a high-contrast projector. With brighter whites and ultra-rich blacks, images come alive and text is crisp and clear.
Eco+
Specially designed lamp modes reduce power consumption by up to 70%. Each mode also improves lamp life, which lowers the total cost of ownership and reduces maintenance.
Quick Resume
This feature allows the projector to be instantly powered on again within 100 seconds of turning it off.
AV Mute
When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.
Auto Power Off
To help save energy, this feature automatically turns off the projector after a set period of time, if it is not being used.
TECHNICAL SPECIFICATIONS
Aspect Ratio
16:10
Audio
10W speaker
Brightness
3,800 lumens
Compatible Aspect Ratio
16:10 (native), 16:9 and auto compatible
Connections
1 x HDMI v1.4a, 1 x VGA, 1 x composite, 1 x audio-in, 1 x USB-A (5v / 1.0 amp), 1 x VGA, 1 x audio, 1 x RS232
Contrast Ratio
22,000:1
Display Technology
Texas Instruments 0.65” WXGA DMD
Displayable Colors
1.07 billion
Keystone Correction
± 40° Vertical
Light Source Type
203W
Light Source Life
15,000/12,000/10,000/6,000 (Eco+/Dynamic/Eco/Bright)
Lens Shift
None
Maximum Resolution
WUXGA (1920 x 1200)
Native Resolution
WXGA (1280 x 800)
Noise Level
27dB
Offset
115% ± 5%
On-Screen Display
Complete on-screen menu adjustments in 26 languages
Operating Temperature
Sea Level to 10,000 feet (@73°F); must manually switch to high-altitude mode at 5,000 feet & above
Power Consumption
230W (Bright) / 190W (Eco)
Power Supply
AC input 100-240V, 50-60Hz, auto-switching
Projection Distance
3.9′ – 45.9′ (without zoom)
Projection Lens
F=2.41~2.53, F=21.85~24 mm
Projection Screen Size
29.7″ – 300.7″
Remote Control
IR remote control
Throw Ratio
1.55 – 1.73:1
Uniformity
75%
Zoom Type
1.1x Manual
COMPATIBILITY SPECIFICATIONS
3D Compatibility
Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer Compatibility
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac
Horizontal Scan Rate
15.3 – 91.1kHz
RoHS
Compliant
Vertical Scan Rate
50-85 Hz (120Hz for 3D feature projector)
Video Compatiblity
HDTV (720p, 1080i/p), SDTV (480i/p, 576i/p)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D)
12.4″ x 3.9″ x 9.6″
Security
Security bar, Kensington lock, password protection, keypad lock
Weight
6.7 lbs.
OTHER
Optional Accessories
DLP Link™ 3D glasses, ceiling mount
Standard Accessories
AC power cable, remote control, batteries, quick start guide, CD user manual
UPC
796435 44 249 1
Warranty Info
1-Year parts and labor limited warranty on the projector, 90 days lamp warranty
