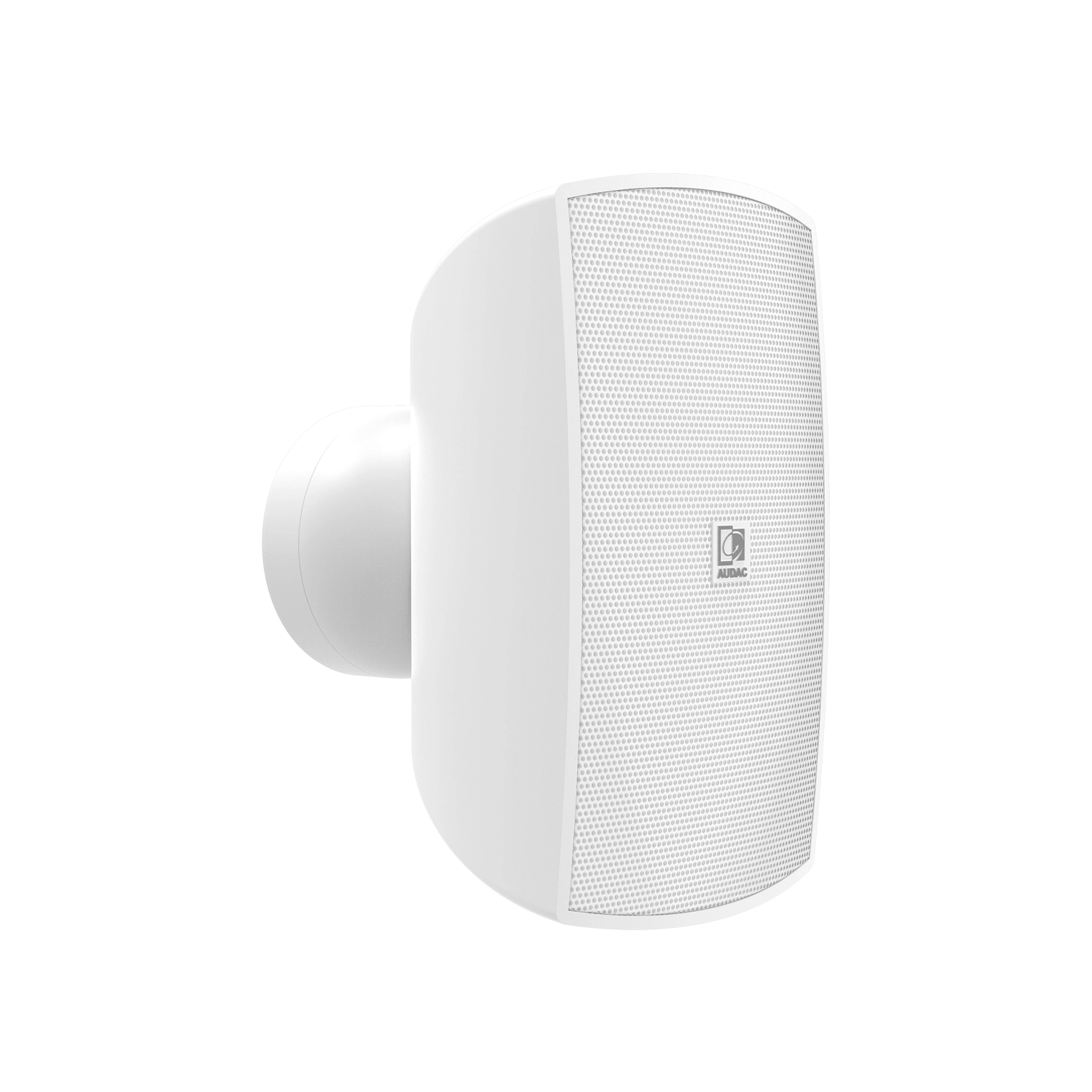

White ATEO4M In & outdoor surface mount loudspeaker with CleverMount+™

 In & outdoor surface mount loudspeaker with CleverMount+™



Unmatched sonic brilliance
Ultra-flat frequency response
Weatherproof – IP66 rating
720 Hours salt spray test
Marine grade build quality & UV resistant
Hydrophobic cloth behind aluminum grill
Save up to 50% installation time thanks to CleverMount™+
External power tap selection
Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
No wires or bracket visible from the back
Extremely firm fixation from front, allowing swift and accurate inclination
Optional mounts for inclination angle or light track mounting

The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO4M is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.
With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.
All ATEOxM series speakers are available in black (/B) or white (/W).

Close





Marine grade build quality
IP66 rated – all-weather resistant

An optimized loudspeaker design with an aluminum grill with hydrophobic mesh, to achieve an IP66 rating. Thanks to its elegant ABS housing, ATEOxM is also 720-hour salt spray certified and UV resistant.

Adjust and tweak to your needs
External power tap selection
Need to tweak the loudspeaker settings after installation? No problem, the ATEOxM has an integrated external power tap selector hidden on the rear. Easy and quick access in seconds!

Innovative CleverMount+™
Save up to 50% on installation time

Thanks to the patented CleverMount+™ mounting technology these loudspeakers have the advantage of making the speaker cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. A safe installation of the loudspeaker is acquired thanks to the separate bracket base.

Great installer convenience
WAGO connections

These design loudspeakers come with official WAGO connectors for the perfect high-quality and reliable electrical installation. WAGO connectors allow up to 4.0 mm2 cable section. Great installer convenience is provided with the WAGO spring cage terminals, no additional tools are needed!

Technical specifications

Available models

ATEO4M/B
 Black version – 8Ω and 100V

ATEO4M/W
 White version – 8Ω and 100V

ATEO4DM/B
 Black version – 16Ω

ATEO4DM/W
 White version – 16Ω

System specifications

Speaker type
Full range

Peak power handling
140 W

Program power handling
70 W

Continuous power (AES)
35 W

Impedance
8 Ω (ATEO4M)


16 Ω (ATEO4DM)

Incline angle
Left
30°


Right
30°


Bottom
30°


Top
5°

Sensitivity (1W/1m)
86 dB

Sound Pressure (Max. W/1m)
@ 8 Ω
101 dB


@ 100 V
100 dB

Frequency
Response (± 3 dB)
100 Hz – 20 kHz


Range (-10 dB)
65 Hz – 20 kHz

Dispersion
Horizontal
130°


Vertical
130°

Connectors
2 x WAGO terminal block connections

Drivers
1” Dome tweeter


4” MF / LF Woofer

Line Transformer Tappings
1
208 Ω – 100 V / Not used – 70 V / 24 W


2
417 Ω – 100 V / 24 W – 70 V / 12 W


3
833 Ω – 100 V / 12 W – 70 V / 6 W


4
1667 Ω – 100 V / 6 W – 70 V / 3 W

Ingress Protection rating
IP66

Product Features

Dimensions
136 x 244 x 153 mm (W x H x D)

Weight
2.050 kg

Operating temperature
-20 °C ~ 60 °C

Accessories
Included
Allen-key wrench

Mounting
Weatherproof CleverMount+™

Construction
ABS

Front finish
Aluminium grill with hydrophobic cloth

Colours
Black (RAL9005) (ATEO4M/B, ATEO4DM/B)


White (RAL9003) (ATEO4M/W, ATEO4DM/W)

Recommended applications


Bars & Restaurants


Corporate


Education


Hotels


Retail


Residential


Clubs
