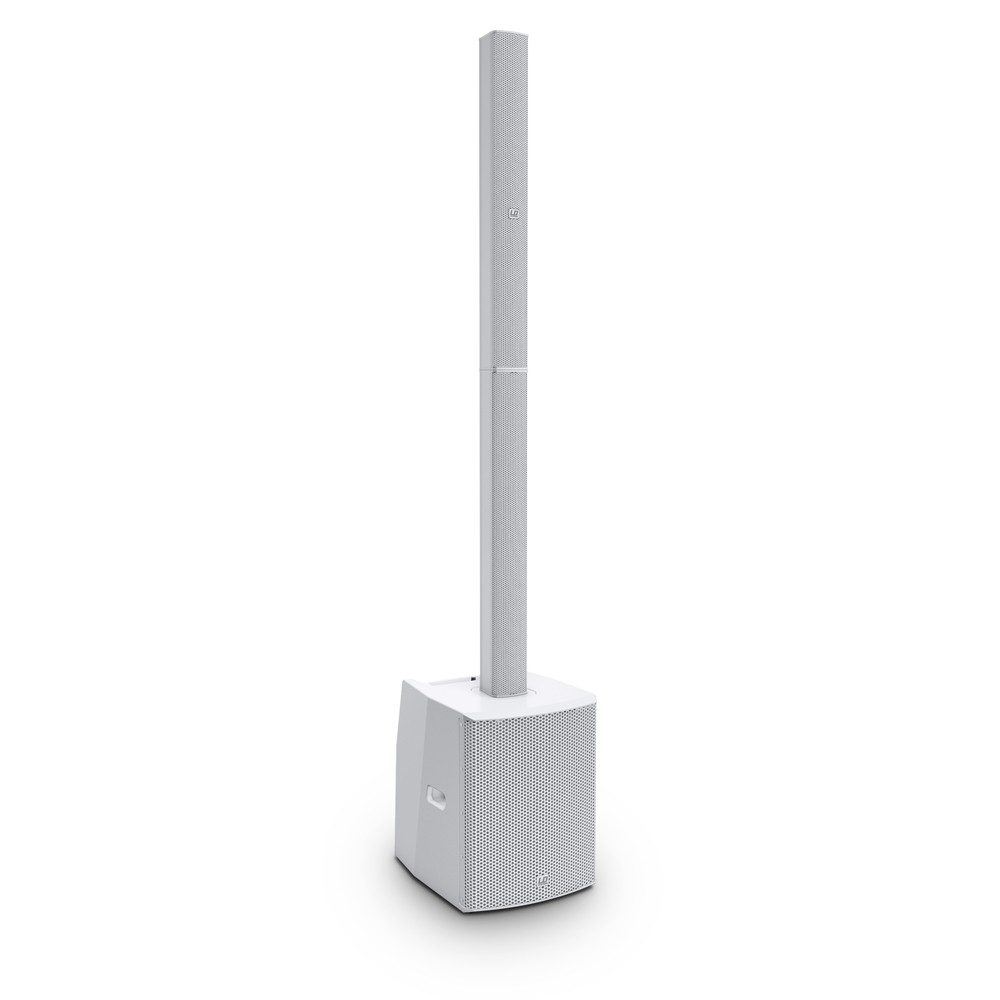

White MAUI 28 G2 Compact column PA system active with built-in mixer and Bluetooth

$2,799.00 Inc GST

White MAUI 28 G2 Compact column PA system active with built-in mixer and Bluetooth

Stock on Order or Currently Unavailable Contact for ETA

Notify me when the item is back in stock.

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

  • All-in-one column speaker for PA and monitor applications
  • 2,000 watts peak Class-D system power offer high performance with a low weight
  • Powerful bass reproduction with 2 x 8″ woofers
  • Balanced mids thanks to the 16 x 3″ full-range speakers
  • Precise and silky highs with 2 x 1″ high-frequency drivers
  • Increased range and wider coverage through the array arrangement
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
  • Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
  • Two-piece column for compact transport
  • Secure plug-and-play connection thanks to the wireless multi-pin mechanism
  • A wide range of application options through dismountable columns
  • Easy operation with presets for mono or stereo configuration
  • Extensive and smart accessories for installation and transport

A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other – and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8″ woofers, sixteen 3″ full-range speakers and two 1″ neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion – Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.



Specifications

Product type PA Complete Systems
Type active
Colour White
Max. SPL (peak) 126 dB
Frequency response 45 – 20000 Hz
Dispersion (H x V) 120° x 20 °
Overall height 2059 mm
Weight 30,9 kg
Woofer characteristics
Low/mid driver dimensions 2 x 8 “
Woofer size 2 x 203 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 “
Woofer voice coil (mm) 50.8 mm
Cabinet construction vented
Cabinet material 15 mm Plywood
Cabinet surface texture paint
Subwoofer width 370 mm
Subwoofer height 484 mm
Subwoofer depth 480 mm
Subwoofer weight 19.7 kg
Mid/Hi System
Midrange size 16 x 3 “
Midrange size 16 x 76.2 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 1 “
Midrange voice coil 25.4 mm
Horn Waveguide
Tweeter dimensions 2 x 1 “
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 “
Tweeter voice coil (mm) 25.4 mm
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Closed
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface HD coating
Mid/Hi system width 96 mm
Mid/Hi system height 780 / 795 mm
Mid/Hi system depth 104 mm
Mid/Hi system weight 5.6 / 5.6 kg
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 1000 W
Amplifier output system (peak) 2000 W
Protection circuits DC protection , Multiband limiter , short circuit , thermal overload
Cooling Convection
Operating Temperature 0 – 40 °C
Humidity Range 10% to 80%, (non-condensing)
Controls Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level
Indicators Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo
Power connector IEC power cable (included)
Operating voltage 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching)
Power consumption Off / On / Max. 0/11/600 W
Line inputs 2 x stereo
Line input connectors RCA , XLR/6.3 mm jack
Line outputs 2 (1x System Out, 1x Sub Out)
Line output connectors XLR
Mic inputs 1
Mic inputs XLR/6.3 mm jack
MP3 inputs 1
MP3 input connectors 3.5 mm jack
Hi-Z inputs 1
Hi-Z input connectors 6.3 mm jack
Loudspeaker outputs 1
Speaker output connections Custom-made multipin
DSP characteristics
Bit depth AD/DA converter 24 bit
Internal sampling frequency 48 kHz
Signal/noise ratio 100 dB

Brand

LD Systems
