Wireless System with SLXD1 Bodypack Transmitter

The SLXD14 features the WA305 premium instrument cable and the SLXD1 transmitter, the SLXD14 provides transparent and digital audio and rock-solid RF stability for lecture halls and live performances.

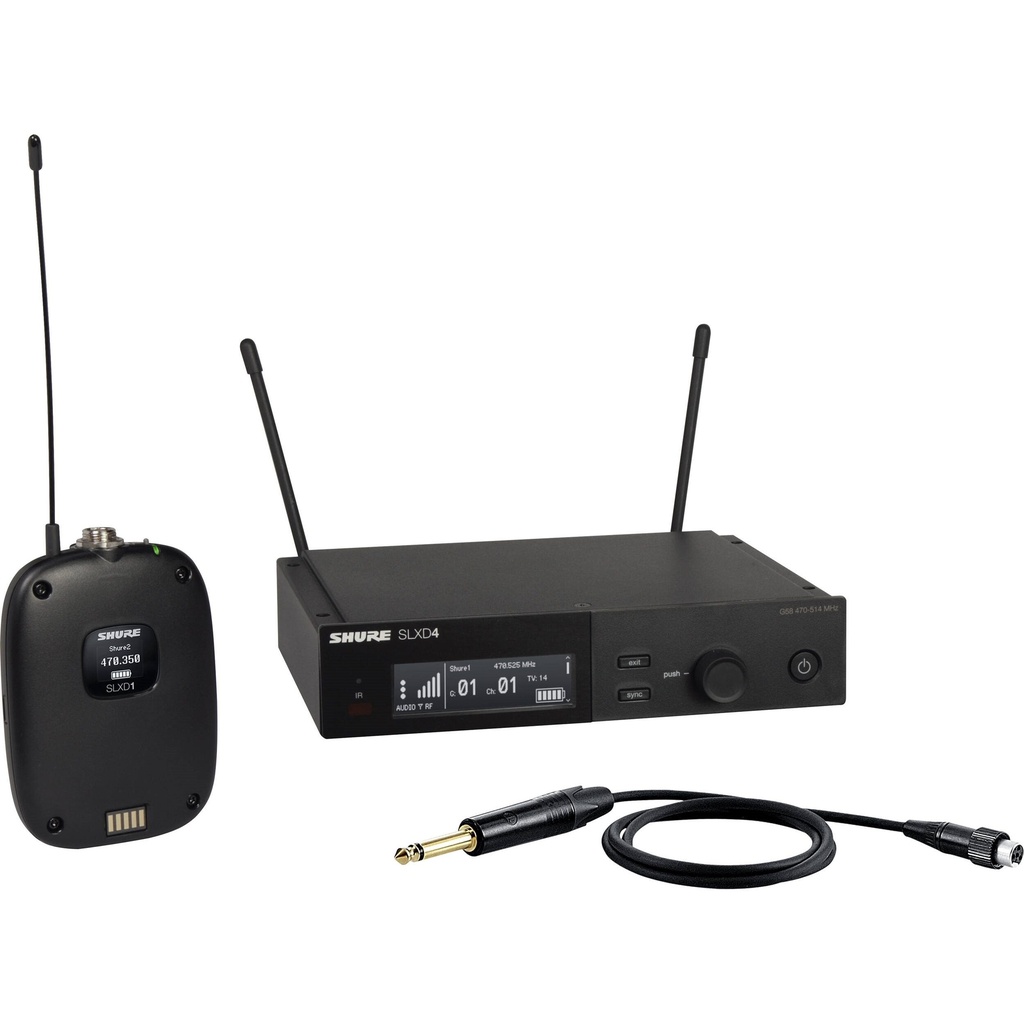

The SLXD14 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WA305 Premium Instrument Cable with antenna and rackmount accessories and 2 AA batteries.
Includes

SLXD4 Single Channel Receiver
SLXD1 Bodypack Transmitter
WA305 Premium Guitar/Bass Cable with locking thread
(2) AA batteries
(2) 1/4 wave antennas
(2) bulkhead adapters
(2) 22″ BNC cables
power supply
black vinyl zippered bag
rack mount bracket (short)
rack mount bracket (long)
linking plate
hardware kit
(4) adhesive foot

Features

SLXD4 Single Channel Receiver

Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
Interchangeable microphone capsules
Rugged metal construction

SLXD1 Bodypack Transmitter

Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
Operating range of 100 m (300 ft.)
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
Ergonomic and durable plastic construction

SLXD1 Specifications

Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
Weight: 3.1 oz (89 g)
Housing: PC/ABS
AUDIO INPUT

Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MΩ
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN): –118 dBV

RF OUTPUT

Antenna Type: 1/4 Wave
Occupied Bandwidth:
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW (varies by region)

SLXD4 Specifications

Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
Weight: 1.8 lb (816 g) without antennas
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 600 mA; Supplied by external power supply (tip positive)
RF INPUT

Spurious Rejection: >75 dB; Typical
Connector Type: BNC
Impedance: 50 Ω

AUDIO OUTPUT

Gain Adjustment Range: –18 to +42 dB in 1 dB steps
Configuration:

1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio –)

Impedance:

1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
XLR (line): 400 Ω (200 Ω Unbalanced)
XLR (mic): 150 Ω

Full Scale Output:

1/4″ (6.35 mm): +15 dBV differentially (+9 dBV single)
XLR (LINE setting): +15 dBV
XLR (MIC setting): –15 dBV

Mic/Line Switch: 30 dB pad
Phantom Power Protection:

1/4″ (6.35 mm): Yes
XLR: Yes

NETWORKING

Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
