XSW-D VOCAL SET

Vocal set with (1) XS1 cardioid dynamic mic, (1) XSW-D XLR FEMALE TX, (1) XSW-D XLR MALE RX, (1) mic clamp and (1) USB charging cable
XSW-D VOCAL SET
One-touch ease-of-use wireless audio set that utilises a digital transmission to seamlessly link audio sources. Equipped with an XS 1 microphone, this elegant solution makes wireless vocals easier than ever before while maintaining a reliable connexion.

FEATURES
– One touch ease-of-use
– 2.4 GHz digital transmission for worldwide operation
– 75m range (250ft) in optimal conditions
– Up to 5 hours battery life on a single charge
– Switch between multiple transmitters linked to one receiver
– Configure any combination of transmitters and receivers
– Mute from either transmitter or receiver

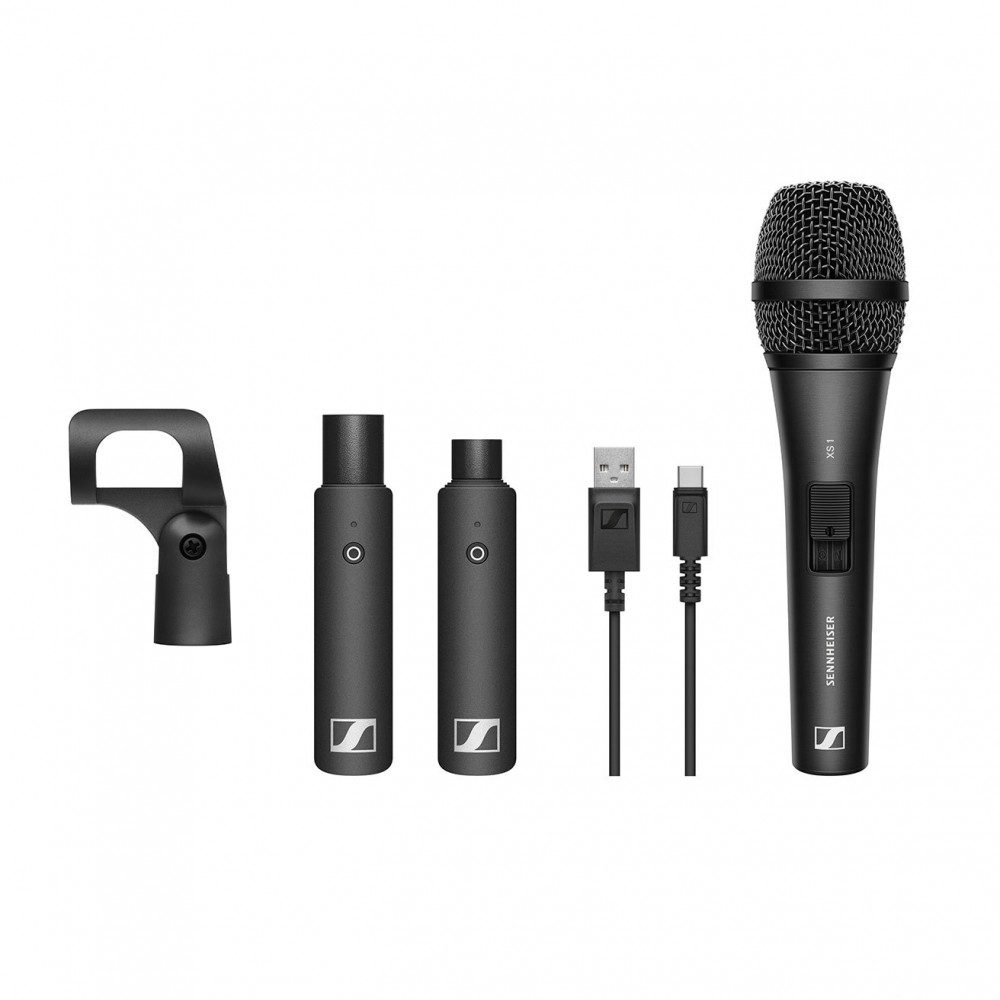

WHAT’S IN THE BOX
– XSW-D XLR female transmitter
– XSW-D XLR male receiver
– XS 1 cardioid dynamic vocal microphone
– Mic clip
– USB-A to USB-C charging cable

SPECIFICATIONS
Dimensions:
– XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
– XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
– XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
– XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
– XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
– XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
– XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion: < 0.1 %
Charging time: typ. 3 h
Audio output: max. 12 dBu
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio: ≥ 106 dB
Operating time: up to 5 h
Modulation: GFSK with TDMA
Battery Specification: Li-Ion
Capacity: 850 mAh
Codecs: aptX® Live
Frequency range: 2,400 – 2,483.5MHz
Max. Input voltage: typ. 5.0 V
Transmission power: max. 10 mW
Voltage: 3.7 V
Operating relative humidity: 95 % (non-condensing)
Latency: < 4 ms
Temperature Range: 0 °C – 60 °C (32 °F – 140 °F)
Audio frequency response:
– 3.5 mm Jack/XLR: 80 – 18,000 Hz
– 6.3 mm Jack: 10 – 18,000 Hz
