One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8”) transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.
Key Features
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
-
- Dimensions
-
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mmXSW-D MINI JACK TX: approx. 86 x 24 x 28 mmXSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mmXSW-D XLR MALE RX: approx. 109 x 24 x 28 mmXSW-D MINI JACK RX: approx. 86 x 24 x 28 mmXSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mmXSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
-
- THD, total harmonic distortion
-
< 0.1 %
-
- Charging time
-
typ. 3 h
-
- Audio output
-
max. 12 dBu
-
- Operating temperature
-
-10 °C to +55 °C (14 °F to 131 °F)
-
- Signal-to-noise ratio
-
≥ 106 dB
-
- Operating time
-
up to 5 h
-
- Modulation
-
GFSK with TDMA
-
- Battery Specification
-
Li-Ion
-
- Capacity
-
850 mAh
-
- Codecs
-
aptX® Live
-
- Frequency range
-
2,400 – 2,483.5MHz
-
- Max. Input voltage
-
typ. 5.0 V
-
- Transmission power
-
max. 10 mW
-
- Voltage
-
3.7 V
-
- Operating relative humidity
-
95 % (non-condensing)
-
- Latency
-
< 4 ms
-
- Temperature Range
-
0 °C – 60 °C (32 °F – 140 °F)
-
- Audio frequency response
-
3.5 mm Jack/XLR: 80 – 18,000 Hz6.3 mm Jack: 10 – 18,000 Hz

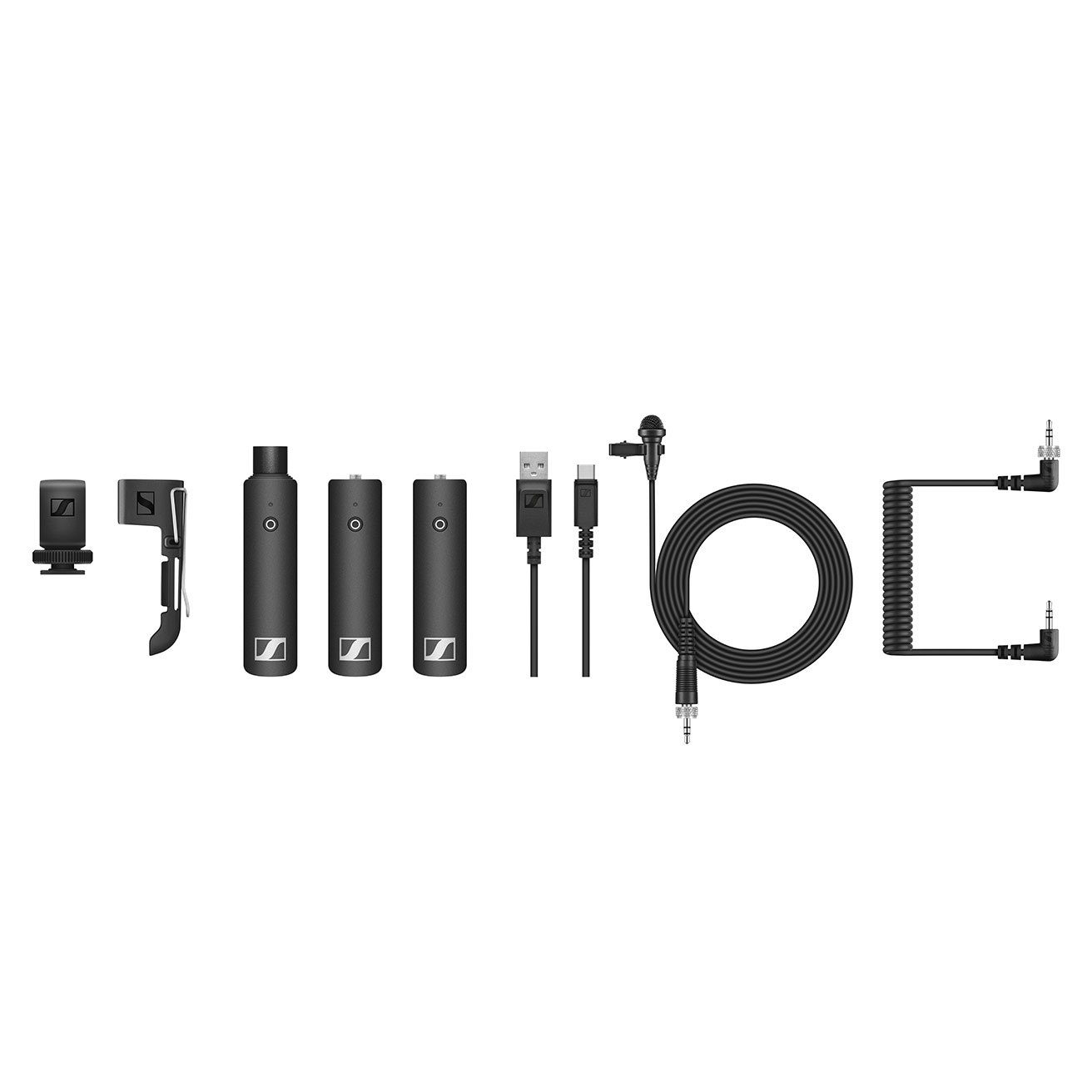

What’s in the Box
- XSW-D 3.5mm (1/8”) transmitter
- XSW-D XLR Female transmitter
- XSW-D 3.5mm (1/8”) receiver
- ME2-II clip-on lavalier mic
- 3.5mm (1/8″) coiled cable
- Cold shoe mount
- Belt clip
- USB-A to USB-C charging cable
