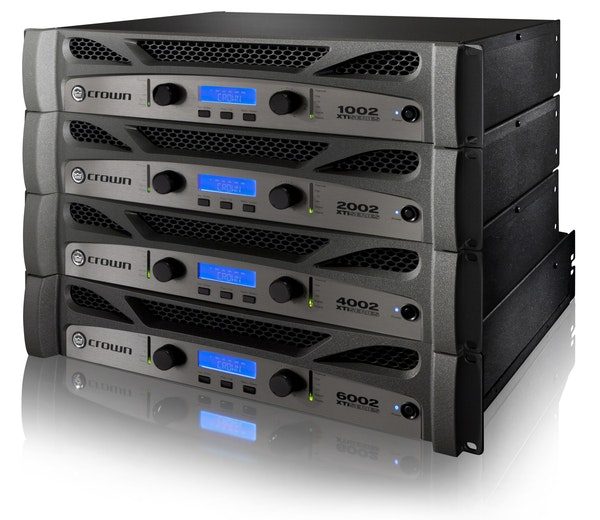

XTI 2 Series 2100W @ 4 OHMS Amplifier

There’s no debate – when you choose Crown’s XTi 2 Series, you’re choosing one of the most powerful and innovative amplifiers on the market today. That’s because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
Features
– Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
– Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
– 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
– New system monitoring provides software visibility of AC line voltage and power supply temperature
– Integrated cast-aluminum handles for easy handling and enhanced durability
– Locking power cord clip provides a secure connection between the amplifier and power cord
– Updated HiQnet Band Manager and System Architect control software
– Increased number of presets to a total of 30; 29 of which are user definable

PERFORMANCE Sensitivity (for full rated power at 4 ohms): 1.4 Vrms Frequency Response (at 1 watt, 20 Hz to 20 kHz): +0 dB, –1 dB Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms): XTi 1002/2002/4002: 100 dB (A weighted), XTi 6002: 103 dB (A weighted) Total Harmonic Distortion (THD): 500 Crosstalk (below rated power): 20 Hz – 1 kHz: > 70 dB Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced Maximum Input Signal: +22 dBu typical AC Line Voltage and Frequency Configurations: 100VAC, 120VAC, 220-240VAC 50/60Hz AC Line Current (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch): XTi 1002: 6.8A; no more than 38W at idle, XTi 2002: 8.3A; no more than 38W at idle, XTi 4002: 10.5A; no more than 38W at idle, XTi 6002: 15.3A; no more than 180W at idle Operating Temperature: 0o C to 40o C at 95% relative humidity (non-condensing) INDICATORS Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs). –10 Indicator: Green LED flashes when output signal exceeds –10 dB below clip. –20 Indicator: Green LED flashes when output signal level exceeds –20 dB below clip. Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio. Clip Indicator: Red LED, one per channel,turns on at the threshold of audible distortion. Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditions. Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power. CONTROLS Level: Two front-panel rotary level controls, one for each channel. Power Switch: On/Off switch applies AC power to the amplifier. Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout. LCD Screen: Backlit liquid crystal display that shows preset and processing status. INTEGRATED PROCESSING Input EQ: 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed. Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control. Output EQ: 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed. Delay: For signal alignment of driver; 50 ms of total delay. SubHarmonic Synth: Takes the low-frequency content ofthe input signal and “synthesizes” a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type. Peakx ™ Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times. Presets: 30 total presets, 29 of which are user-definable. INPUT/OUTPUT CONNECTORS Input Connectors: XLR, one per channel) Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel. Output Connectors: Two Neutrik® Speakon® NL4MP output connectors. Channel-1 Speakon® is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon® connectors). HiQnet™ USB Connector: Type B, connects to HiQnet™ network. CONSTRUCTION Chassis: Steel Front Panel: Cast-aluminum Cooling: Proportional speed fan with front-to-rear airflow. Dimensions: XTi 1002/2002/4002: 19” (W) x 3.5” (H) x 12.25” (D), XTi 6002: 19” (W) x 3.5” (H) x 16.2” (D) Net Weight: XTi 1002/2002/4002: 18.5 lbs (8.4kg), XTi 6002: 24.0 lbs (10.9kg) Shipping Weight: XTi 1002/2002/4002: 21.5 lbs (9.8kg), XTi 6002: 30.0 lbs (13.6kg)
