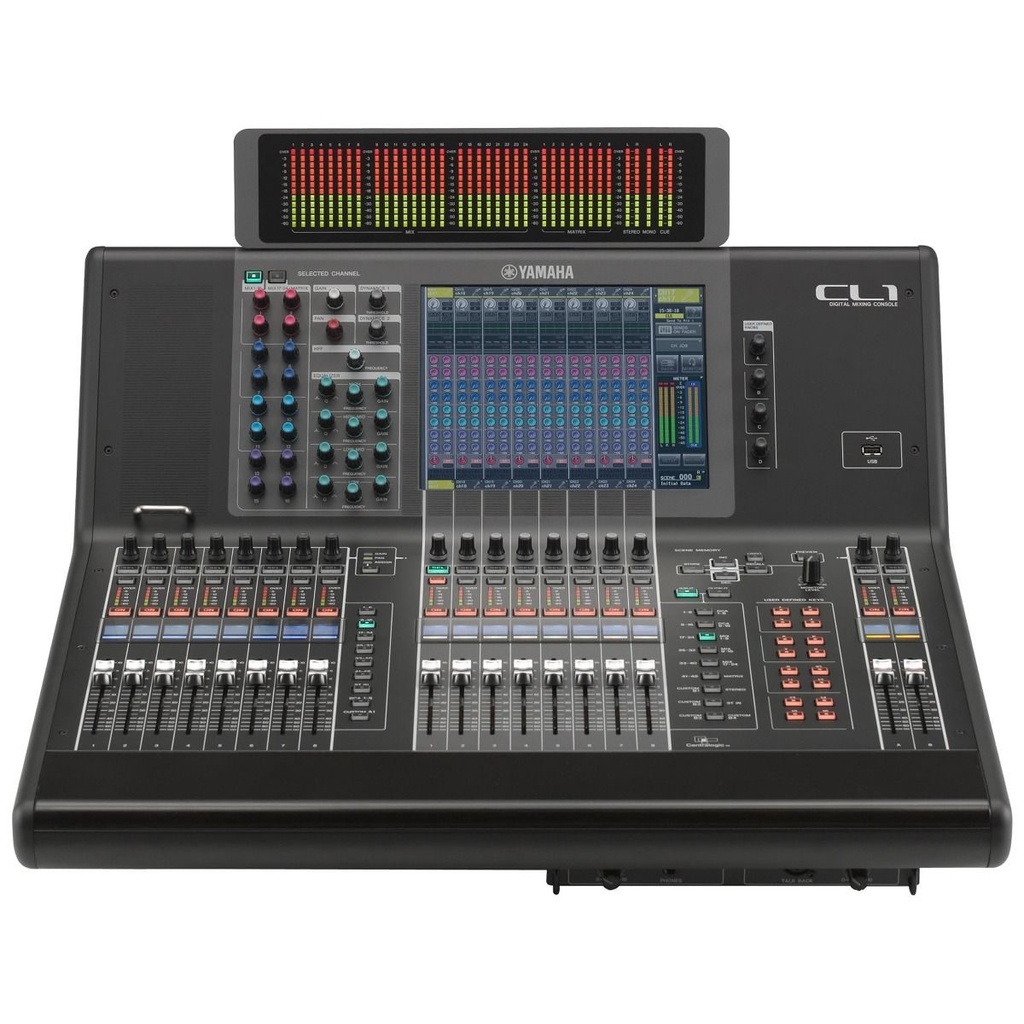

The CL-series represents a scalable, versatile network mixing system for live-sound, theatre, broadcast and more. All CL-series mixing consoles offer 24 Mix, 8 Matrix, Stereo and Mono busses plus dedicated Cue and Monitor busses.
Processing packages include Dan Dugan Sound Design automatic microphone mixing and Neve Portico VCM effects. Broadcast functionality includes 5.1 mixing and monitoring, mix-minus and mono channel handling as well as support for many third-party broadcast automation systems.
CL-series consoles can accept 3x MY-series expansion cards. A Dante interface is built-in as standard for connection to R-series remote i/o interfaces as well as any other Dante-equipped device.
Editable channel name displays above each fader automatically switch to a larger character size for short names, and show pan and fader values as well. Below each channel name display is a color bar that illuminates in any of eight selectable colors.
Just about any of the console’s variable parameters can be assigned to the four User Defined Knobs for direct, instant access!
CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.
Key Features:
8-Fader Left section, 8-Fader Centralogic section, 2-Fader Master section
Meter Bridge optional extra (SSP $1,600.00)
24 Mixes / 8 Matrices
16 DCA’s / 8 Mute Groups
Input Delay
Output Port Delay
8 Premium Racks
8 Effect Racks
16 GEQ Racks
Channel PEQ / Dynamics
300 Scene Memories
16 User Defined Keys
4 User Defined Knobs
Fader Bank
Inbuilt Dante
USB Memory Recorder
Dante Virtual Soundcard / Nuendo Live
GPI
CL Editor
CL StageMix
Colsole File Converter
3 MY Card Slots
Video
Specifications
Specifications
Brand
Yamaha
Gross Shipping Weight – Volumetric (kgs)
56.2500
Rack Mountable
No
Recording
Multi-track, Stereo
Effects
Yes
Connectivity
USB, Ethernet
Protocol
Dante
Expandability
Dante Card
Onboard Channel Inputs
8
Onboard Outputs
8
Max Channel Mixing Capability
48 Mono + 8 Stereo
Fader Configuration
8 + 8 + 2
Manufacturer Model Number
CL1
