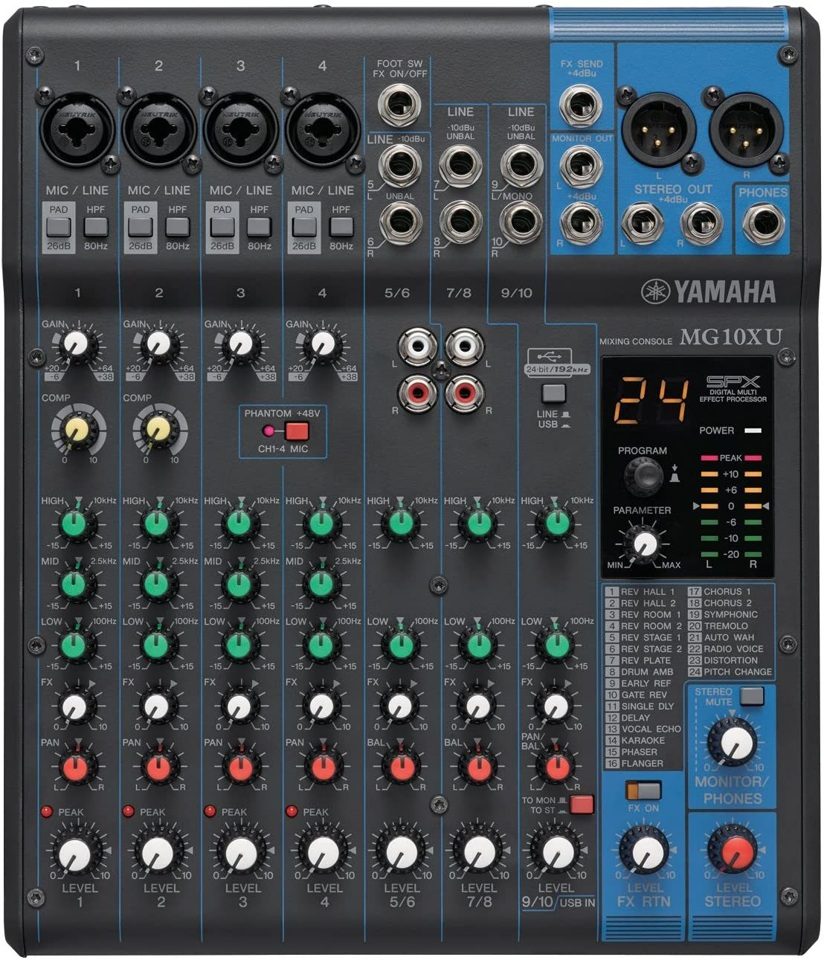

The MG10XU from Yamaha is a compact ten-input mixer with built-in effects for performances, lectures, recordings and similar applications. The mixer features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4″ line inputs with stereo level controls. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.
Each of the four mic/line inputs is equipped with a 3-band AEQ, pan control and a high pass filter. The four D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers.
The MG10XU mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4″ headphone output with level control for personal monitoring, as well as additional TRS 1/4″ stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Each of the MG10XU’s channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix.
Key Features
- USB works with PC, Mac and the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software (download)
- Three stereo channels made up of six 1/4″ line inputs (two stereo channels also have RCA inputs)
- 3-band AEQ on channels 1-4 and 2-band AEQ on channels 5-10
- Pan control on each channel
- FX level on each channel also feeds to TRS FX send for routing to devices such as external FX units or monitor mixers
- One-knob compressor on channels 1 & 2 to smooth out the dynamics of vocals and instruments to help them sit better in your mix
- Optional BMS10A microphone stand adapter (sold separately) allows mounting
Specifications
| Built-in Effects | SPX algorithm: 24 programme |
| Phantom Power | +48 V switchable, channels 1 – 4 |
| Digital I/O | USB: USB Audio Class 2.0 compliant Sampling frequency: max 192 kHz Bit depth: 24-bit |
| Input Channels | 4 x mono [mic/line] 3 x stereo [line] |
| Output Channels | 2 x stereo out 1 x monitor out 1 x headphone out 1 x FX out |
| Bus | Stereo: 1 AUX[FX]: 1 |
| Pad | 26 dB (mono channels) |
| HPF | 80 Hz, 12 dB/oct (mono channels) |
| Compressor | Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec |
| Equaliser | AEQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving AEQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking AEQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| LED | Peak LED turns on when post AEQ signal reaches 3 dB below clipping |
| Level Metering | 2 x 7-segment LED metre [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Total Harmonic Distortion | 0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min |
| Frequency Response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: min |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) |
| Crosstalk | -83 dB |
| Power Requirement | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power Consumption | 22.9 W |
| Operating temperature | 0 to +40˚C |
| Dimensions | 244 x 71 x 294 mm |
| Nett Weight | 2.1 kg |
