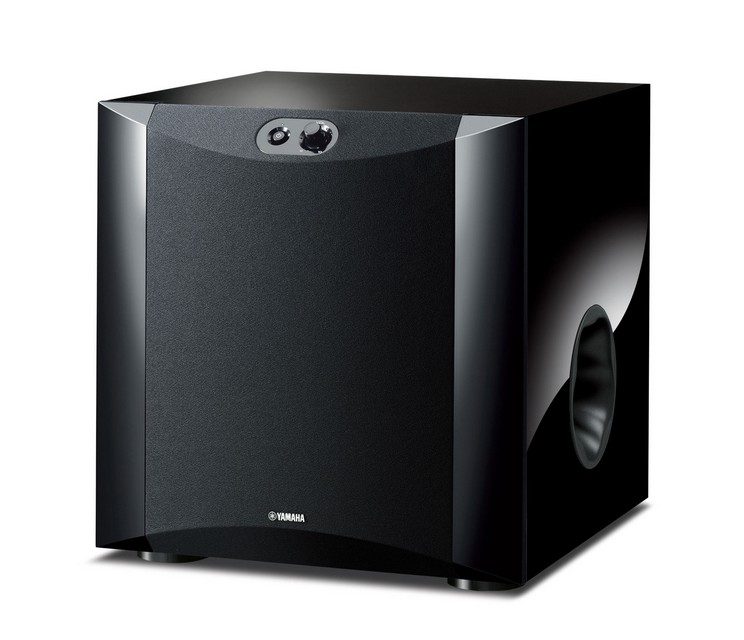

Yamaha NS-SW300 Subwoofer


A design combining superior operability and beauty. And introducing a new technology, Twisted Flare Port, for clear and tight bass. A subwoofer that will match a wide range of speakers and interiors.

PWM digital drive high efficiency amplifier and dual feedback circuit
New Twisted Flare Port contributes to clear and tight bass
Advanced YST II (Yamaha Active Servo Technology II)
25 cm (10”) cone woofer with square wire voice coil
Beautiful design will match a wide range of speakers and interiors
Front control panel for easy control
System control and Auto standby


NS-SW300


NS-SW300

Subwoofer

Driver
25 cm (10”) cone

Output Power
250 W

Frequency Response
20–160 Hz

Advanced YST
Yes

High-Efficiency Power Amplifier
Yes

Twisted Flare Port
Yes

BASS (Bass Action Selector System)
Yes

Auto Standby
Yes

Standby Power Consumption
0.3 W

System Connector
Yes

Dimensions (W x H x D)
350 x 366 x 420 mm; 13-3/4” x 14-3/8” x 16-1/2”

Weight
18 kg; 39.7 lbs.

New Twisted Flare Port Produces Clear and Tight Bass
The all-new Twisted Flare Port takes advantage of extensive subwoofer development experience. The flared, gently twisting shape diffuses the vortex of air generated around the edge of the port, creating a smooth flow of air. This reduces extraneous noise not present in the original input signal and provides clear, accurate low frequency reproduction. From special effect sounds in movies to the atmosphere of a live venue, you hear bass that is clear, tight and realistic.

Twisted Flare Port Movie

PWM Digital Drive High Efficiency Amplifier and Dual Feedback Circuit

The built-in power amplifier delivers stable power output of 250 W with high efficiency while minimizing power consumption and heat production. It does not require an output filter coil, resulting in extremely low noise and distortion. High speed transient response is also excellent. The dual feedback circuit reduces distortion by applying feedback twice, resulting in higher sound clarity.

Advanced YST II for Awesome Deep Bass

Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than the previous version. Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity. This means more stable and accurate low range response, not to mention higher sound quality.

25 cm (10”) Cone Woofer Unit with Square Wire

A 25 cm (10”) large woofer unit is used in a front-firing configuration. The voice coil of the driver unit employs square wire with a wide surface area that can be wound more densely to obtain higher magnetic flux density. It delivers high drive force, permitting tight and deep bass reproduction.

Beautiful Design that Will Match a Wide Range of Speakers and Interiors

In addition to the beautifully round shape of the front surface, panels on both sides to create an accent, and a neat appearance, this subwoofer lets you imagine the strength of sound and matches a wide range of speaker systems. Numerous color variations are provided, so you can select one matched to your interior.

Front Control Panel for Easy Operation

The power and volume buttons, which are used most often, are laid out on the front surface of the unit for ease of access. It is inclined at an angle of 45°, making it easy to use even when placed on the floor. An LED indicator is above the power button, so even in a dimly lit room it’s easy to tell if it’s on or off.

System Control and Auto Standby

The system control terminal can be linked to the amplifier power to automatically turn the power on and off. There is also an Auto Standby Function: If no signal is input from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically. This limits the wasteful consumption of electricity.

Other Notable Features

• Low standby power consumption of 0.3W
• Auto Standby switch / Sensitivity selector (high, low and off)
• Phase control (normal or reverse)
• B.A.S.S. switch
