Zigen ZIG-HAVEX HDbaseT HDMI Extender Kit

Zigen ZIG-HAVEX Overview

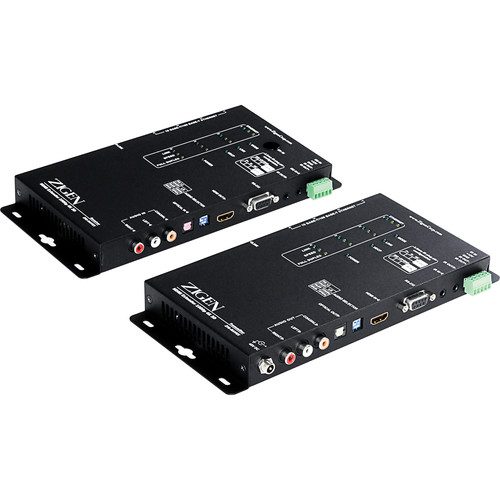

The ZIG-HAVEX HDbaseT HDMI Extender Kit from Zigen is comprised of a local transmitter and a remote receiver unit and is used for long distance transmission of HDMI video, embedded audio, four-port POE Ethernet, back channel analog or digital audio, and bi-directional control signals over a single CAT 5/6/7 type cable. The ZIG-HAVEX can be used as a point-to-point solution or integrated with matrix routing equipment to extend inputs or outputs to remote locations. This transmitter and receiver kit supports simultaneous transmission of digital or analog audio back channel, full duplex 10/100 Ethernet, and bi-directional RS-232 and IR signals from a control system providing remote control to source equipment or displays. In addition, the extender comes equipped with dual voltage IR receiver and emitter ports for screw or 3.5mm input/output.

HDBaseT technology

Extends HDMI / Ethernet and ARS signals up to 328′ by using a single cat6/7 cable or up to 260′ using a cat5 cable

Selectable audio return channel (ARC) for digital or analog audio

Compliant with HDMITM 1.4 with 3D function, HDCP, and DVI-D standards

Built-in full duplex 10 / 100 four-port POE Ethernet switch with switching capabilities on each unit (IEEE802.3, IEEE802.3u, IEEE802.3X compliant)

Supports HDMI 1.2, 1.3, and 1.4 with 48-bit deep color

4k / 2k, 30 Hz, 24 bpp

4k / 2k, 60 Hz, 24 bpp with 4:2:0 pixel format

Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920×1200, 2k, and 4k

Supports uncompressed PCM two-channel, 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and more

Supports all frequency band IR control (bi-directional transfer)

Supports dual voltage IR 5V / 12V with phoenix connector and 3.5mm

Supports bi-directional RS-232 transfer

Supports CEC pass-through
