Expand Your Recording

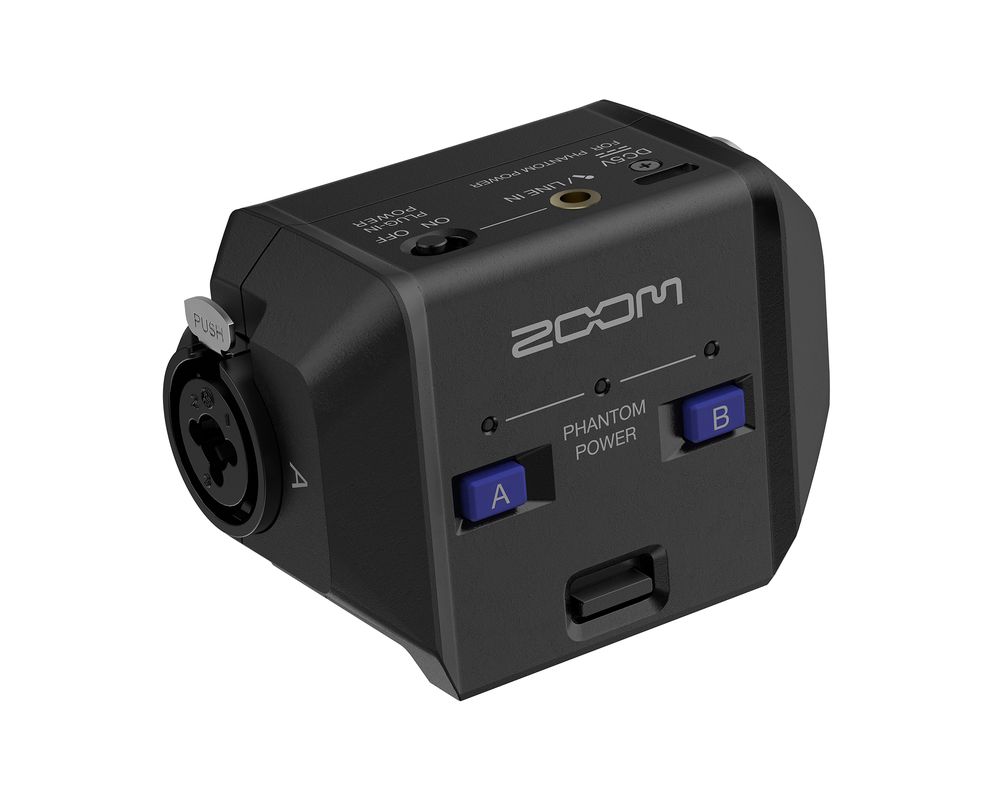

The EXH-6e features 2 XLR/TRS inputs and a 3.5mm stereo mic/line input for an added level of flexibility in your recording. Plug in microphones, instruments, mixers, and more.
Input Types
The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.
Phantom Power
The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.
Capsule System 3.0
The EXH-6e utilizes Zoom’s Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.
Specs
| INPUT A/B jacks | Connectors | XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|---|
| Input gain: | adjustment unnecessary | |
| Input impedance | 3.8 kΩ or higher (MIC) / 39 kΩ or higher (LINE) | |
| Maximum input level | −4 dBu (MIC) / +16 dBu (LINE) | |
| Phantom power | +48 V, 10 mA maximum per channel | |
| Equivalent input noise | −120 dBu or less (IHF-A) at 150Ω input | |
| MIC/LINE jack | Connector | stereo mini jack |
| Input gain | adjustment unnecessary | |
| Input impedance | 2 kΩ or higher | |
| Dimensions | 78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H) | |
| Weight | 96 g | |
| Compatible Models | H6essential, H5studio | |
