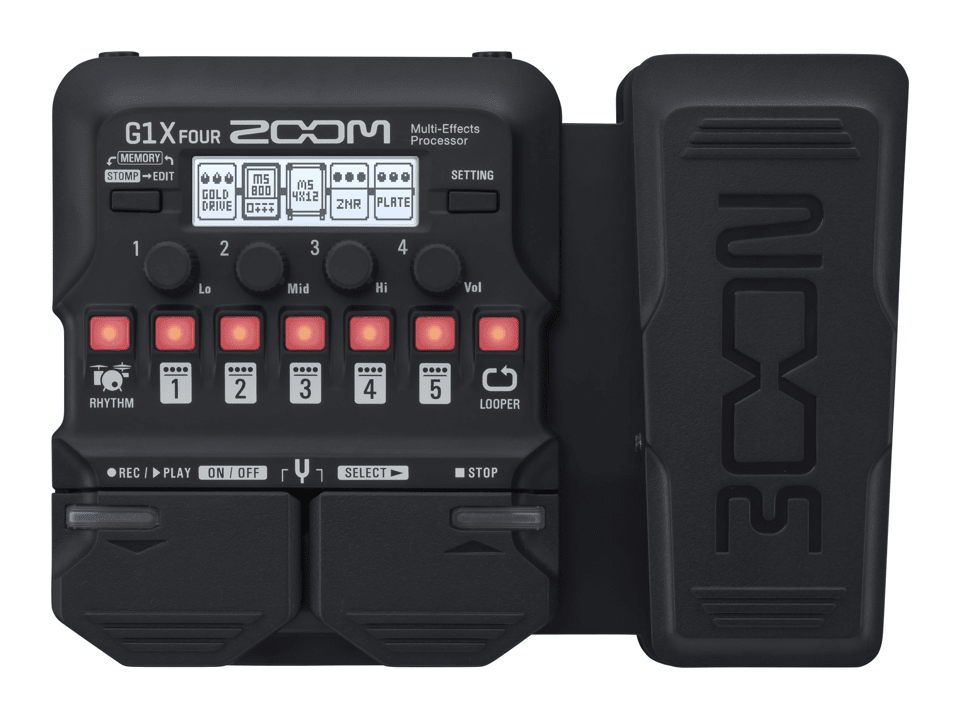

Zoom G1X FOUR Multi-effects Processor with Expression Pedal

Guitar Multi-Effects Pedals

The Zoom G1 FOUR and G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!



X is for Xpression

The G1X FOUR comes with ZOOM’s expression pedal, which provides control over effects such as volume, wah, delay and pitch.

Sounds That Inspire

Both pedals have more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation. (Download a list of pre-loaded effects)
Michael Mazzaraco, Guitarist

Your Favorite Amps& Cabinets

With 13 classic amps and cabinets like Fender, Marshall, Orange and more*,the G1 series brings big stage sound wherever you go.
* 13 amp modeling sounds are based on the following amps. 1. Marshall JCM800 2203, 2. Marshall 1959 SUPER LEAD 100, 3. Fender ’65 Twin Reverb, 4. Fender ’59 Bassman, 5. Fender ’65 Deluxe Reverb, 6. Class A British combo amp, 7. Mesa Boogie Mark I combo amp, 8. Bogner Ecstasy Blue channel, 9. Hiwatt Custom 100, 10. Mesa Boogie Dual Rectifier Orange Channel, 11. Orange Graphic120, 12. Diezel Herbert Channel2, 13. Matchless DC-30.NOTE: Manufacturer names and product names are trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with ZOOM.

You’ll Love Our Free Guitar Lab Software


With ZOOM Guitar Lab, explore an endless world of artist patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

Drums Included!

Play along with 68 great-sounding rhythm patterns in different time signatures, including 4/4, 3/4 and more.

Stay Looped In

The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.

Auto Patch Backup

Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.

Perform Live

Seamlessly switch up your sounds during live shows using either of 2 performance modes.
PRESELECT mode lets you jump from patch to patch without affecting the patch your currently playing.
STOMP mode lets you turn individual effects on and off with the tap of your foot.

Off the Floor

The G1 FOUR/G1X FOUR’s control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.

Power Options

The G1 FOUR/G1X FOUR runs on just four AA batteries. Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power.

The only limitation is your creativity.

Features

● G1 FOUR offers over 60 built-in effects● G1X FOUR offers over 70 built-in effects● 13 amp models for simulating classic rigs● Up to 5 effects can be used simultaneously, chained together in any order● Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times● ZOOM Guitar Lab software for creating, editing and managing effects and patches● 68 built-in rhythm patterns which can be used in conjunction with the Looper● 50 memory locations for storing user-created patches● Auto Save function for automatic saving of all patch parameters● Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings● Input jack accepts standard mono guitar cable (both active and passive instruments supported)● Auxiliary input jack for connection of personal music players● Output jack for connection to amp or headphones● Runs on 4 AA batteries, with alkaline battery life of 18 hours● USB port for firmware updates, power and connection to ZOOM Guitar Lab

What’s inthe Box

Here’s what comes included:

G1 Four or G1X Four Guitar Multi-Effects Processor
Quick Guide
AA Batteries (x4)
Patch List

MEDIA
VIDEO

G1X FOUR: Lead Solo, Backing, Hi Gain, Clean, and Crunch

G1X FOUR: Expression Pedal and Rhythm

G1X FOUR: Guitar Lab software

G1X FOUR: Looper

G1 FOUR: Amp Modeling

G1 FOUR patch example: Grunge Muff

G1 FOUR patch example: Octave Solo

AUDIO







DOWNLOADS

IMAGES

DOCUMENTS

G1 FOUR / G1X FOUR Quick Guide
G1 FOUR / G1X FOUR Operation Manual
G1 FOUR / G1X FOUR Operation Manual (EPUB)
G1 FOUR / G1X FOUR v2.0 Supplementary Manual
G1 FOUR / G1X FOUR Effects List
G1 FOUR Patch List
G1X FOUR Patch List
Guitar Lab Reference Guide
G1 FOUR / G1X FOUR Guide de prise en main (French, PDF)
G1 FOUR / G1X FOUR Mode d’emploi (French, PDF)
G1 FOUR / G1X FOUR Mode d’emploi (French, EPUB)
G1 FOUR / G1X FOUR Kurzanleitung (German, PDF)
G1 FOUR / G1X FOUR Bedienungsanleitung (German, PDF)
G1 FOUR / G1X FOUR Bedienungsanleitung (German, EPUB)
G1 FOUR / G1X FOUR Guida rapida (Italian, PDF)
G1 FOUR / G1X FOUR Manuale Operativo (Italian, PDF)
G1 FOUR / G1X FOUR Manuale Operativo (Italian, EPUB)
G1 FOUR / G1X FOUR Guía rápida (Spanish, PDF)
G1 FOUR / G1X FOUR Manual de Instrucciones (Spanish, PDF)
G1 FOUR / G1X FOUR Manual de Instrucciones (Spanish, EPUB)
G1 FOUR / G1X FOUR 快速入门 (Chinese, PDF)
G1 FOUR / G1X FOUR 使用说明书 (Chinese, PDF)
G1 FOUR / G1X FOUR 使用说明书 (Chinese, EPUB)
Safety and Usage Precautions (Multi Language)

SOFTWARE

G1 FOUR Firmware

System Version 2.0 for Windows
System Version 2.0 for Mac

G1X FOUR Firmware

System Version 2.0 for Windows
System Version 2.0 for Mac

Guitar Lab

Windows 7/8/8.1/10
macOS 10.12 ~ 10.15

SPECS



Maximum number of simultaneous effects:

5

User patches:

50

Sampling frequency :

44.1 kHz

A/D conversion:

24-bit, 128× oversampling

D/A conversion :

24-bit, 128× oversampling

Signal processing :

32−bit

Display:

128×32 dot matrix LCD

INPUT

INPUT :

Standard mono phone jackRated input level: -20 dBuInput impedance (line): 470 kΩ

AUX IN :

Stereo mini jackRated input level: -10 dBuInput impedance (line): 1kΩ

OUTPUT

OUTPUT:

Standard stereo phone jack (combinedline/headphone)Maximum output level: Line +2 dBu (10 kΩ or more output impedance)Headphones 17 mW + 17 mW (32Ω load)



Input S/N :

120 dB

Noise floor (residual noise) :

-97 dBu

Power :

Power  AC adapter: 9V DC 500mA center negative (ZOOM AD-16)4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)

USB :

Connector: USB2.0 Micro-B
Guitar LabStandard: USB 1.1 Full Speed
Supported cable: USB2.0 Micro-B cableUse cables for data transfer.Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used.

External dimensions :

G1 FOUR 156 mm (D) × 130 mm (W) × 42 mm (H)G1X FOUR 156 mm (D) × 216 mm (W) × 52 mm (H)


Weight:

G1 FOUR 340 g (excluding batteries)G1X FOUR 610 g (excluding batteries)




* Note: 0 dBu = 0.775 V
