10″ Portable battery-powered Bluetooth® PA System with mixer

Mobile active 2-way full-range loudspeaker
Integrated 6-channel mixer with 3-band EQ, reverb and delay
Long battery life: Up to 25h (ECO mode) / 5h (max. volume)
Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
Clear sound without distortion at max. volume thanks to DynX® DSP (Gen. 2)
2x microphone/line inputs for versatile connection options
1x stereo input with 3.5mm jack (AUX) or RCA
2x receiver module slots for retrofitting ANNY wireless microphones
Priority/ducking mode to emphasize the microphone signal
Wheels and telescopic handle for easy transport

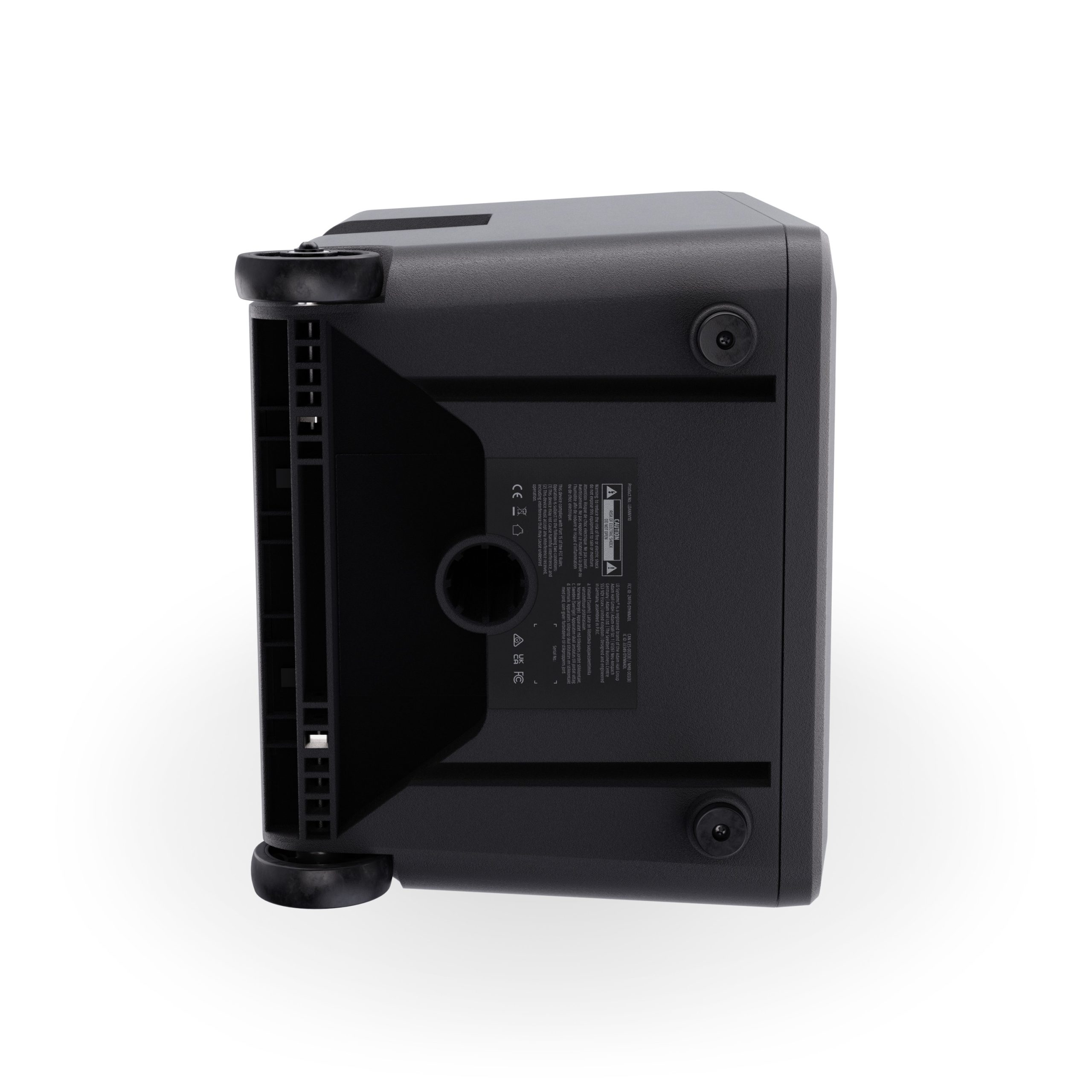

35 mm flange for mounting with speaker stand
USB-C port for charging your tablet or smartphone
Footswitch input for hands-free effect control

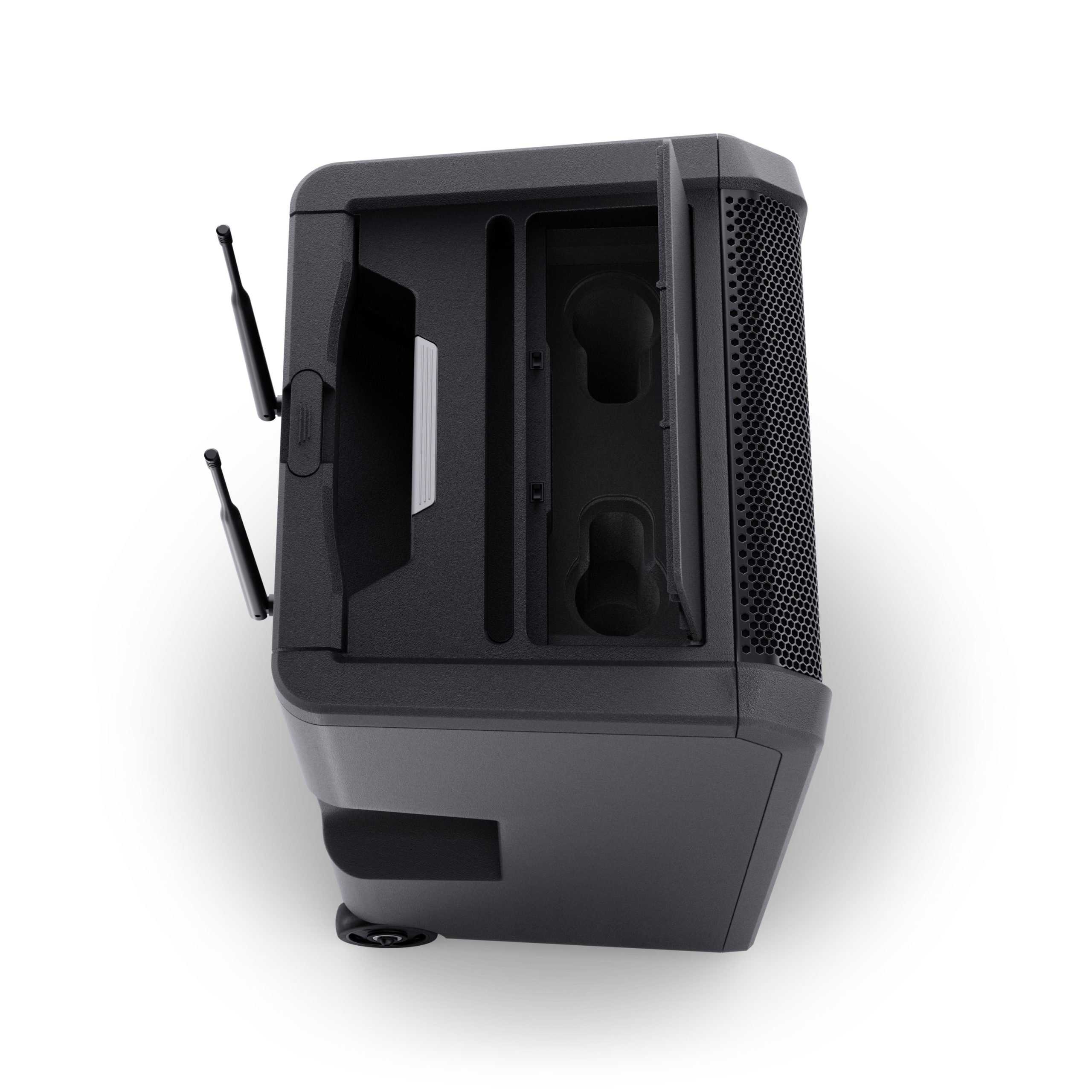

Integrated holder for tablet or smartphone

Description

ANNY – your battery-powered sound solution for absolutely anywhere: whether in the city, in the garden, at a club, at sports events, at school or dance events, in bars, at parties, wherever you are, with ANNY you can ensure professional sound and create unforgettable moments.

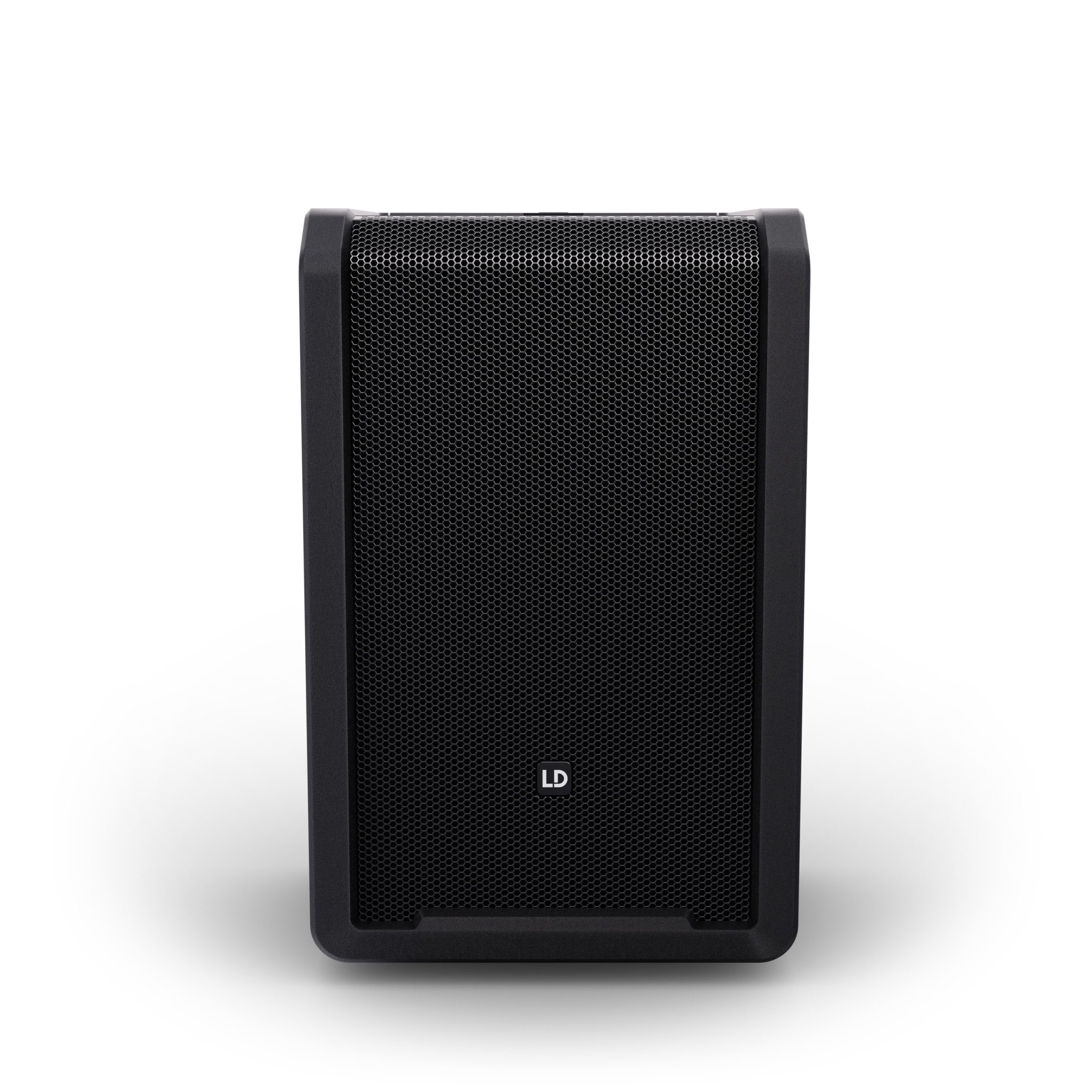

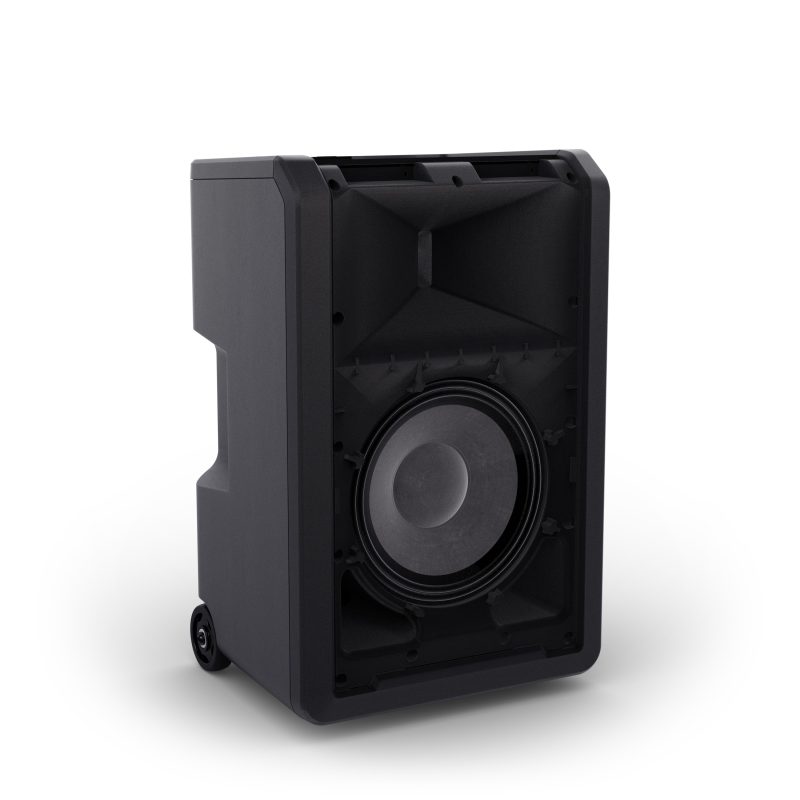

Equipped with a 10” woofer, 1” tweeter, wheels and extendable telescopic handle, ANNY 10 offers an ideal combination of mobility and sound performance.
With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT), and effects like reverb and delay, it combines extensive features and top-quality sound in a compact and robust design. The ANNY 10 impresses with its diverse connectivity options: two microphone/line combo inputs, a stereo channel with 3.5mm jack (AUX) and RCA inputs, and Bluetooth 5.0 with AAC codec.
This versatility allows for a wide range of setups for a successful blend of speech and music. The footswitch input allows you to easily and hands-freely activate the reverb and delay effects with an external footswitch while playing or singing.
To ensure clear announcements in every situation, you can use the “Priority” feature. Simply select your microphone in the priority settings, and the music will automatically be quieter when you use your microphone.

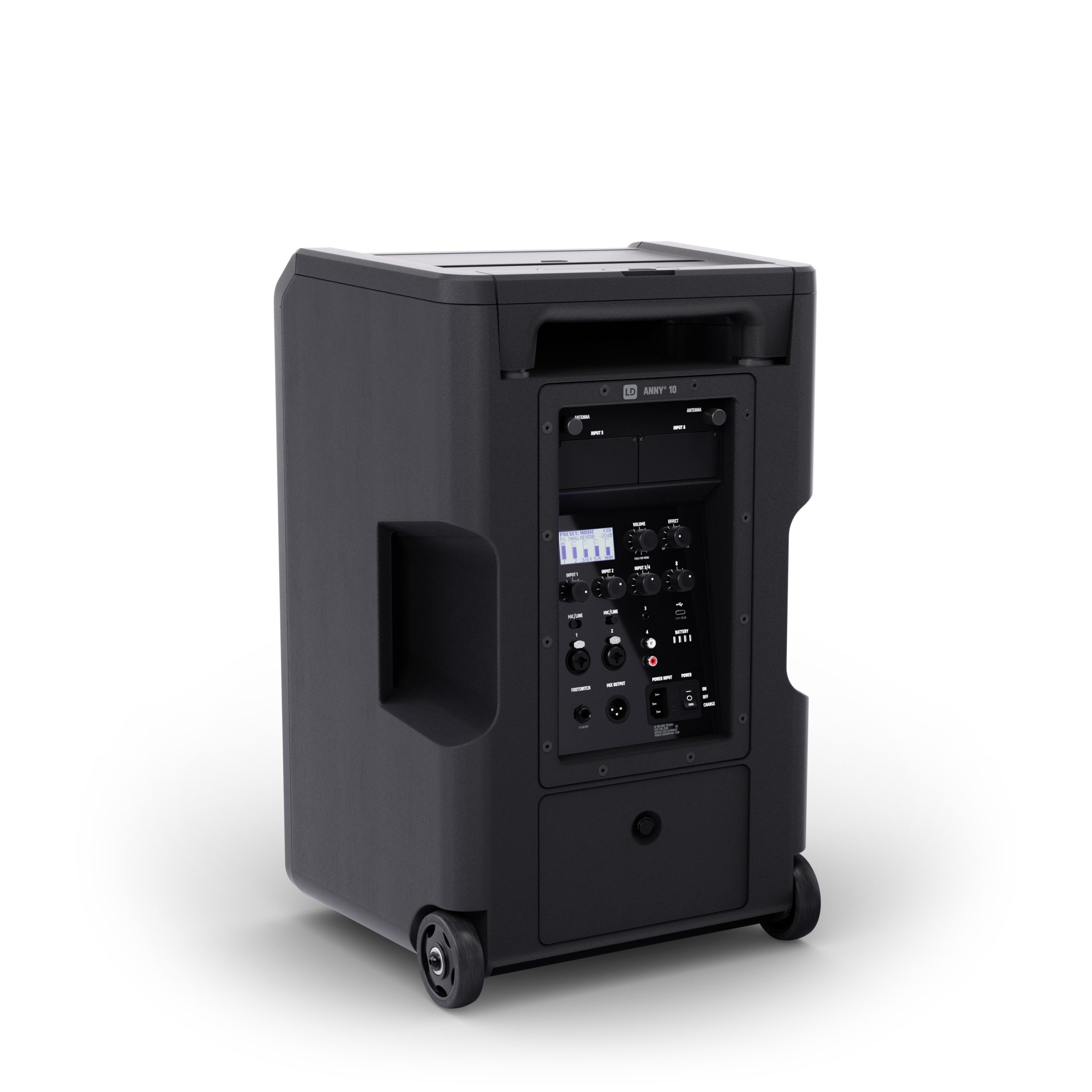

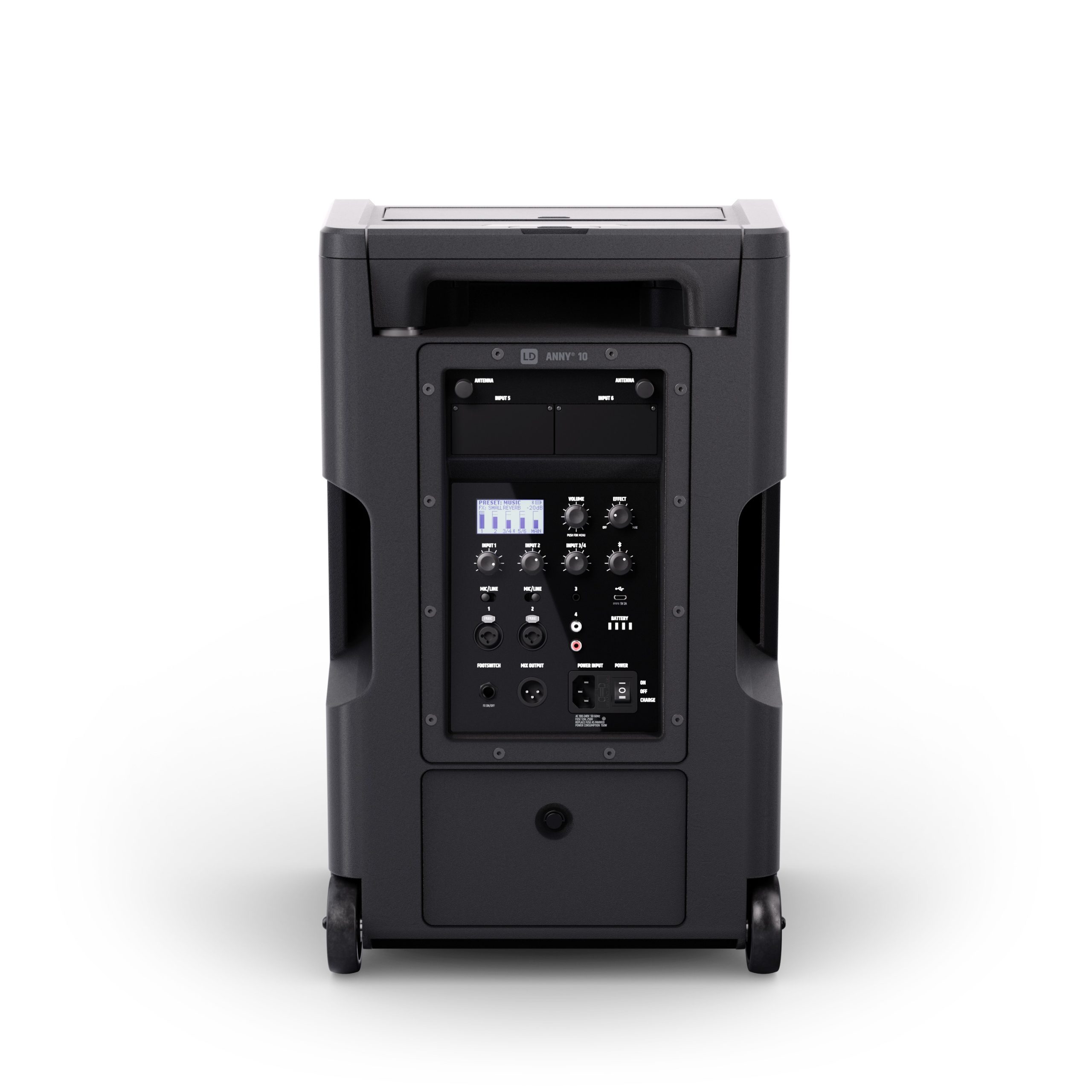

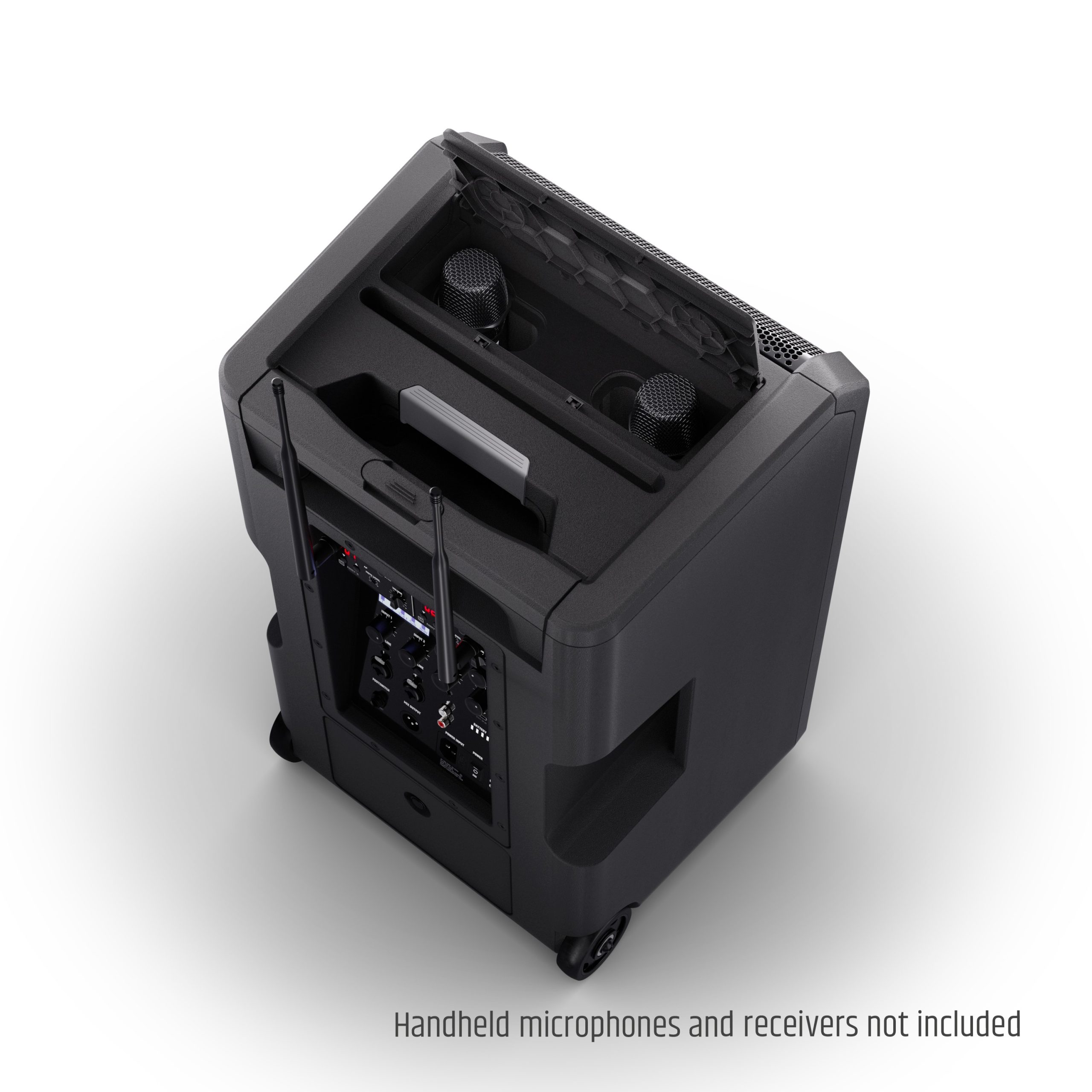

Thanks to the two receiver module slots on the back, you can add up to two ANNY wireless microphones to expand your setup as needed.

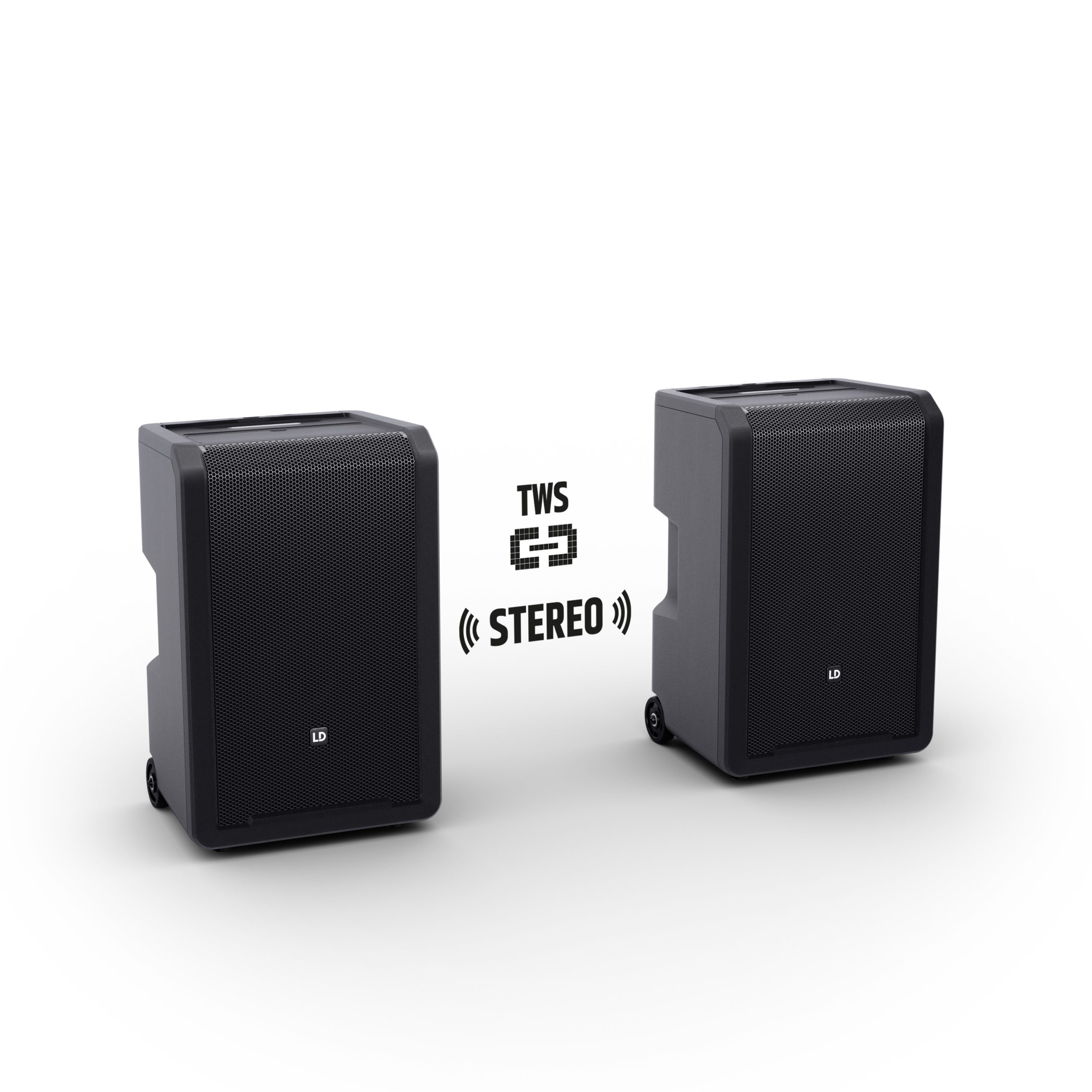

In addition to the versatile application possibilities, True Wireless Stereo (TWS) allows you to connect two ANNY 10 speakers to enjoy your music in stereo – a quick upgrade to provide even larger parties and events with powerful sound.
Don’t worry, you can turn your ANNY up to full volume because the integrated DynX® DSP (Gen. 2) produces a distortion-free, cleaner, and more powerful sound even at maximum volume. Thanks to the energy-saving ECO preset, ANNY can be used for a particularly long time for background music or purely speech applications. At medium volume, this mode enables continuous operation of up to 25 hours. For your party with the volume turned up all the way, the battery in the MUSIC preset lasts up to an impressive 5 hours at full load. With the optionally available spare batteries, the playtime is extended accordingly; simply swap the empty batteries for fully charged ones in just a few seconds, and you’re ready to go. To ensure your phone or tablet is always ready for use, you can place it in the integrated holder and charge it via the USB-C port on the back of ANNY.
Those who travel a lot with their ANNY 10 will appreciate the integrated wheels and the extendable telescopic handle, which allows the speaker to be pulled like a trolley. Thanks to its robust housing construction and two handles, the ANNY 10 is extremely durable and suitable for use on the floor or on a speaker stand. A perfectly fitting, water-repellent carrying case with additional storage space is available as an accessory, providing protection from wind and weather while also offering practical storage.
So, go ahead and create unforgettable moments. With ANNY by your side, you’ll create a great atmosphere and top-notch sound – wherever you are.

slide 1 of 2






Specifications

Generally

Product type
Battery-powered PA speakers

type
Active

Color
Black

System power (RMS)
80 W

System performance (peak)
160 W

Max. SPL Average (Sine burst)
111 dB

Max. SPL Peak (Sine Burst)
118 dB

Frequency response (-10dB)
45 Hz – 20 kHz

Crossover frequency
1800 Hz

Beam angle (H x V)
120° x 60°

Channels
6 channels

Width
361 mm

depth
300 mm

Height (total)
566 mm

Features
3-band EQ, effects (reverb & delay), 6-channel mixer with system presets, priority/ducking mode, TWS, USB-C port for charging mobile devices

Weight
18 kg

woofer

Woofer size
10 ”

Woofer size
254 mm

Magnetic woofer
ferrite

Brand woofer
Custom-made

Voice coil woofer
2 ”

Woofer voice coil (mm)
51 mm

Housing design
bass reflex

Housing material
Polypropylen

tweeter

horn
Constant directional characteristic

Tweeter size
1 ”

Tweeter size
25 mm

Magnetic tweeter
ferrite

Tweeter brand
Custom-made

Voice coil tweeter
1 ”

Voice coil tweeter
25 mm

Amplifier module (integrated)

amplifier
Class D

Protective circuits
Short circuit, overheating

Ambient temperature
0°C – 40°C

Relative humidity
0 – 80% (non-condensing)

Backup
T2 AL 250V

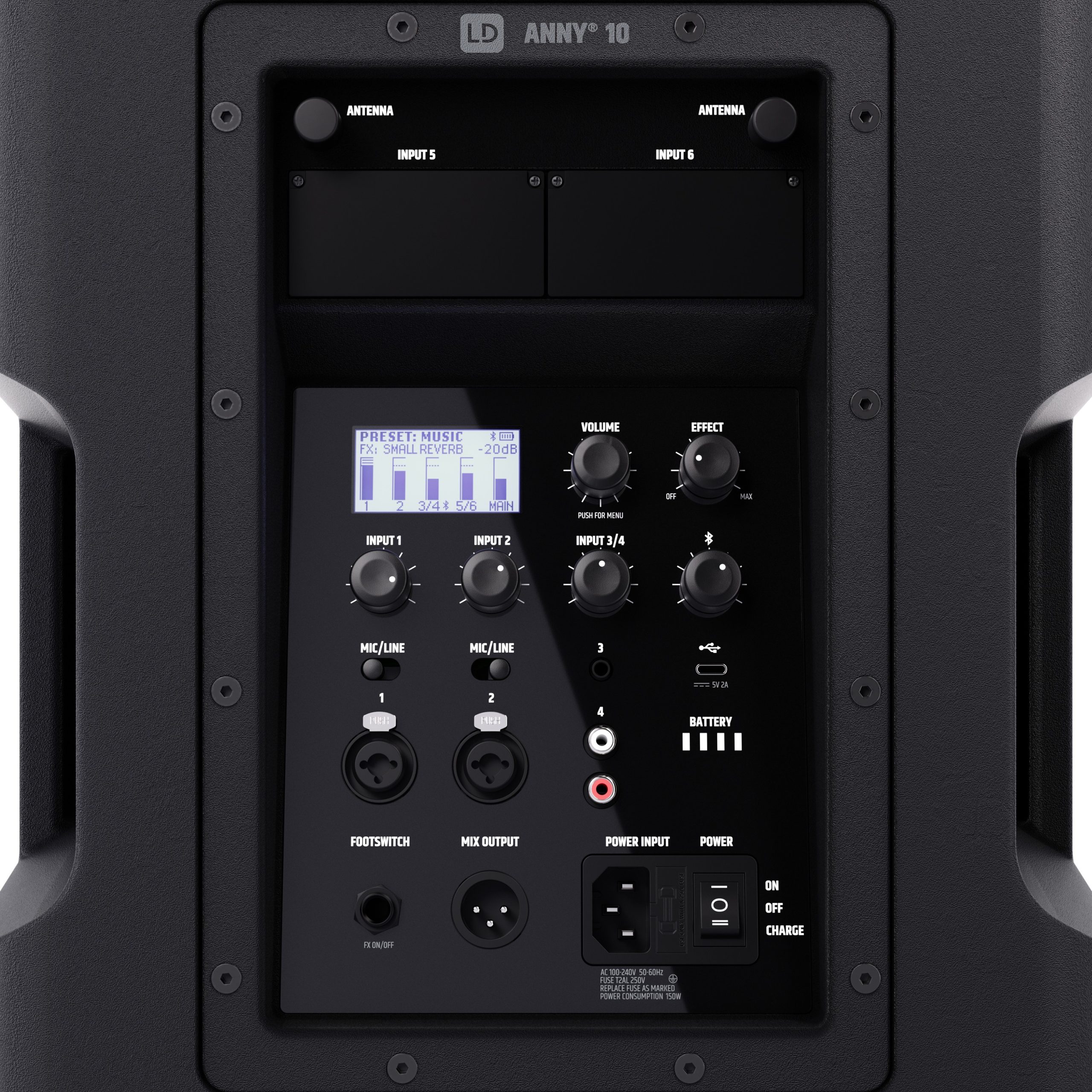

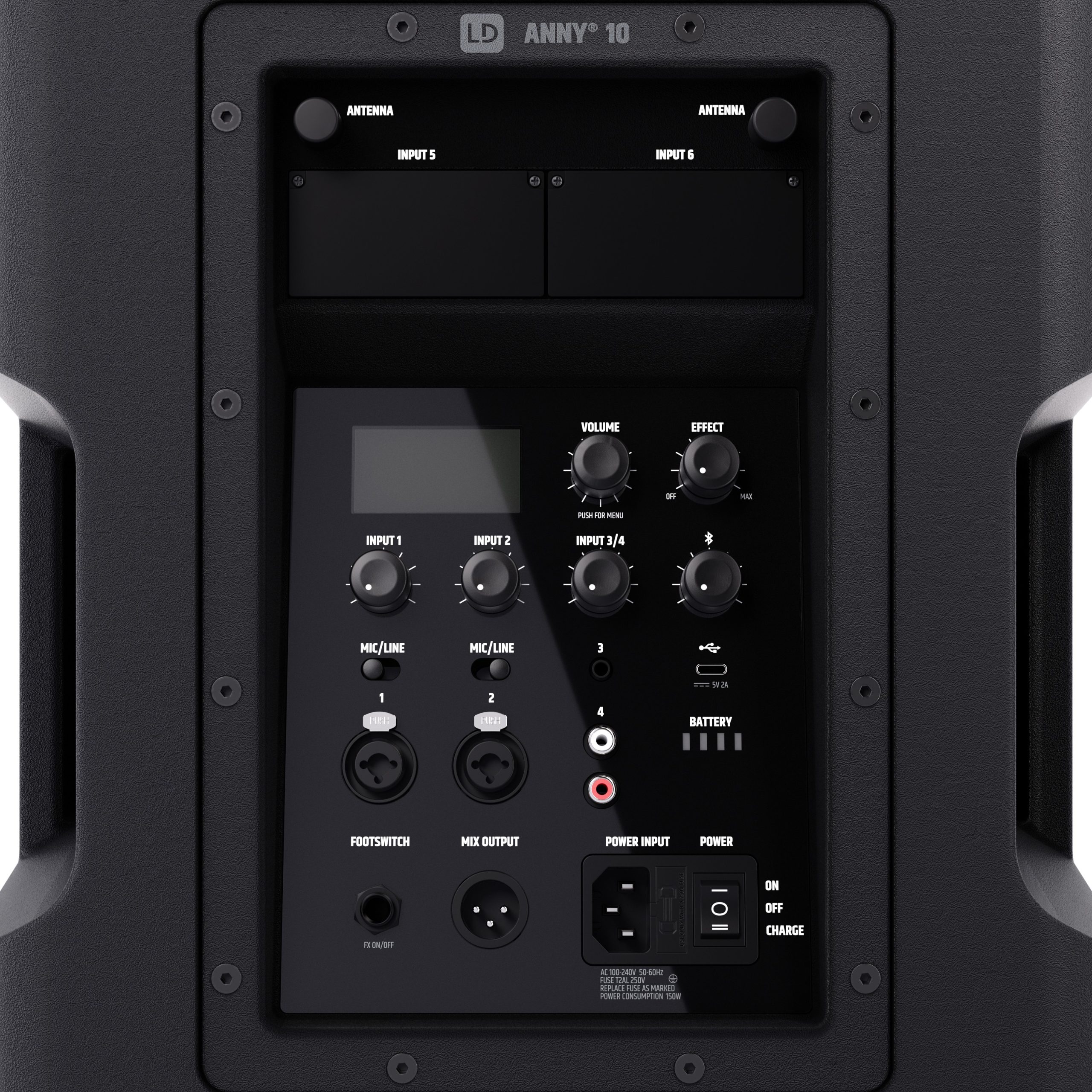

Controls
Effect, Input 1 Volume, Input 1 Mic/Line Switch, Input 2 Volume, Input 2 Mic/Line Switch, Input 3+4 Volume, Input 5+6 (Bluetooth) Volume, Main Volume/Menu Navigation, Power

Display elements
Multifunction LC display, power/battery status

Mains connection
IEC

Operating voltage
100V AC – 240V AC / 50 – 60 Hz

Power consumption
150 W

Physical inputs
5

Physical input connections
2 x 6.3 mm / XLR combo, 2 x RCA, 3.5 mm jack

Mix output
1

Mix output connector
XLR male

Bluetooth standard
5.0

Bluetooth audio decoder
AAC, SBC

Battery

Rechargeable batteries
2 x 12V / 5000mAh

Battery technology
Lead / Acid

Battery life music (MUSIC, full volume)
5 hours

Battery life music (ECO, medium volume)
25 hours

Charging time (80%, without signal)
3.5 hours

Charging time (full charge)
7 hours (no signal)
