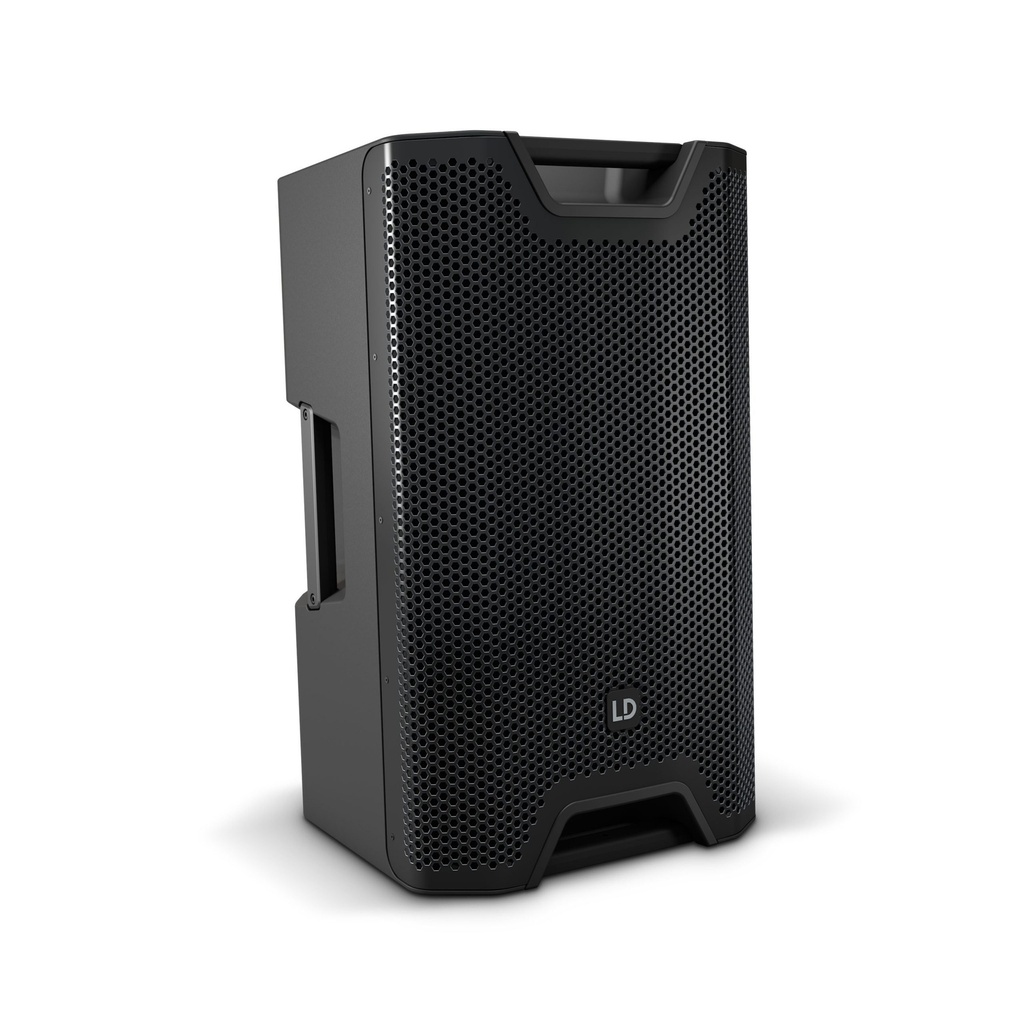

12“ Powered Speaker Coaxial PA Loudspeaker with Bluetooth ICOA

Designed for professional sound reinforcement, the LD Systems ICOA 12 A BT is a powerful and flexible active PA loudspeaker that performs equally well as a main speaker or stage monitor. With a coaxial design, advanced DSP, and built-in Bluetooth, it delivers clean, consistent sound for live performance, events, and fixed installations.

Manufactured by LD Systems, the ICOA series is built to meet the demands of musicians, DJs, venues, and AV professionals.

Key Features

• High-power Class-D amplification delivering 300 W RMS / 1200 W peak

• 12″ coaxial speaker design for excellent phase coherence and clarity

• Integrated Bluetooth audio streaming for wireless playback

• Wide frequency response from 50 Hz to 20 kHz

• Maximum SPL up to 126 dB for confident coverage in demanding environments

• 90° × 50° dispersion with rotatable horn for flexible orientation

DSP & Sound Control

The built-in DynX DSP provides precise sound shaping without external processing:

• 4 selectable sound presets

• 3-band EQ

• Adjustable delay for system alignment

• Optimised protection and limiter processing

This allows quick adaptation to different rooms, applications, and speaker placements.

Connectivity & Operation

• Two balanced mic/line inputs with independent level control

• Balanced line output for linking additional speakers

• Bluetooth input for background music, playback, or break music

• Simple rear-panel controls for fast setup and operation

Cabinet & Mounting

• Rugged polypropylene enclosure with steel front grille

• Designed for vertical PA use or horizontal floor monitor use

• 36 mm pole mount with dual tilt angles

• Multiple M10 rigging points for permanent installation

Specifications (Overview)

• Speaker type: Active 2-way coaxial

• Woofer: 12″

• HF driver: 1″

• Frequency response: 50 Hz – 20 kHz

• Max SPL: 126 dB

• Amplifier: Class-D

• Weight: Approx. 19.9 kg

Ideal For

• Live bands and performers

• DJs and mobile entertainers

• Small to medium venues

• Corporate AV and events

• Stage monitoring and portable PA systems

Professional sound, smart DSP control, and wireless convenience — the LD Systems ICOA 12 A BT is a reliable all-round powered PA speaker built for real-world use.
