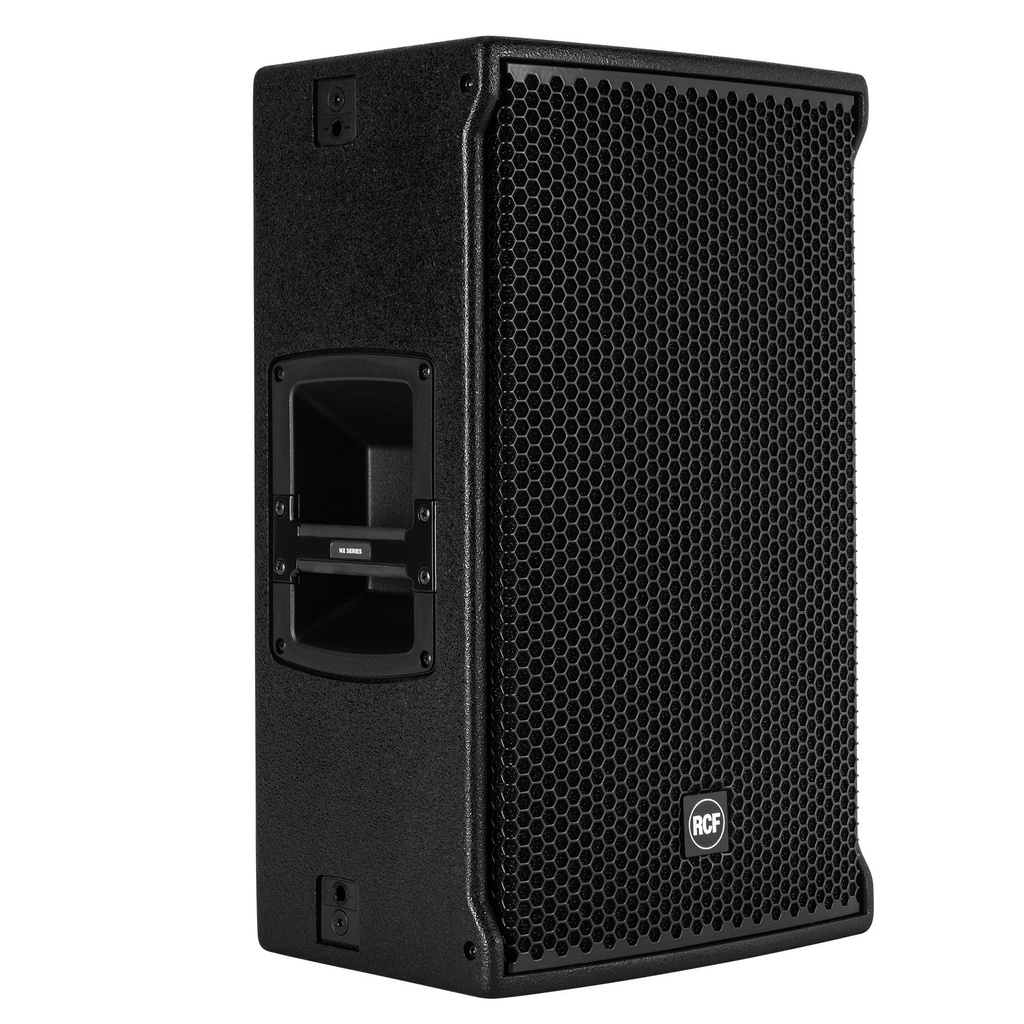

NX 32-A Active Two Way Multipurpose Speaker

 1400 W 2-way class-D amplifier
 131 dB SPL Max
 50 – 20000 Hz Frequency Range
 90° x 60° constant directivity coverage
 12″ woofer, 2.5″ voice coil
 Horn loaded 3.0”neodymium c. driver
 Multiple rigging points

The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
Read More

SUPERIOR COMPRESSION DRIVERS
The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
Read More

POWERFUL CLASS D AMPLIFIERS
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. NX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the NX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SPECIFICATIONS

Acoustical specifications

FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

Transducers

COMPRESSION DRIVER:
1.4” neo, 3.0” v.c

WOOFER:
12”, 2.5” v.c

Input/Output section

INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu

Processor section

CROSSOVER FREQUENCIES:
700 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, boost, Mic/Line

Power section

TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT

Standard compliance

CE MARKING:
Yes

Physical specifications

CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
5 x M10, 4 x quick lock

HANDLES:
2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black

Size

HEIGHT:
600 mm / 23.62 inches

WIDTH:
365 mm / 14.37 inches

DEPTH:
378 mm / 14.88 inches

WEIGHT:
20.6 kg / 45.42 lbs

Shipping informations

PACKAGE HEIGHT:
655 mm / 25.79 inches

PACKAGE WIDTH:
425 mm / 16.73 inches

PACKAGE DEPTH:
440 mm / 17.32 inches

PACKAGE WEIGHT:
23.6 kg / 52.03 lbs
