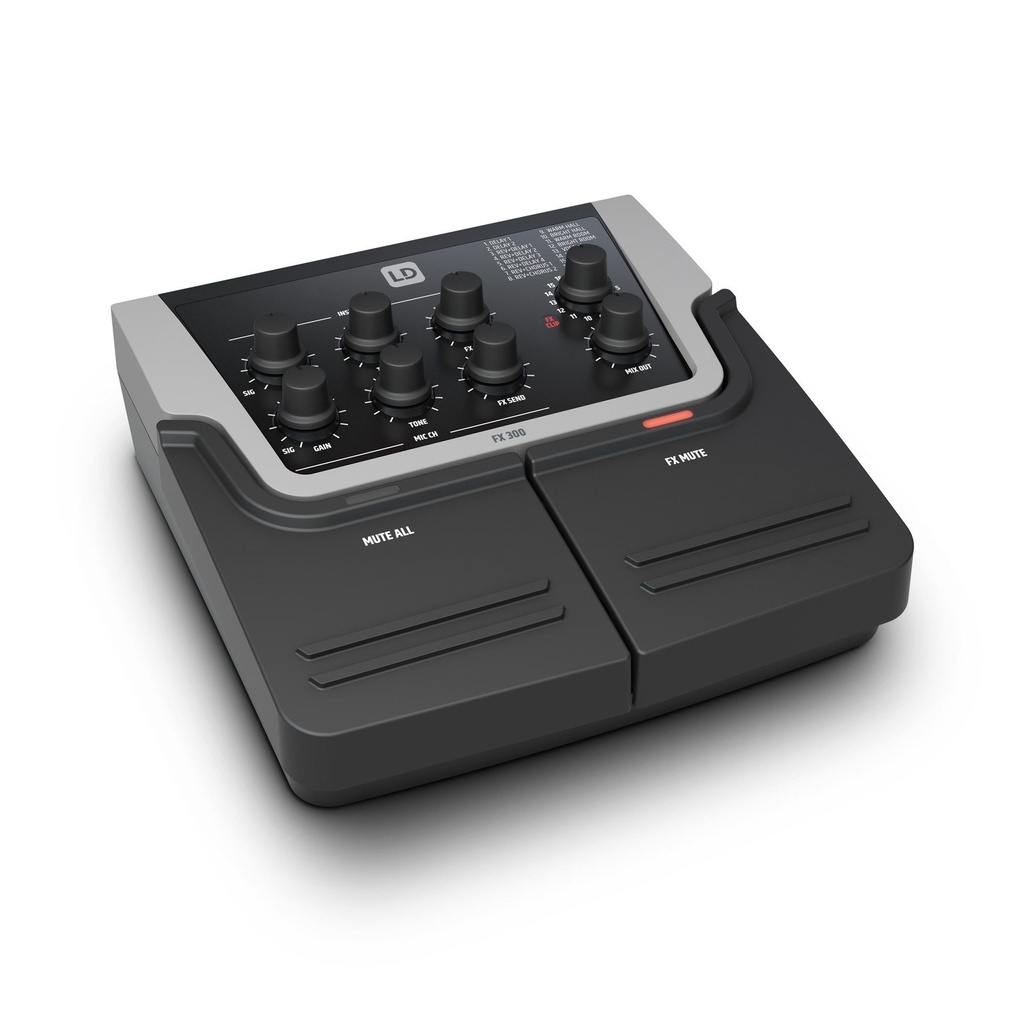

2-Channel Pedal with 16 Digital Effects

Description

For a singer-songwriter performing on stage or giving a concert in a living room, sound is everything.
LD Systems FX 300 will blow you away right from the moment you start your show, even if you’ve had little to no time to carry out a soundcheck. This small yet handy device not only serves as an effect pedal for altering the sound of your voice and instrument but is also an easy-to-use two-channel mixer. Its best feature by far are the pedals that let you control the mute functions with your feet or hand. And if you’ve got something to say, you can simply mute all effects with the FX MUTE pedal so your voice can be heard loud and clear without any reverb or delay and everyone in the room can understand your message. To prevent the signal of your microphone or instrument from reaching the outputs, all you need to do is tap the MUTE ALL pedal – a lifesaver during breaks or when wrapping up your set.
The FX 300 is outfitted with 16 digital effects presets in 16-bit quality, two inputs with a separate gain setting and a balanced and unbalanced output. The +48 V phantom power provided at the microphone input allows condenser microphones to be used in addition to dynamic microphones. The high-impedance, low-noise instrument input is not only great for acoustic or bass guitars but also for all other instruments. Plenty of headroom ensures you no longer have to worry about distorted signals. And with a 9 V battery that lasts up to five hours, LD Systems FX 300 has got you covered even if there’s no outlet in sight.

Specifications

Product type
Artist Pedal

Type
Home-Recording, Live

Channels
2

Microphone channels

Microphone channels
1

Mic inputs
XLR/6.3 mm jack

Frequency Response Microphone Channel
50 – 20000 Hz

Amplification range Microphone channel XLR input
42 dB

Mono Mic Input Input THD-N
<0,03%

Impedance XLR input
6000 Ohm(s)

Phantom power
+48V DC to XLR Input

Microphone channel Jack input Input type
Electronically balanced

Amplification range Microphone channel Jack input
20 dB

THD jack input
<0.045%

Microphone Equalizer
+5/-8dB @ 8kHz

Microphone channel controls
FX SEND, Gain, tone

Microphone Channels Display Elements
channel signal

Instrument channels

Instrument inputs
1

gain range
23 dB

THD
0.03%

Equalizer
+7/-8dB @ 10kHz

Channel Inserts
1

Controls
FX SEND, Gain, tone

Indicators
3-colour LED (SIG), channel signal

Main Section

Line outputs
2

Line output connectors
6.3 mm TRS, XLR

Output level XLR
Max. +17dBu, balanced

Impedance XLR output
150 Ohm(s)

Output level Jack output
Max. +5dBV, unbalanced

Impedance jack output
40 Ohm(s)

Digital Effects Processor
Yes

Number of Presets
16

Main section controls
DFX Presets, FX MUTE, MIX OUT, MUTE ALL, Power

Display elements Main section
Effekt-Clip, FX MUTE, MUTE ALL, red LED (FX CLIP)

General Specifications

Operating voltage
9 V block, External mains adapter 9 V DC / 250 mA (not included

Ambient temperature ( in operation )
0 – 40° °C

Relative Humidity
< 80% (non-condensing)

Width
160 mm

Height
55 mm

Length
163 mm

Weight
0,65 kg

Features
Preparation for microphone stand mounting
