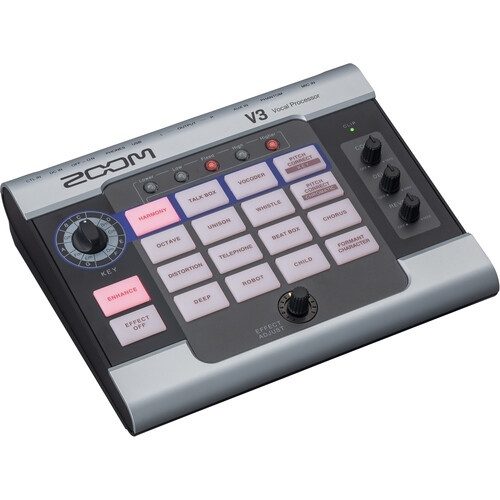

Zoom V3 Vocal Processor

Product Features

16 Voice Effects
Compression, Reverb, Delay, and Enhance
Adds up to 2 Voices for 3-Part Harmonies
XLR Mic Input with 48V Phantom Power
3.5mm Stereo Aux Input

Description
Make your vocal sound shine for your next livestream, home recording, or onstage performance with the Zoom V3 Vocal Processor, a vocal processor teeming with exciting effects and easy-to-use controls. You’ll never have to enter a menu to access the V3’s powerful functions thanks to the large, clearly-labelled knobs and illuminated buttons, letting your focus remain on being creative and entertaining.
Dedicated buttons provide instant switching of the 16 onboard effects, which range from chromatic or key-based pitch correction to a talk box, vocoder, beat box, and more. You can even add up to two voices to produce thick 3-part harmonies. Plus, compression, reverb, and delay are provided with their own separate controls for further refinement of your sound.
The V3 features a high-quality mic preamp with an XLR input, switchable 48V phantom power for condenser mics, and a special Enhance function that elevates vocal clarity. A 3.5mm stereo aux input ensures that you can easily play along with music from your smartphone or backing tracks from a computer. Stereo line and headphone outputs allow simultaneous hookup to a PA system and headphones, and the headphones’ volume can be independently adjusted.
Additionally, the V3 offers USB audio interface functionality, should you want to record directly to your computer for creating podcasts, song demos, YouTube videos, or more. Run the V3 for up to 3.5 hours with the supplied AA batteries, power it via USB, or connect the separately available Zoom AD-16 AC adapter for long-running projects.
Key Features:
Loaded with Effects

Reverb, delay, and compression with dedicated control knobs
Enhance function automatically optimises the performance of any mic for increased clarity
Harmony function adds up to two voices to create 3-part harmonies in major and minor keys
Formant Character button alters your vocal characteristics without changing the pitch
Chromatic and key-based pitch correction
Pitch-based effects including octave, unison, deep, robot, child, and chorus
Special effects such as talk box, vocoder, beat box, whistle, distortion, and telephone

Flexible I/O

XLR mic input with switchable 48V phantom power for condenser mics
3.5mm stereo aux input allows direct connection of a mobile device or computer for music playback
1/4″ stereo line outputs for hookup to a PA system or mixer
3.5mm stereo headphone output with a dedicated volume control
1/4″ control input supports separately available foot controllers such as the Zoom FS01 footswitch (for toggling effects on beat) or the Zoom FS02M expression pedal (for freely modulating effect parameters)

Compatible with Zoom SGV-6 Mic

Works with the optional Zoom SGV-6 microphone
SGV-6 aids in isolating your voice by suppressing ambient noise

USB Audio Interface

Micro-USB port enables simple connectivity to your computer or mobile device for recording or streaming
2-input / 2-output USB 2.0 audio interface functionality
Supports 44.1 kHz sample rate at 16-, 24-, or 32-bit

Versatile Placement

Compact tabletop-friendly enclosure
1/4″-20 thread on rear panel for attachment to a mic stand using the separately available Zoom HRM-7 or HRM-11 mounts

Specifications

Effects
16 (up to Five Concurrent Effects)

Sample Rate
44.1 kHz

Bit Depth
Signal Processing: 32-BitAD/DA Conversion: 24-Bit, 128x Oversampling

Inputs
1 x XLR 3-Pin Female Balanced Mic Input1 x 1/8″ / 3.5 mm TRS Female Unbalanced Stereo Aux Input

Outputs
2 x 1/4″ TS Female Unbalanced Line Outputs1 x 1/8″ / 3.5 mm TRS Female Unbalanced Stereo Headphone Output

Control Input
1 x 1/4″ TS (Compatible with Zoom FS01 and FP02M )

USB Port
1 x Micro-USB 2.0

Audio Interface
2-Input / 2-Output USB 2.0 Full Speed at 44.1 kHz / 16-, 24-, or 32-Bit

Frequency Response
20 Hz to 20 kHz (+1 dB / −3 dB, 10-Kilohm Load)

Input Gain
Mic Input: +3 to +40 dB

Input Level
Mic Input: +4 dBu (Maximum)Aux Input: -10 dBu (Rated)

Output Level
Line Outputs: +6 dBu (Maximum)

Headphone Output Power
20 mW + 20 mW into 32-Ohm Load (Maximum)

Input Impedance
Mic Input: 3 Kilohms or Greater (1 kHz)Aux Input: 22 Kilohms

Output Impedance
Line Outputs: 100 Ohms

Equivalent Input Noise
Mic Input: -125 dBu or Less (Phantom Power Off, A-Weighted, 150-Ohm Input, +40 dB Input Gain)

Noise Floor
-75 dBu

Phantom Power
+48 VDC

Power Requirements
4 x AA Batteries (Included), 5 VDC via USB Bus Power, or 9 VDC via AC Power Adapter (Available Separately)

Power Adapter
9 VDC, 500 mA (Centre-Positive) via Zoom AD-16 AC Adapter (Available Separately)

Battery Life
Up to 3.5 Hours

Security
Kensington Lock Slot

Mounting
1 x 1/4″-20 Female Thread

Dimensions (D x W x H)
5.9 x 7.5 x 2″ / 15 x 19 x 5 cm

Weight
1.3 lb / 0.6 kg (Excluding Batteries)
