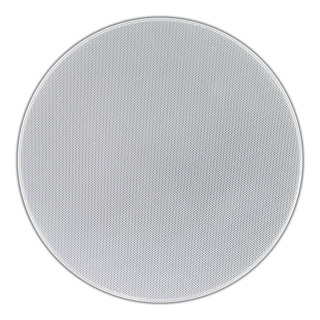

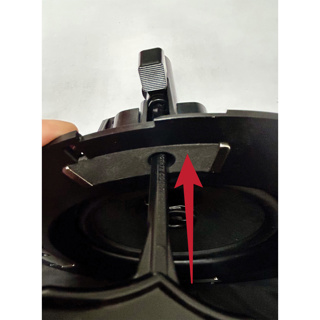

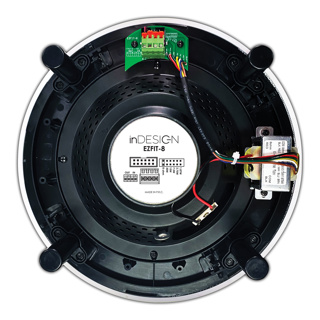

The EZFIT-8 ceiling speaker consists of a coaxial driver, frameless magnetic grille, and tool-less installation. It is the quickest ceiling speaker to install on the market!
The EZFIT-8 ceiling speaker is the cost-effective choice for BGM, Paging and EVAC purposes. Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, pubs, restaurants, and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
Specifications
- Impedance: 8 ohms
- Speaker size: 8” (203.2mm)
- SPL 1W @ 1m: 88dB
- Frequency response ± 5dB: 62Hz-20kHz
- Transformer taps:
- 30W, 15W, 7.5W, 3.75W, 1.875W
- 8ohm at 30W RMS
- Cold test: -25° ± 3° C, 16H
- Heat test: 70° ± 3° C, 16H

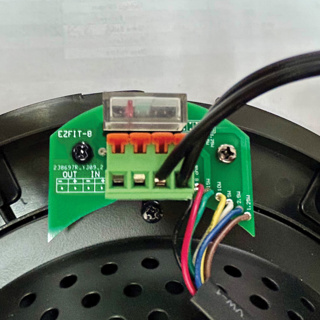

- Connection: 4 PIN quick connect, 5.08mm Euro Block connector
- Weight: 1.93kg
- Mid. range: Paper cone
- Tweeter: 13mm PEI dome tweeter
- Cut out diameter: 270mm-272mm
