Description

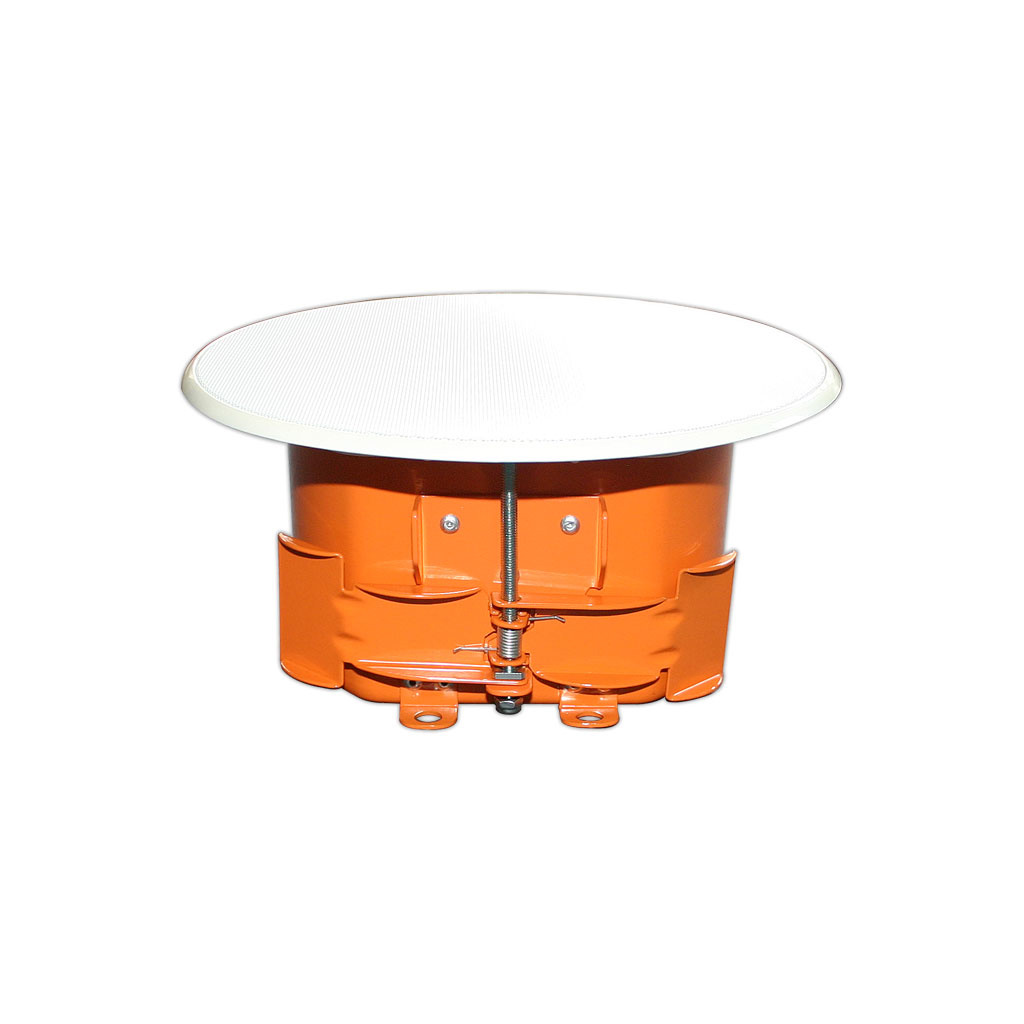

8″ Premium Ceiling Speaker with Backcan, 60W, Black and White Magnetic Grills included
inDESIGN’s performance ceiling speaker series is a high quality premium group of products specifically designed for installation in venues that demand sonic clarity and dispersion accuracy.The all metal back can enclosures reduce unwanted spill into roof cavities while the front baffles are embedded with magnets to secure frameless white or black grill (included) firmly in place.
Installation is a breeze with the quick wing steel mounting system. Each product in the range offers high impedance 70V and 100V multi tap options as well as a low impedance 8 ohm direct bypass, via the rotary switch fitted on the front speaker baffle. The iD-PCS4 and iD-PCS6 boast a depth of only 100mm making them suitable for most roof cavity spaces.
The iD-PCS4, iD-PCS6 and iD-PCS8 are the right choice for all installations that require quality ceiling speaker products such as: houses of worship, retail shops, lecture theatres, mass transport, boardrooms, office spaces, huddle spaces, open plan spaces, education sector and the list goes on.
Each model in the range is shipped with both black and white grills – you make the choice!
Tile bridge accessories are available to purchase as optional extras.
Specifications
- SPL 1W @ 1m: 86dB
- Freq. Response ± 3dB: 100Hz – 20kHz
- Tapping Selector: Rotary Switch front baffle
- Transformer Taps 100V: 6.25, 12.5, 25, 50 watts 8 ohm
- Transformer Taps 70V: 3.12, 6.25, 12.5, 25 watts 8 ohm
- Max Power Handling: 80W program, 50W RMS
- Nominal Impedance: 8 ohm
- Connection: Ceramic Screw Terminal IN/OUT
- Tweeter: 1” (25mm) Titanium dome
- Mid Driver: 8″ (203mm) Graphite Cone with rubber surround
- Speaker Cut-out Diameter: 269mm
- Product Dimensions Width x Depth: 295mm x 154mm
- Product Weight: 4.2kg
- Certifications: CE
- Optional Accessories: Tile Bridge: iD-TB-PCS6-8
Description and specifications are correct at time of printing. Maybe subject to change without notice.
