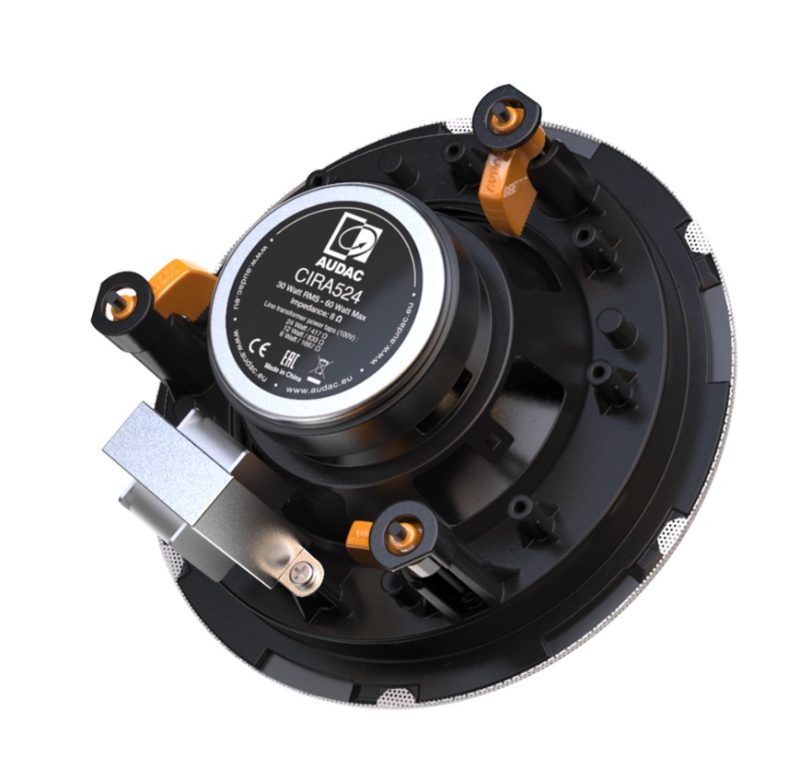

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 16 Ohm bypass connection.
- Excellent off-axis performance (up to 155°)
- Exceptional intelligibility and musical performance
- TwistFix™ borderless grill design
- Flat frequency response
- Consistent sound profile throughout complete family
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
| CIRA506/W | White version, 8Ω & 6 Watt @ 100V |
| CIRA506I/W | White version, 8Ω & 6 Watt @ 100V (RAL9016) |
| CIRA524I/W | White version, 8Ω & 24 Watt @ 100V (RAL9016) |
| CIRA530D/W | White version, 16 Ω |
| CIRA530DI/W | White version, 16 Ω (RAL9016) |
| Peak power handling | 120 W | |
| Program power handling | 60 W | |
| Continuous power (AES) | 30 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB |
| Sensitivity (1W/1m) | 87 dB | |
| Frequency | Response (± 3 dB) | 60 Hz – 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 16 Ω (CIRA530D) | |
| 8 Ω (CIRA506 & CIRA524) | ||
| Frequency | Range (-10 dB) | 45 Hz – 20 kHz |
| Dispersion | Conical | 145° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | HF | 1” |
| LF | 5 ¼” Woofer | |
| Line Transformer Tappings | 1 | 6 W – 1667 Ω (CIRA506) |
| 24 W – 417 Ω (CIRA524) | ||
| 2 | 3 W – 3333 Ω (CIRA506) | |
| 12 W – 833 Ω (CIRA524) | ||
| 3 | 1.5 W – 6667 Ω (CIRA506) | |
| 6 W – 1667 Ω (CIRA524) | ||
