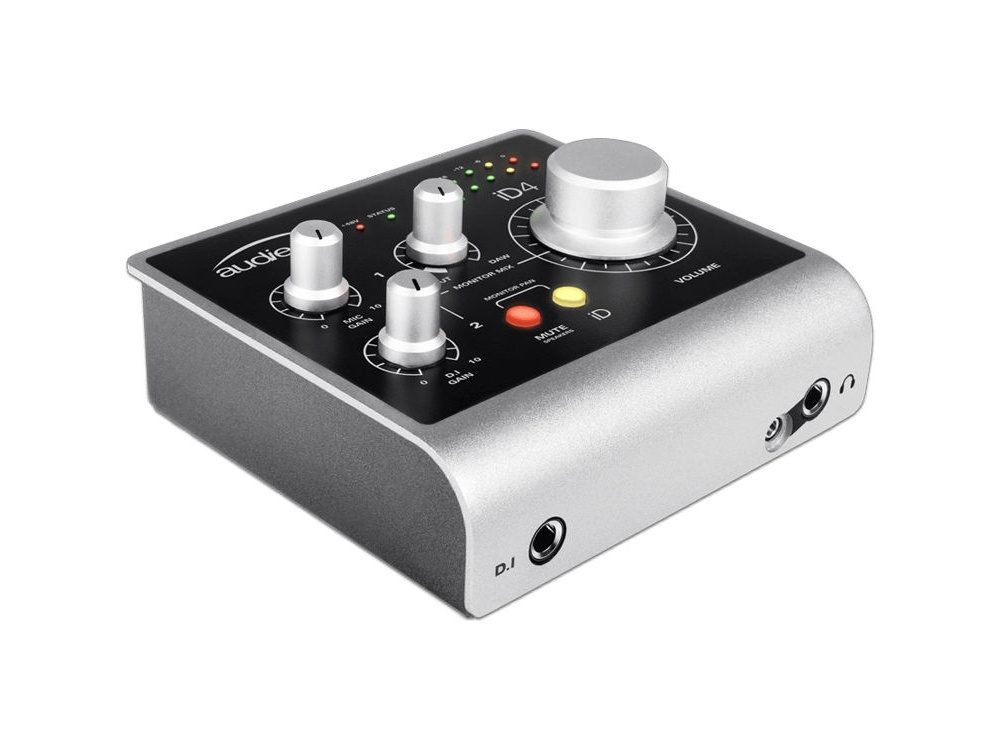

Audient iD4 High-Performance USB Audio Interface

Description

The Audient iD4 High-Performance USB Audio Interface was designed with musicians in mind to simplify the recording process while providing the artist with one of the company’s renowned Class-A console-grade microphone preamplifiers. Housed in a desktop-style chassis, it delivers the audio performance of a large-format console in a compact and elegant desktop package. The unit provides a world-class Audient console mic pre, high performance convertor technology, console-style monitor control, JFET D.I., and the revolutionary ScrollControl. The iD4 is USB bus-powered and compatible with Mac OS X, Windows, and iOS.
Key Features

1 x Class-A Audient console mic preamplifier
1 x Discrete JFET instrument input
High-performance convertors
iD ScrollControl mode
Zero-latency monitoring with monitor mix and pan
Main speaker output
Independent Class-AB headphone output (dual inputs)
Monitor control functionality
USB 2.0 bus powered
24-bit/96kHz
All-metal enclosure
Windows, Mac OS X, and iOS compatible

Microphone Preamps

Use a class-A microphone design developed by legend David Dearden and optimised over 18 years of refinement
Clean, punchy and musical character
Flexible topology – design optimised gain range between 0 – 70 dB gain
Low Noise Floor:  30,000 times quieter than the signal level
Wide Bandwidth: Preserving your transient detail
Transformer-less, RF-immune input stage for detailed resolution

ConvertorsiD4 provides you with high-performance AD-DA convertors. Quality in the analogue stages of design comes from years of experience as analogue console designers, and when coupled with outstanding convertor technology it enables you to hear audio as it’s supposed to sound
ScrollControlWith a touch of a button iD4’s volume encoder becomes a virtual scroll wheel, enabling you to adjust DAW hosts, plug-in parameters and even scroll through your iTunes library, just like you’re adjusting a piece of hardware. Wherever your mouse pointer hovers, the iD knob can scroll to control, and when you’re not using ScrollControl, pressing iD4’s volume encoder activates DIM, enabling you to quickly reduce the playback volume
Plug and PlayiD4 has a harmonically rich JFET D.I input. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard, or drum machine straight in and start recording instantly
Monitor PaniD4’s Monitor Pan feature enables you to pan both the mic pre input and D.I input from left to right, making it easy for you to create a balanced headphone mix that suits you
Monitor MixiD4’s Monitor Mix feature lets you monitor a blend of both iD4’s inputs and your DAW playback, providing near-zero-latency monitoring while recording. Designed with creativity in mind, Monitor Mix allows you to quickly blend in your DAW playback and start recording along to your multitrack instantly, enabling you to focus on the music and lay down your track effortlessly
Dual Headphone OutputsFeaturing a dual headphone output, iD4 enables you to collaborate with your friends and other artists. Whether you’re recording a guitar and a vocal, or just listening to music together, iD4 lets you plug in two sets of headphones, making it the perfect tool for jamming with your friends and capturing creativity as it happens. The dual headphone output also has both a jack and mini jack output, so no more need to carry around a headphone adapter
Built to LastiD4 has been designed to last, from its all-metal construction, hand-finished aluminium knobs and high-grade component selection, iD4 will stand up to countless late nights in the studio and days on the road

Specifications

System Requirements

Mac Requirements
OS X: 10.7.5 (Lion) or laterMac: Intel CPU, 1 GB RAM minimum

Windows Requirements
Windows 7 or later (32- or 64-bit)Intel Core 2 @ 1.6 GHz, or AMD equivalent1 GB RAM minimum

iOS
Device running iOS 6 or laterApple Lightning to USB camera adapterUSB 2.0 powered hub

Input

Gain
Microphone: 0 to 66 dB (inc. +10 dB software boost)Line Level: -10 to 56 dB (-10 dB hardwired line pad)D.I.: -5 to 45 dB (inc. +10 dB software boost)

Phantom Power
48 V ±4 V at 10 mA/channel (12 VDC only)

EIN
75 dB at 1 kHz

Maximum Input Level
Mic: +12 dBu (0 dBFS digital Maximum)DI: +8 dBu (0.6% THD typical)

Input Impedance
Mic: 2.8 kOhms BalancedLine: > 8 kOhms BalancedD.I.: > 500 kOhms Unbalanced

Frequency Response
Mic/Line: ±0.1 dB, 20 Hz to 22 kHz @ min. gain, ±1.0 dB, 20 Hz to 22 kHz @ max. gainD.I.: ±0.1 dB, 20 Hz to 22 kHz

Crosstalk
< -91 dBu

THD+N
Mic: 0.0015% (-96.5 dBu)D.I.: < 0.1% all musical 2nd and 3rd harmonics, typically 0.05% at 0 dBu

SNR
Mic: 96 dB un-weighted, 99 dB A-weightedD.I.: 87 dB un-weighted, 90 dB A-weighted

XLR / Phone Jack
Combo XLR-1/4" / 6.35 mmXLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)1/4": Tip (Hot), Ring (Cold) & Sleeve (Shield)

Phono (1/4")
DI: 1/4" / 6.35 mm Tip (Hot) & Sleeve (Shield)

A/D – D/A Conversions

Maximum
A/D: +12 dBu (0 dBFS digital maximum)D/A: +12 dBu (0 dBFS digital maximum)

Reference
A/D: +12 dBu = 0 dBFSD/A: +12 dBu = 0 dBFS

Frequency Response
A/D: ±0.1 dB, 10 Hz to Fs/2D/A: ±0.1 dB, 10 Hz to Fs/2 (flat to Nyquist)

Impedance
D/A: < 100 Ohms

Crosstalk
A/D: -100 dBu at 1 kHz and 10 kHzD/A: < -104 dBu at 1 kHz and 10kHz

THD+N
A/D at -1 dBFS (1 kHz): < 0.001% (-100dB)A/D at -6 dBFS (1 kHz): < 0.0011% (-99.1 dB)D/A THD+N @ -1 dBFS (1 kHz): < 0.0015% (-96.5 dB)

Dynamic Range
A/D: 112 dB un-weighted, 114 dB A-weightedD/A: 112 dB un-weighted, 115 dB A-weighted

Jack
DA: 2x 1/4" / 6.35 mm, Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphones

Maximum Output Level
+12 dBu (0dBFS digital maximum)

Reference Level
+12 dBu = 0 dBFS

Voltage Gain
+6 dB (optimised for loudness)

Output Impedance
< 30 Ohms Unbalanced

Frequency Response
±1.0 dB, 10 Hz to Fs/2 (load dependant)

Crosstalk
-98 dBu at 1 kHz & 10 kHz

THD + N
THD+N @ -1 dBFS (1 kHz): < 0.0012% (-98.4 dB)

Dynamic Range
106 dB un-weighted108 dB A-weighted

Maximum Level
Max Level into 30 Ohms: +3 dBu, 0.008% THD+N, Power: 80 mWMax Level into 60 Ohms: +6 dBu, 0.005% THD+N, Power: 80 mWMax Level into 600 Ohms: +12 dBu, 0.0025% THD+N, Power: 31 mW

Jack
TRS Jack: 1/4" / 6.35 mm Tip (Left), Ring (Right) & Sleeve (Shield)Mini Jack: 1/8" / 3.5 mm Tip (Left), Ring (Right) & Sleeve (Shield)

USB

Bus Power
500 mA @ 5 V system limit420 mA @ 5 V maximum (no 48 V)

Input Channels
2 x Analogue

Output Channels
2 x Analogue

DSP
DSP Mixer Latency: Round Trip (in-to-out)44.1 kHz 1.583 ms48.0 kHz 1.458 ms88.2 kHz 0.792 ms96.0 kHz 0.729 ms

Power Supply

Power
USB 2.0 Powered (2.5 W Maximum)

General

Dimensions
133.0 x 120.0 x 40.7 mm

Weight
1.0 kg
