Description

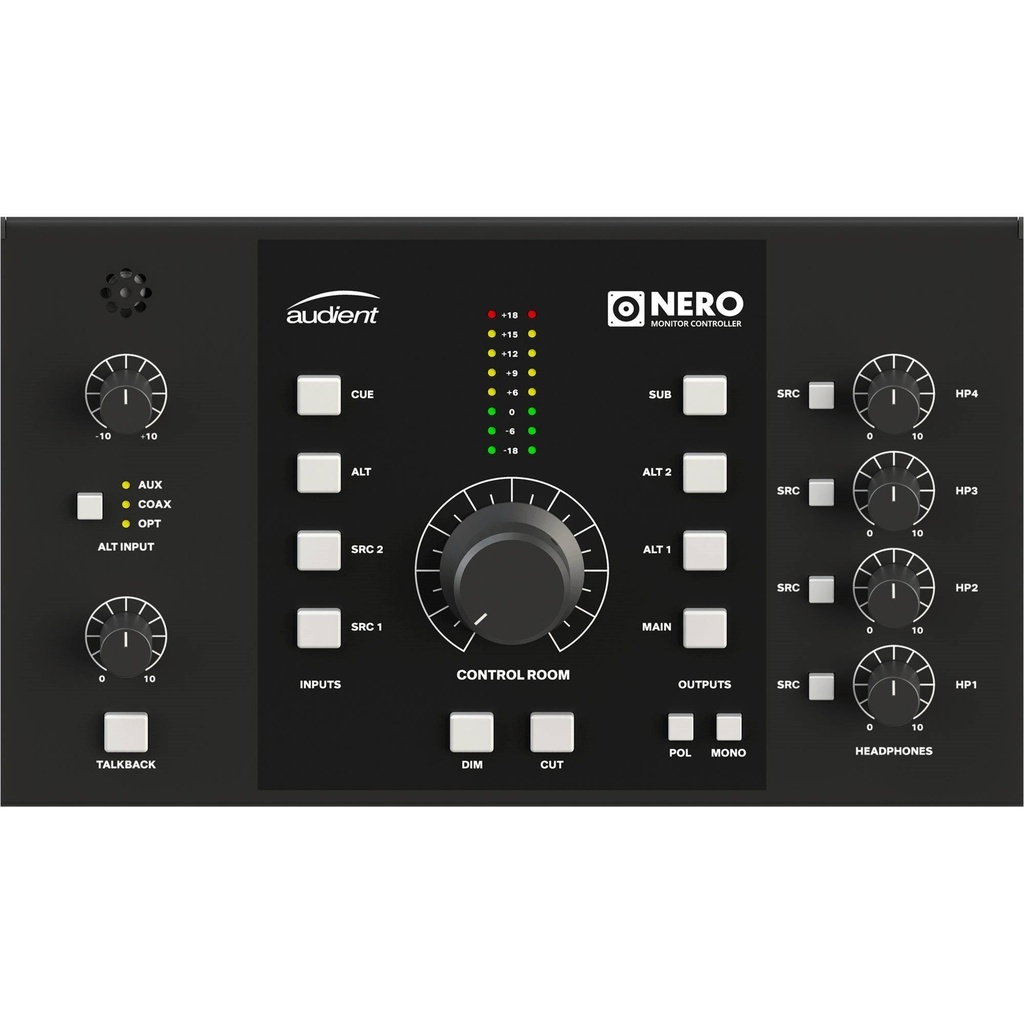

The Audient NERO Desktop Monitor Controller is a professional-grade, tabletop monitor stereo monitor controller for engineers with an expanding setup. The unit allows you to monitor three sets of speakers, giving you the ability to set and match levels for all the speakers, which is quite handy for comparisons.
With three independent inputs, you can choose between sources as well. There are a few uses for this; for instance, you can route different inputs to the cue mixes, so the artists can hear things as they’d like while you record.
You can assign the subwoofer to any monitor path. You’ll also note the presence of one monitor-grade headphone amp and three headphone outputs suitable for cue mixes, covering you and your artists.
Audition your mixes quickly by switching among your monitors, all while maintaining separate control of the subwoofer. You can define the dim position yourself, so that the mix automatically attenuates, at the press of a button, to the desired level you wish.
However you choose to route your setup, you can save your workflow so that you can call up your default configuration however you want. Also, Smart Touchpoints enable you to configure different routing schemes on the fly, enabling quick comparisons exactly how you’d have them.
Monitor stereo information with Sum and Difference mode and permanently assign a speaker output to mono, if you’re working with a mono reference speaker. With cue-mix monitoring, you can reference what your artists are hearing, and then go back to your mix.
Controls are on hand for talkback mics. A talkback mic is even built into the Nero, but you can also use dynamic or condenser microphones if you prefer. With Audient’s Precision-Matched Attenuation Technology, you can be sure there will be no drift between the left and right channels.
Key Features:
- 4 x stereo analogue sources.
- 2 x line-level inputs.
- 1 x dedicated cue mix input.
- 1 x aux input on RCA or mini-jack.
- Optical and coaxial S/PDIF inputs.
- 3 x stereo speaker outputs.
- 1 x assignable sub output.
- 4 x headphone outputs with flexible routing.
- Smart touchpoints for user customisation.
- Talkback input.
- Internal microphone.
- External talkback input.
- Dim, cut, mono, and polarity monitor controls.
Specifications
Inputs | |
Gain Trim Range | Auxiliary Input: ±12 dB |
Nominal Input Level | Balanced: +4 dBu Unbalanced: -10 dBV |
Maximum Input Level | Balanced: +18 dBu Unbalanced: +27 dBu Talkback: +2 dBu |
CMRR | Balanced: > 50 dB Balanced Mic: > 80 dB at 1 kHz |
Microphone EIN | -128 dBu |
Gain | Talkback Input: 4 to 44 dB |
Phantom Power | Talkback Input: 48 V |
Digital Inputs | |
Connections | TOSLINK and Coaxial |
Format | S/PDIF |
Sample Rates | 44.1 to 192 kHz |
Bit Depth | Up to 24-Bit |
Outputs | |
Maximum Output Level | Speakers: +12 dBu |
Minimum Load | Headphone Outputs: 12.8 Ohms |
THD+N | Speakers: 0.0015% 0 dBu 1 Kilohms Headphones: 0.009% at 30 Ohms, 0.009% at 60 Ohms, 0.008% at 600 Ohms |
SNR | 100 dBu |
Crosstalk | Speakers: > 100 dB Headphone Outputs: > 62 dB |
Frequency Response | 20 Hz to 22 kHz ±5 dB |
Attenuation | > 110 dB |
Peak Power Output | 90 mW at 30 Ohms 56 mW at 60 Ohms 7.35 mW at 600 Ohms |
Power Supply | 12 VDC Centre Positive DC Adapter, 2 A |
Dimensions (W x L x D) | 10 x 3 x 6.1″ / 255 x 75 x 155 mm |
Weight | 4.4 lb / 2 kg |
