Audio Over Cat Cable Receiver Mic & Line

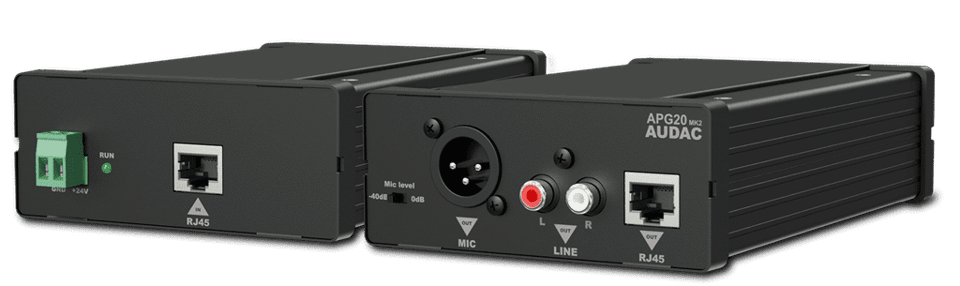

The APG20 is an audio receiver gateway converting databus transmitted audio signals to standard line and microphone level signals. The audio output of the APG20 can be fed to regular inputs on audio amplifiers, pre-amplifiers, mixers or many more. In combination with the matching input modules (WLI and WMI) it offers a solution for two channel audio transmission (line & microphone) covering distances up to 300 meters over standard UTP CAT5E (or better) cabling. Distances up to 600 meters can be achieved when applying additional power supplies. Due to the differential bus input with increased voltage levels, the received signals are insensitive for noise, interference and attenuation over the long transmission distance. This offers the appropriate solution for high quality audio transmissions in long distance applications while maintaining high quality audio reproduction. The bus input carrying both audio channels, an RS-485 data channel and 24 Volts distribution to the transmitter end is implemented using an RJ45 connector. The audio outputs are performed using dual RCA (line) and female XLR (microphone) connections. The XLR output is accompanied with a switch allowing selection between a -40 dB and 0 dB output level. The signals carried on the RS-485 pair of the databus are linked to an RJ45 output connection, allowing daisy chaining to the controlled equipment. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.

SYSTEM SPECIFICATIONS

Connection standard
TIA/EIA T568B

Cabling
UTP CAT5E (or better)

Inputs
Type
Audio / RS-485 / 24V DC Bus


Connector
RJ45

Power
Consumption
0.8 W (PSD241 included)


Supply
24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)

Max. cable length
Without external PSU
300 m


With external PSU
600 m

Outputs
Microphone
Type
1 x Microphone outputs (Level switchable 0 dB ~ -40 dB)



Connector
XLR male


Line
Type
1 x Line output



Connector
Dual RCA


Data link
Type
1 x RS-485 data link outputs



Connector
RJ45

PRODUCT FEATURES

Dimensions
108 x 44 x 165 mm (W x H x D)

Weight
0.760 kg

Colours
Black

Construction
Aluminum

Accessories
Included
PSD241 – Power supply 24V / 1.67 A (Efficiency Level V)


Optional
ARJ03P junction box



PSD24x external Power supply



MBS1xx Wall mounting brackets



WLI18 Wall line input unit



WMI18 Wall microphone input unit
