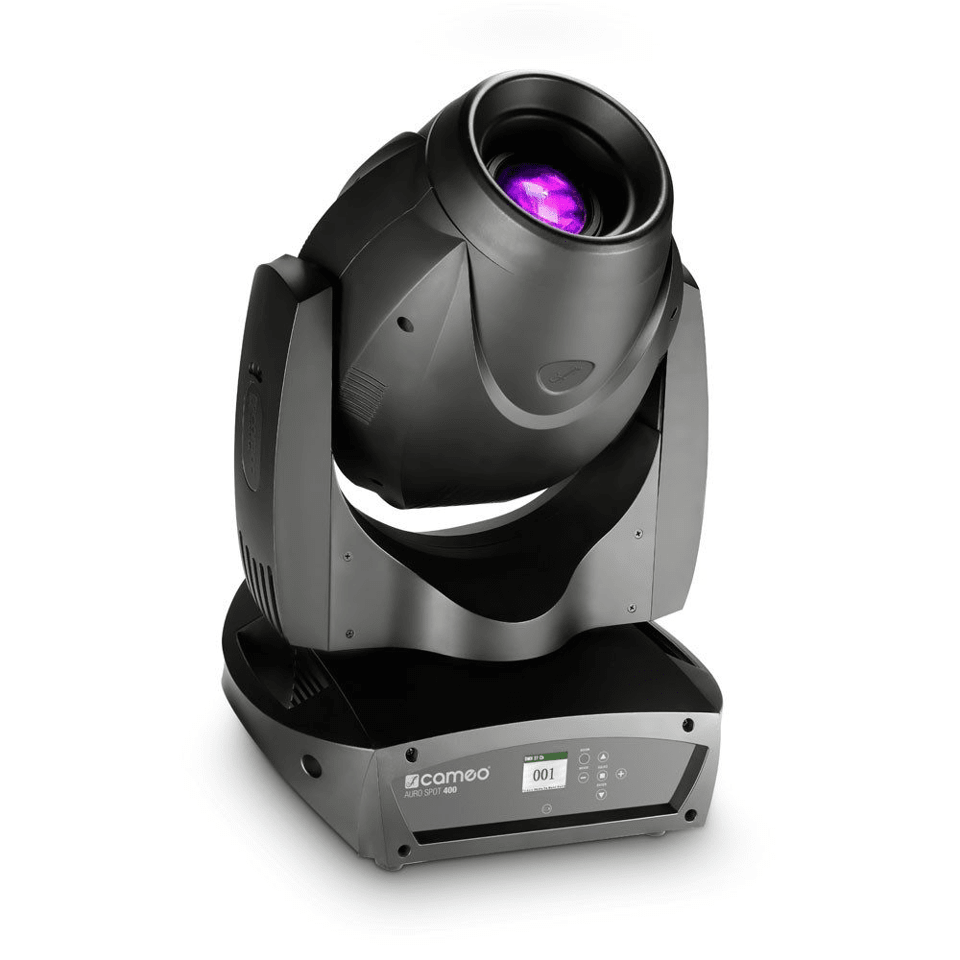

AURO SPOT 400 LED Moving Head

Description

Featuring 16-bit resolution and high speed 3-phase motors for 630° pan and 230° tilt,the Cameo AURO SPOT 400 is a professional moving head with RDM capability and powerful, ultra bright single LED. The fixture sports 2 gobo wheels, rotating and fixed gobos, 2 color wheels and a choice of 3 rotating prisms enabling spectacular lighting and stunning effects with 12 intense colors, split colors and two temperatures of white.
The AURO SPOT 400 provides 5-channel, 19-channel and 27-channel DMX control and auto programs , so that operation as master, slave and standalone is possible. Functions include motorized focus, frost filter, a choice of 4 smooth dimming curves, shake effects and a fast 0 – 20 Hz cycle strobe.
The heavy-duty compound enclosure integrates a battery-powered 6-button display that allows convenient offline configuration, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON connectors and a temperature-controlled low-noise fan. The multi- voltage AURO SPOT 400 runs on 100 – 240 V AC.


RDM-capable moving head with high-power single LED


200,000 lx @ 1 m, 4470 lm


High-speed 3-phase motors


Motor focus, pan and tilt with 16-bit resolution


Automatic positioning correction


2 color wheels, 12 colors, split colors, warm and cold white plus open


2 gobo wheels, 7 rotating, 9 fixed gobos plus open


Frost filter


Rotating 3, 5 and 8-facet prisms


0 – 20 Hz strobe


Smooth 100 – 0% dimming with 4 selectable curves


Temperature controlled low-noise fan


3 and 5-pin DMX and Neutrik powerCON inputs and outputs


Battery powered 6-button display for offline configuration

Specifications

Product type
LED Moving Lights

Type
Moving Head

Colour spectrum
cold white

Number of LEDs
1

Colour temperature
9300 K

LED type
180 W

Refresh rate
3600 Hz

Dispersion
12 °

Number of gobos
16

Gobo Size
Exterior Diameter: 20.4 mm – Motif: 16.5 mm

DMX input
XLR 3-pin male , XLR 5-pin male

DMX output
XLR 3-pin female , XLR 5-pin female

DMX mode
19-channel , 27-channel , 5-channel

DMX Functions
3 x Prism , Auto programs , Colour wheel , Dimmer , Dimmer Curves , Focus , Frost , Gobo Rotation , Gobo Shake , Gobo wheel , Motion Macro , Pan/Tilt , Pan/Tilt fine , Stroboscope

PAN movement
540° / 630°

TILT movement
230°

Standalone modes
Auto programs , Master/Slave Mode , Static Mode

Controls
– , + , Battery Display , Down , Enter , Mode , Up

Indicators
colour LC display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
290 W

Power connector
Neutrik PowerCon

Housing material
ABS , metal

Cabinet colour
Black

Cooling
temperature-controlled fan

Illuminance
200000lx @ 1m

Luminous flux
4470 lm

Width
405 mm

Height
565 mm

Depth
285 mm

Weight
16 kg

Features
1m power cable with Neutrik powerCON connector , 2 x omega mounting
