Bodypack Transmitter – ANNY (B6 Frequency Band)

Bodypack Transmitter – ANNY® (B6 Frequency Band)

Overview:

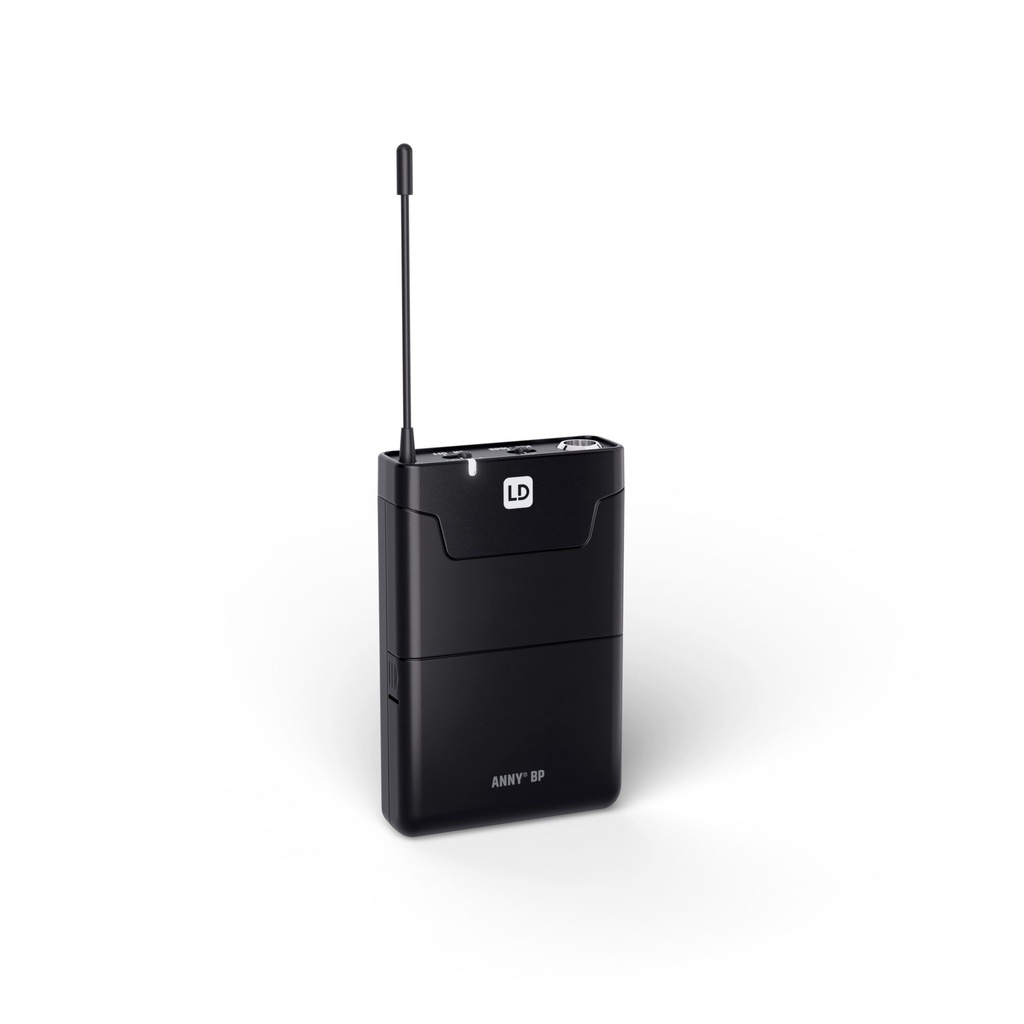

The ANNY® bodypack transmitter operates in the 655 – 679 MHz frequency range, making it a reliable solution for wireless audio transmission. It comes equipped with a mini-XLR input and an input level switch, enabling compatibility with both active and passive microphones and instruments. With an impressive range of up to 80 metres and a transmission power of 10 mW, this bodypack transmitter ensures consistent and clear audio quality.

Key Features:

• Range: Up to 80 meters

• Power Supply: Includes 2x AA batteries (up to 8 hours operating time)

• Mini-XLR Input: Compatible with a wide range of microphones and instruments

• Input Level Switch: Choose between MIC, 0dB, or -10dB

• Standby Mode: Convenient mute function for breaks

• Status LED: Integrated LED shows battery status (white for on, red for low battery)

• Easy Synchronization: Infrared sync with ANNY® receiver for quick setup

Specifications:

• Product Type: Battery-powered PA speaker accessories

• Type: Bodypack

• Transmission Frequency Range: 655 – 679 MHz

• Channels: 12

• Inputs: Mini-XLR (3-pin)

• Frequency Response: 45 Hz – 20 kHz

• Signal-to-Noise Ratio: 100 dB

• Rated HF Output Power: 10 mW

• Controls: Gain (3-stage input sensitivity), Power On/Off, Standby

• Indicators: Battery status LED (low), Power

• Power Supply: 2 x AA battery

• Operating Time: Over 8 hours (with alkaline batteries)

• Dimensions:

  • Width: 64 mm

  • Height: 100 mm

  • Depth: 21 mm

• Weight: 0.09 kg

• Other Features: Includes batteries, IR frequency synchronization, standby, and switchable gain

What’s Included:

• ANNY® Bodypack Transmitter

• 2x AA Batteries
