ltra-bright 60 W OSRAM RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white
Individually controllable 4-segment RGB LED ring with single pixel control
2 high-speed, high torque motors for ultra-fast unlimited pan and tilt
Motor zoom with 4° to 30° range
Spectacular automated modes
4 selectable dimming curves
4 DMX modes, standalone or master/slave operation
2.5″ TFT display and touch panel for intuitive configuration
Omega mounting bracket included

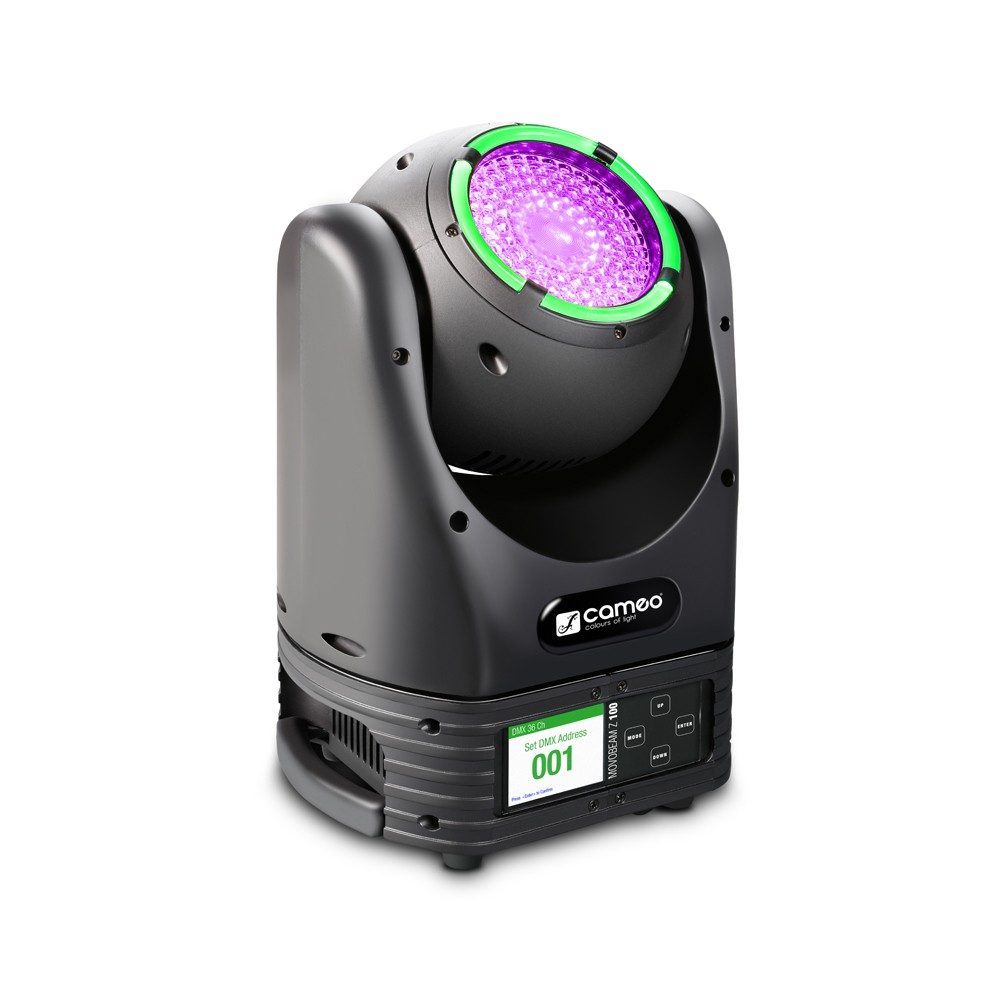

Taking the success of the MOVO®Beam 100 one step further, the Movo® Beam Z 100 is an ultra-fast moving head featuring a powerful motor zoom. With a zoom range of 4 to 30 degrees, it delivers tightly focussed beams, beatiful wash and amazing zoom effects. A central high-performance 60 watt OSRAM LED with a 50,000 hour lifespan produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments that enable a spectacular lighting performance.
Driven by two high-speed, high-torque motors the MOVO® BEAM Z 100 provides endless pan and tilt rotation with smooth precision. It sports a bright 2.5″ TFT display with touch sensitive buttons for convenient configuration, 3 modes of DMX control and spectacular automated modes. Seamless dimming with 4 selectable curves and a rapid strobe add to a brilliant and exciting performance.
The MOVO® BEAM Z 100’s compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.
Product type
LED Moving Lights
Type
LED Moving Effects
Colour spectrum
RGBW
Number of LEDs
1
LED type
60W OSRAM (approx. 50.000 operating hours)
Refresh rate
1000 Hz
Dispersion
4 – 30 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
16-channel , 36-channel , 5-channel
DMX Functions
Auto programs , colour fade , colour jump , colour macro , Colour Ring Macro , Colour Ring Macro Speed , Dimmer Colour Ring , Dimmer Curve , Dimmer Fine , PAN , PAN UNLIMITED ROTATION , Pan/Tilt fine , Pan/Tilt Macros , Pan/Tilt Speed , RGB Ring 1-4 , RGBW , Strobe Colour Ring , Stroboscope , TILT , TILT UNLIMITED ROTATION , Zoom
PAN movement
unlimited
TILT movement
unlimited
Standalone modes
Auto programs , Static Mode
Controls
Enter , Mode , Value Down , Value Up
Indicators
2,5” TFT Display
Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz
Power consumption
140 W
Power connector
Blue and white power I/O
Housing material
ABS plastic , metal
Cabinet colour
Black
Cooling
fan
Illuminance
8500lx @ 3m
Luminous flux
1220 lm
Width
210 mm
Height
299 mm
Depth
210 mm
Weight
6,5 kg
