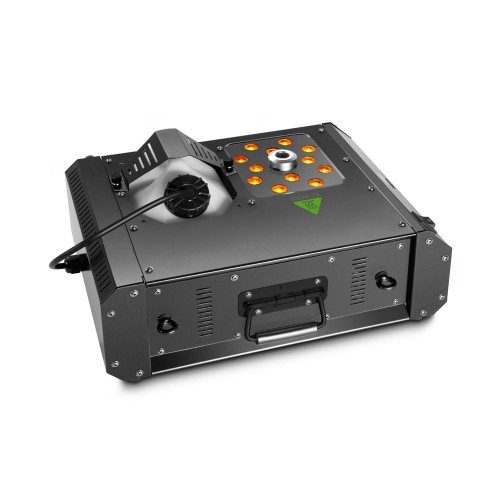

Cameo Vertical Fog Machine with RGBA LEDs for Coloured Fog Effects

1,200 W heating element and high-performance pump for powerful blasts of fog


12 x 10W RGBA 4-in-1 LEDs for uniform fog illumination


Vertical or horizontal mounting


Top or bottom fluid tank placement options


Bottom tank placement enables easy overhead installation for downward jets


Automatic shutdown prevents pump damage when fluid tank is empty


LED indicators for fluid tank and operating status


4-channel DMX control


Includes handheld remote with illuminated buttons and controls for Continuous, Timer, Manual, Fog Output, LED Brightness and Colour plus 10m cable


Description

Creating spectacular moods and effects is a real blast with the Cameo Steam Wizard 2000. It produces dense, even bursts of water-based fog with lengths of 7 metres that are simultaneously illuminated by 12 high-power 10 watt 4-in-1 LEDs for dramatic scenes and rich RGBA colours. With top and bottom placement options for the fluid tank, this high-velocity vertical fog machine permits both ground operation and easy overhead installation. It can also be mounted horizontally.
The Steam Wizard 2000 utilizes a powerful 1,200 watt heating element and high-performance pump to ensure consistent output with minimum warm-up time between jets. LEDs indicate the operating status and fluid level. The automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. The Steam Wizard 2000 is operated via DMX in 4-channel mode or the included remote with illuminated buttons and rotary controls providing easy visibility in the dark.
For best results, use Cameo Fast Fluid only, which is specially designed for Cameo Steam Wizard Series products.

slide 1 of 1


Specifications

General

Product type
Fog and Wind Machines

Type
Fog machine with LEDs

Power
1200 W

Output volume
approx. 500 m³/min

Range of fog output
approx. 7 m

Warm-up time
approx. 3 min

Fog duration
approx. 10 sec.

Reheating time
approx. 8 sec.

Fluid tank capacity
2.5 l

Fluid Consumption
approx. 50 ml/min

Number of LEDs
12

LED colour spectrum
RGBA

LED type
10 W 4 in 1 LED

Remote connection
XLR 5-pin male

Remote cable length
10 m

Remote functions
colour change, continuous operation, duration, Interval, LED brightness, Manual control, output level

DMX input
XLR 3-pin male

DMX output
XLR 3-pin female

DMX mode
4-channel

DMX Functions
colour change, colour fade, colour jump, Dimmer, output level, strobe

Controls
Enter, Mode, Value Down, Value Up

Indicators
4-digit LED display

Operating voltage
230 V AC, 50 Hz

Fuse
F8AL / 250 V

Power consumption
1200 W

Power connector
IEC power connector female

Housing material
Metal

Cabinet colour
Black

Width
421 mm

Height
202 mm

Length
322 mm

Weight
9 kg
