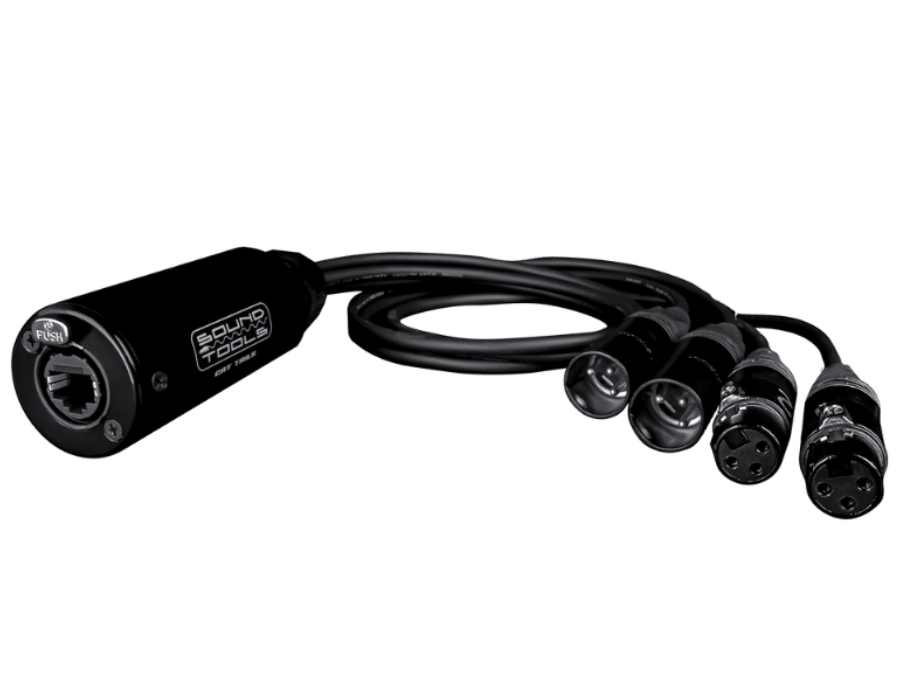

CAT Tails FMX – Two Female & Two Male XLR

CAT Tails Send Receive/Receive Send

Analog Audio Over Cat/Ethernet Breakout Snake

Simplify your smaller jobs with SoundTools modular stage snake units. SoundTools CAT Tails Send-Receive is an easy-to-use Analog-Audio-Over-Cat breakout that eliminates the need for several bulky cables. Combine with our CAT Box send/receive units to both send and receive through the same shielded ethernet cable.
-Perfect for lightweight, portable set ups for DJs, weddings, or recordings.
-Four 24” AES3 grade cables plug directly into analog or digital consoles.
-Compatible with 48-volt phantom power when using shielded Cat5e or better cable.
-Four channels available in 2 female XLR, 2 male XLR or 2 male XLR, 2 female XLR configurations with clearly laser-etched numbers to keep track of channels.

DIMENSIONS

• Unit
• Height x Width x Depth:
• 1.475 in (37.465mm) x 29 in (736.6mm) x
• 1.475 in (37.465mm)
• Weight: .6 oz (.017 KG)
• In Package
• Height x Width x Depth:
• 4.5 in (114.3mm) x 8.75 in (222.25mm) x
• 2.25 in (57.15mm)
• Weight: 16 oz (.45 KG)

SYSTEM REQUIREMENTS

• *Requires shielded cable for full functionality
• Analog audio (including phantom power!)
• DMX signals
• AES3 compatable
• Intercom

TECHNICAL SPECIFICATIONS

• 4 channels of balanced analog audio over Cat5
• Two XLR Inputs and Two XLR Outputs
• 4 high qualilty AES3 cable breakouts
• Compatible with DMX, COM and other 3-pin XLR based COM systems
• AES72-2O compliant
• Available in 2 male/2 female or 2 female/2 male configurations

DOCUMENTATION

• – Wiring Diagram
• – Instructions

PACKAGE CONTENTS

• CAT Tail (male or female unit)
• User documentation

WARRANTY INFORMATION

• Lifetime Happy Human Warranty

PART NUMBER

• CTMFX : 2 Male XLRs (Outputs) + 2 Female XLRs (Inputs)
• CTFMX : 2 Female XLRs (Inputs) + 2 Male XLRs (Outputs)
