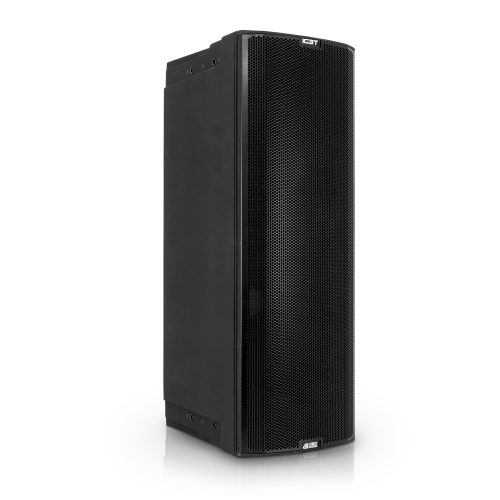

dB Technologies INGENIA IG3T 2-Way Active Speakers

The INGENIA IG3T 2-Way Active Speaker from dB Technologies features 2 x 10″ woofers, a 1.4″ compression driver, and is equipped with a 900W RMS Digipro G3 digital amplifier. It combines high power, lightweight design, and SMPS technology with PSU auto-range. It is equipped with an infrared system in the two handles on top and bottom sides. The horn of the INGENIA IG3T is horizontally symmetric and vertically asymmetric (narrower in the upper part and wider in the lower). The DSP doesn’t act only on the compression driver, but also on woofers, ensuring maximum intelligibility and transparency in the whole frequency range.

Features
2-way active speaker
2 x 10” woofer, 1.4” compression driver
900W RMS class-D Digipro G3 amplifier
Asymmetrical vertical coverage
Digital steering coverage
Element position detection
Speakers with neodymium magnet
User-friendly interface (OLED-encoder)
Unique speaker lock system
Delay on board
Microphone HPF and notch filter (variable frequency)
Applications
Compact live sound reinforcement system
Permanent installation in theatres, houses of worship, convention centres
Portable PA, retail, clubs, ballrooms, houses of worship, corporate AV, live theatre
Specifications
System Specifications
Speaker Type 2-way active speaker
Acoustic Specifications
Frequency Response -10 dB: 53 to 20000 Hz
-6 dB: 57 to 19200 Hz
Maximum SPL 132 dB
High Frequency Drivers Size: 1.4″ (3.5 cm), 3″ (3.6 cm) voice coil
Directivity (H x V): 110 x 90° (20 /-70°)
Type: Neodymium compression driver
Horn Vertical asymmetric
Crossover Frequency 1100 Hz
Low Frequency Drivers Size: 2 x 10.0″ (25.4 cm), 2.5″ (5.1 cm) voice coil
Type: Neodymium
Amplifier
Technology Digipro G3
Class Class D
RMS Power 900 W
Peak Power 1800 W
Processor
Controller DSP 56-bit
Convertor AD / DA: 24-bit / 48 kHz
Limiter Dual active peak, RMS, thermal
Input
Signal Input 1 x Combo IN (XLR + Jack 6.3 mm)
User Interface OLED display and rotative knob with switch
Signal Output 1 x XLR link out
Service Port Mini USB
Connector Mains: New Neutrik NAC3PX
Features
Positioning Self-rotating display
Accelerometer
Infrared communication and display mirroring
10 / 5 / 0 / -5 / -10° digital steering
Equaliser Acoustic correction (Low / high shelving, mid attenuation)
Microphone HPF and notch filter (variable frequency)
Delay On Board:

Stage Alignment: 49.2′ (15.0 m)
System Delay: 143.4′ (43.7 m)
Mechanics
Housing Polypropylene PP reinforced
Grille Full / invisible screws; flyable
Handles 1 x Top
1 x Bottom
Pole Mount Standard D36 mm
Dimensions (W × H × D) 11.02 x 31.73 x 15.47″ (27.99 x 80.59 x 39.29 cm)
Weight 49.0 lb (22.2 kg)
