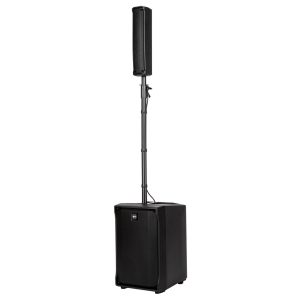

EVOX JMIX8 Active Two Way Array Music System With Digital Mixer

128 dB Max SPL
1400 Watt 2-way peak power
8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
DSP Processing with FiRPHASE
12″ woofer, high power 2.5″ voice coil
8 x 2″ ultra compact fullrange 1.0″ voice coil
2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
24,4/53.8 kg/lbs

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer


BRING THE PARTY WITH YOU



ONBOARD DIGITAL MIXER
All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.
Read More


EVOX APP
The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.
iOS APP Download ANDROID APP Download





POWERFUL CLASS D AMPLIFIER
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS
HIGH FREQUENCIES – The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.
LOW FREQUENCIES – The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
Read More

READY TO PLAY IN A FEW SIMPLE STEPS
PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.

J SYSTEM CONFIGURATIONS
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
Read More

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
Read More

SPECIFICATIONS

Acoustical specifications

FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

HORIZONTAL COVERAGE ANGLE:
120°

MAX SPL @ 1M:
128 dB

VERTICAL COVERAGE ANGLE:
30°

Transducers

FULLRANGE:
8 x 2.0”, 1.0” v.c

WOOFER:
12”, 2.5” v.c

Input/Output section

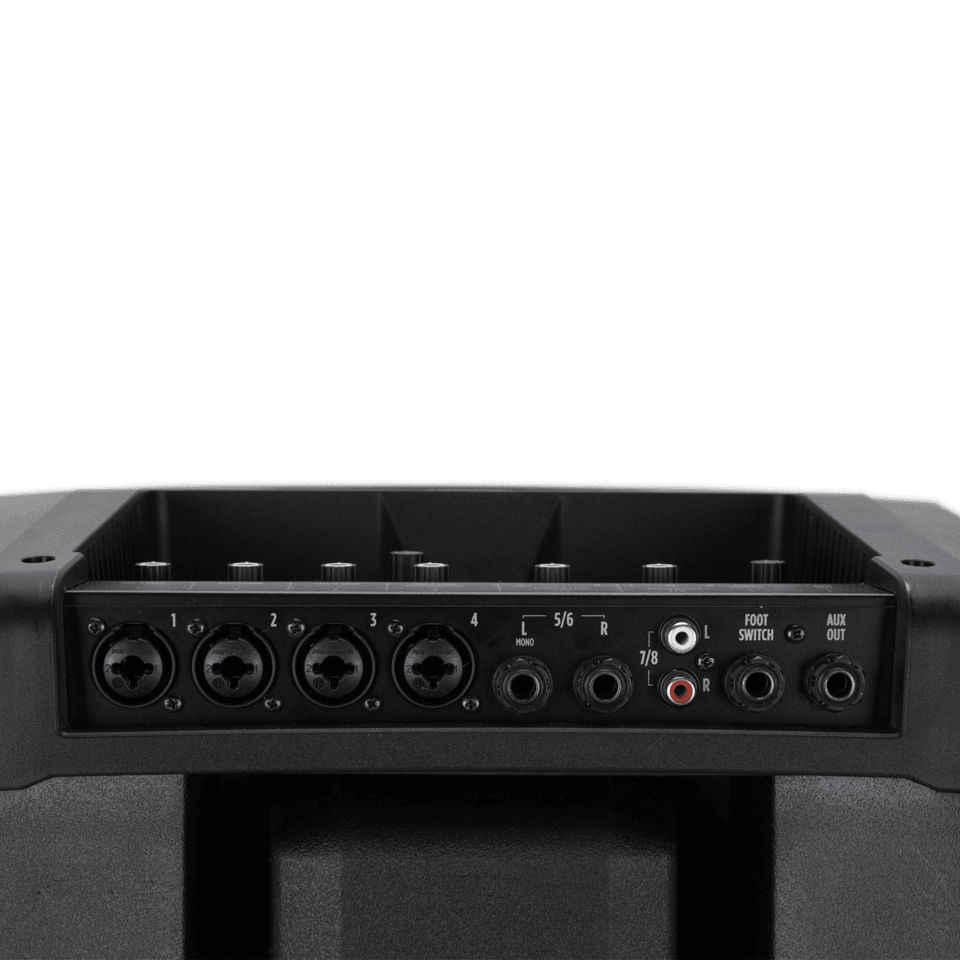

INPUT CONNECTORS:
XLR, Jack

INPUT SENSITIVITY:
-2 dBu/+4 dBu

INPUT SIGNAL:
bal/unbal

OUTPUT CONNECTORS:
XLR

Processor section

CONTROLS:
Volume, Boost, Mic/Line

CROSSOVER FREQUENCIES:
220 Hz

LIMITER:
Soft Limiter

PROTECTIONS:
Thermal, RMS

Power section

CONNECTIONS:
VDE

COOLING:
Convection

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

TOTAL POWER:
1400 W Peak, 700 W RMS

Electronic specifications

FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
0.004% A-Weighted

Processing

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

DYNAMIC RANGE:
108

PROCESSING CHANNELS:
8

SIGNAL PROCESSING:
32 Bit Floating Point

Inputs

A/D DYNAMIC RANGE (DB):
108 dB

GAIN RANGE:
0 dB ÷ 45 dB

GAIN SELECTION:
0 dB ÷ 45 dB

STEREO LINE GAIN SELECTION:
0 dB ÷ 45 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-114 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
3 kohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
11 kohm

LOW CUT:
20 Hz ÷ 1000 dB

MIC:
4

PHANTOM POWER +48V:
Yes

REMOTE CONTROLLED STORABLE GAIN:
Yes

STEREO LINE:
2

STEREO LINE INPUT IMPEDENCE (KOHM):
11 kohm

Outputs

AUX OUTPUT:
1

AUX SEND:
1

Outputs specifications

AUX OUT IMPEDANCE (OHM):
150 ohm

AUX OUT LEVEL (DBU):
19 dBu

D/A DYNAMIC RANGE (DB):
108 dB

MAIN OUT IMPEDANCE (OHM):
150 ohm

MAIN OUT LEVEL (DBU):
19 dBu

Compressors

RCF COMPRESSORS:
4 mono (6 preset)

EQ

DESCRIPTION:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.

INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving

Auxiliary sends

AUX:
1 PRE/POST

FX POST:
1

Internal Effects

MULTIFX INSERT EFFECTS:
1

SEND EFFECTS:
1

Mastering processors

MAIN OUT PROCESSORS:
1

USB audio

PLAY TRK:
2

Other features

FOOTSWITCH:
Yes

Electrical specifications

POWER SUPPLY:
Internal

Standard compliance

CE MARKING:
Yes

Physical specifications

CABINET/CASE MATERIAL:
PP Composite

COLOR:
Black

GRILLE:
Steel

HANDLES:
1 Top

Size

DEPTH:
460 mm / 18.11 inches

HEIGHT:
623 mm / 24.53 inches

WEIGHT:
22.2 kg / 48.94 lbs

WIDTH:
400 mm / 15.75 inches

Shipping informations

PACKAGE DEPTH:
581 mm / 22.87 inches

PACKAGE HEIGHT:
676 mm / 26.61 inches

PACKAGE WEIGHT:
29 kg / 63.93 lbs

PACKAGE WIDTH:
451 mm / 17.76 inches
