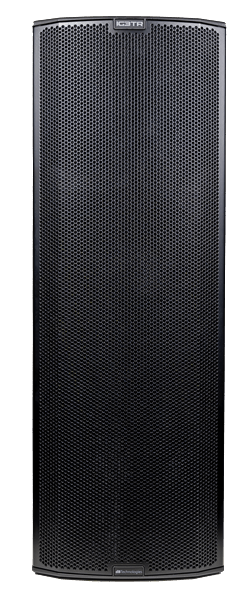

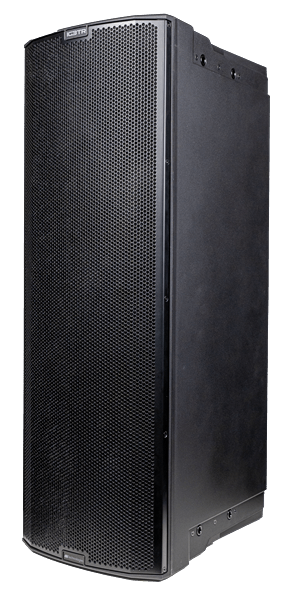

The dB Technologies INGENIA IG3TR is a versatile 2-way active column speaker engineered for live sound and installation. Powered by a Class-D Digipro G3 amplifier delivering 900W RMS, it features two premium 10″ neodymium low-frequency transducers and a 1.4″ compression driver for high-impact, intelligible sound at up to 132 dB SPL.
Equipped with infrared detection technology, two stacked IG3TR units automatically configure as a coupled column for optimal coverage. The asymmetrical horn design provides wide horizontal dispersion with adjustable vertical coverage via digital steering, eliminating the need to physically tilt the cabinet. RDNet networking, USB and OLED interface make it suited for both touring and permanent install.
Specifications
- Speaker Type: 2-Way Active Column Speaker
- Frequency Response (-10dB): 51 – 20,000 Hz
- Max SPL: 132 dB
- RMS Power: 900 W
- Peak Power: 1,800 W
- Amplifier: Class-D Digipro G3
- HF Driver: 1x 1.4″ compression driver, 3″ voice coil, neodymium
- LF Drivers: 2x 10″, 2.5″ voice coil, neodymium
- Crossover Frequency: 960 Hz
- Directivity (HxV): 110° x 90° (+20°/-70°), vertical asymmetric horn

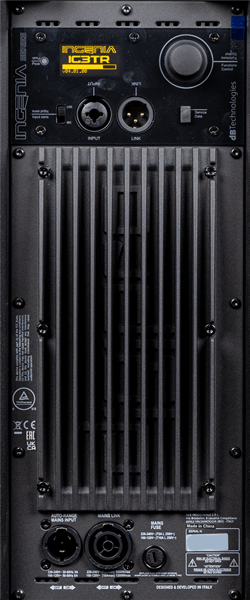

- Inputs: 1x XLR/jack combo, 1x RJ45 RDNet, 1x USB
- DSP: 56-bit, 24-bit/48 kHz AD/DA, FIR Linear Phase filters
- Dimensions (WxHxD): 280 x 806 x 393 mm
- Weight: 20.8 kg
