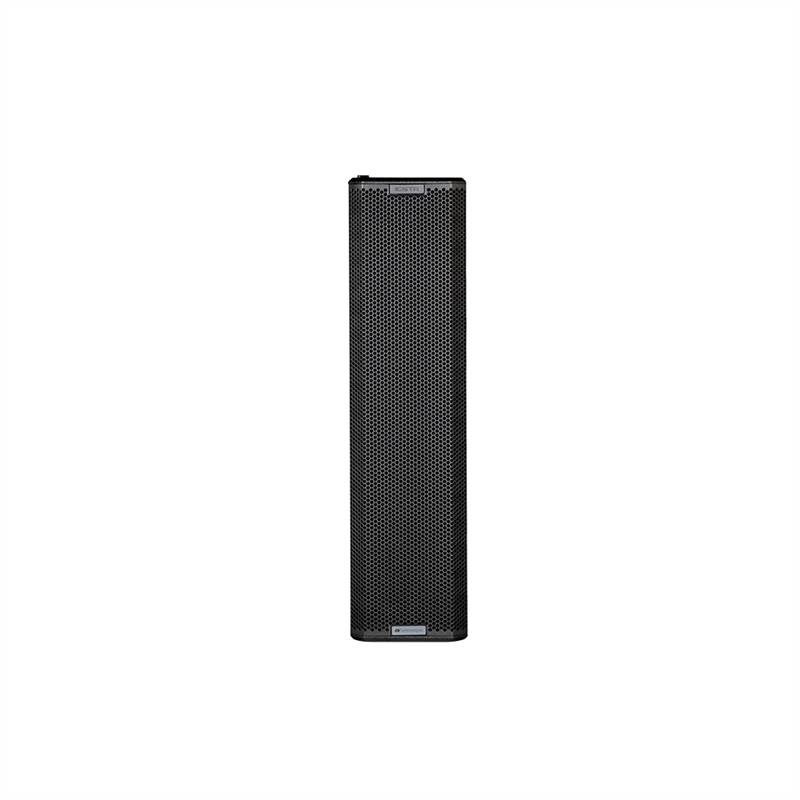

dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - front view

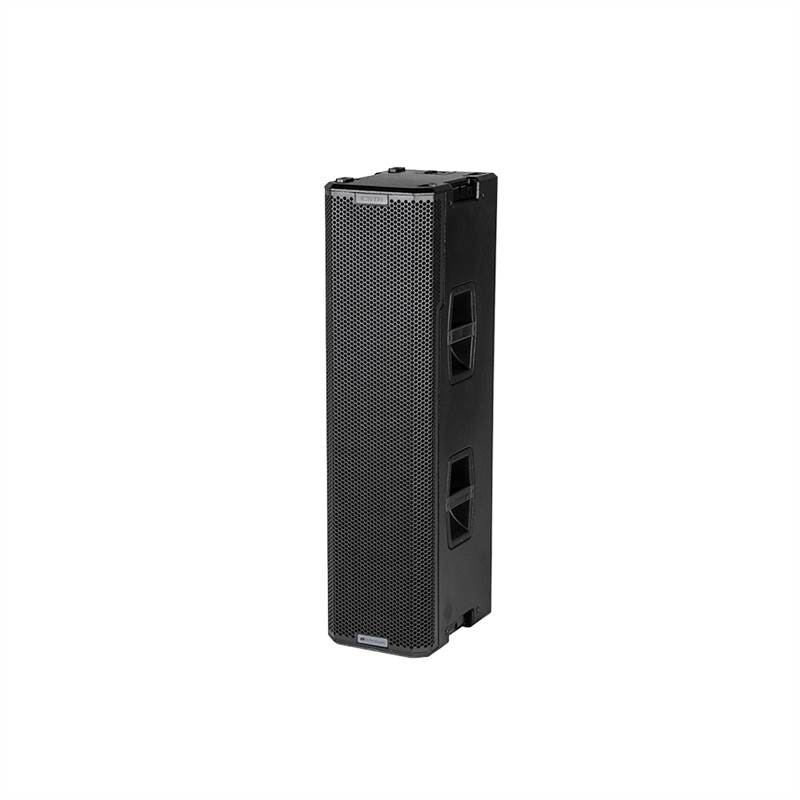

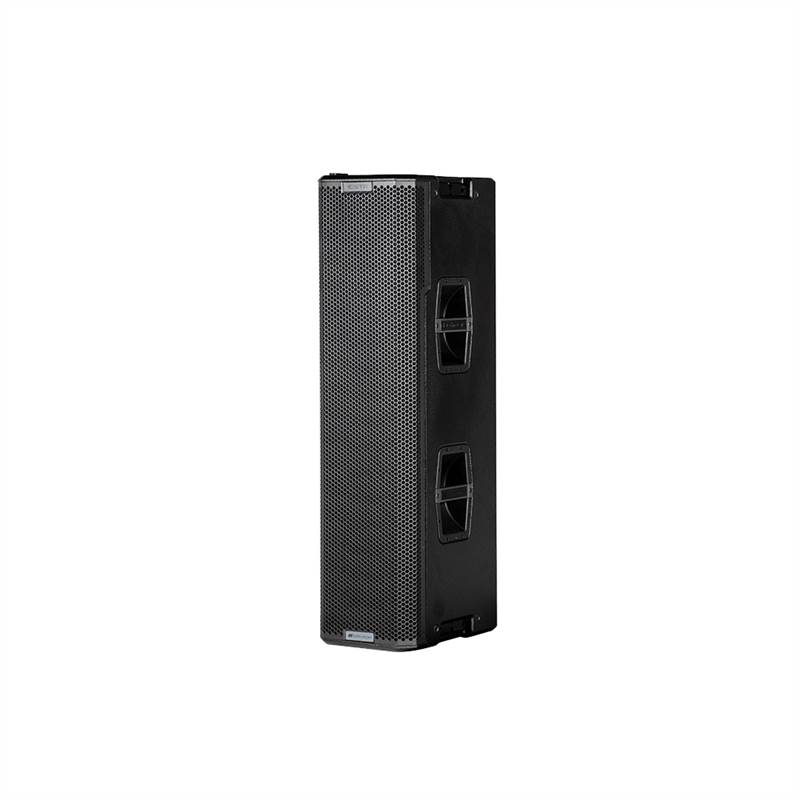

dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - angled view
dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - rear view

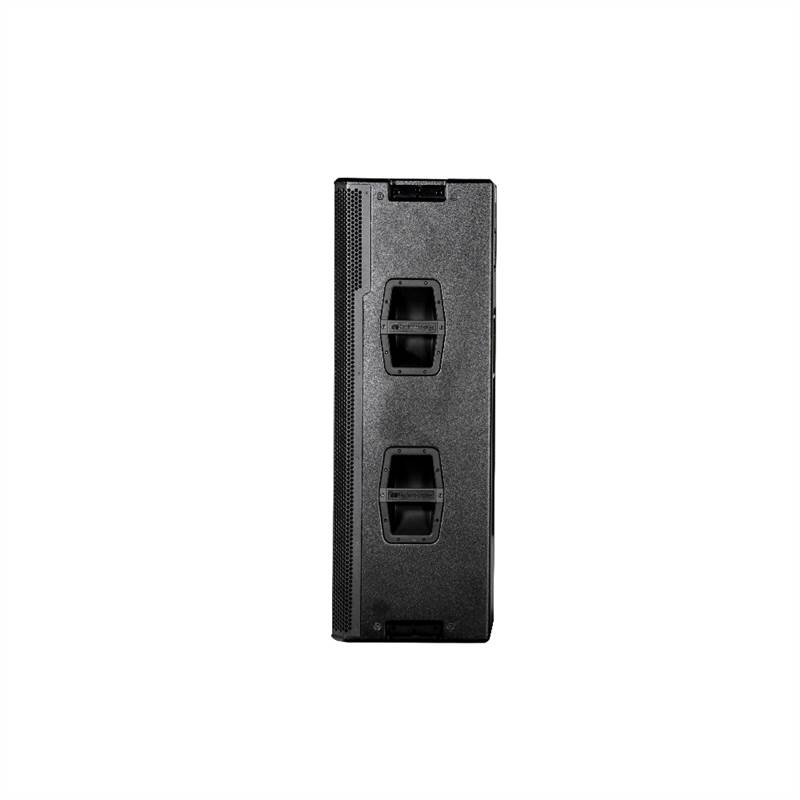

dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - side view
dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - detail view
dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - top view
dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - controls
dB Technologies INGENIA IG5TR - 2-Way Active Column Speaker (3x10") - front view
dB Technologies INGENIA IG5TR – 2-Way Active Column Speaker (3×10″)
$6,800.00 Inc GST Add to cart
RCF EVOX J11 3500W Three-Way Active Portable Column PA System - front view RCF EVOX J11 3500W Three-Way Active Portable Column PA System $4,899.00 Inc GST
dB Technologies INGENIA IG3TR - 2-Way Active Column Speaker (2x10") - front view dB Technologies INGENIA IG3TR - 2-Way Active Column Speaker (2x10") $4,800.00 Inc GST

dB Technologies INGENIA IG5TR – 2-Way Active Column Speaker (3×10″)

$6,800.00 Inc GST

Flagship 2-way active column with 3x 10″ neodymium woofers and 1.4″ driver, 1600W RMS, 138 dB SPL, with advanced beam steering for live and install.

Contact AV Store for availability.

Add to Wishlist
Brand:DB Techologies

Free NZ shipping on all orders over $199 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $199)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

The dB Technologies INGENIA IG5TR is the flagship of the INGENIA column series, delivering high dynamic range and unparalleled flexibility for the most demanding live applications and installations. Three 10″ neodymium low-frequency drivers paired with a 1.4″ compression driver are powered by a 1600W RMS Class-D amplifier with PFC, achieving up to 138 dB AES75 SPL.

Optimized acoustic design with asymmetric horn coverage, beam steering and digital DSP processing make the IG5TR ideal for theatres, houses of worship, multipurpose halls and live events that require powerful, impactful and precise sound reproduction. RDNet networking ensures complete system control via Aurora Net.

Specifications

  • Speaker Type: 2-Way Active Column Speaker
  • Frequency Response (-10dB): 54 – 20,000 Hz
  • Max SPL: 138 dB AES75 / 135.5 dB
  • RMS Power: 1,600 W
  • Peak Power: 3,200 W
  • Amplifier: Class-D, SMPS, PFC
  • HF Driver: 1x 1.4″, 3″ voice coil, neodymium
  • LF Drivers: 3x 10″, 2.5″ voice coil, neodymium
  • Crossover Frequency: 930 Hz
  • Directivity (HxV): 90° x 75° (+20°/-55°)
  • AD/DA: 24-bit/96 kHz
  • Dimensions (WxHxD): 280 x 1100 x 380 mm
  • Weight: 35 kg
