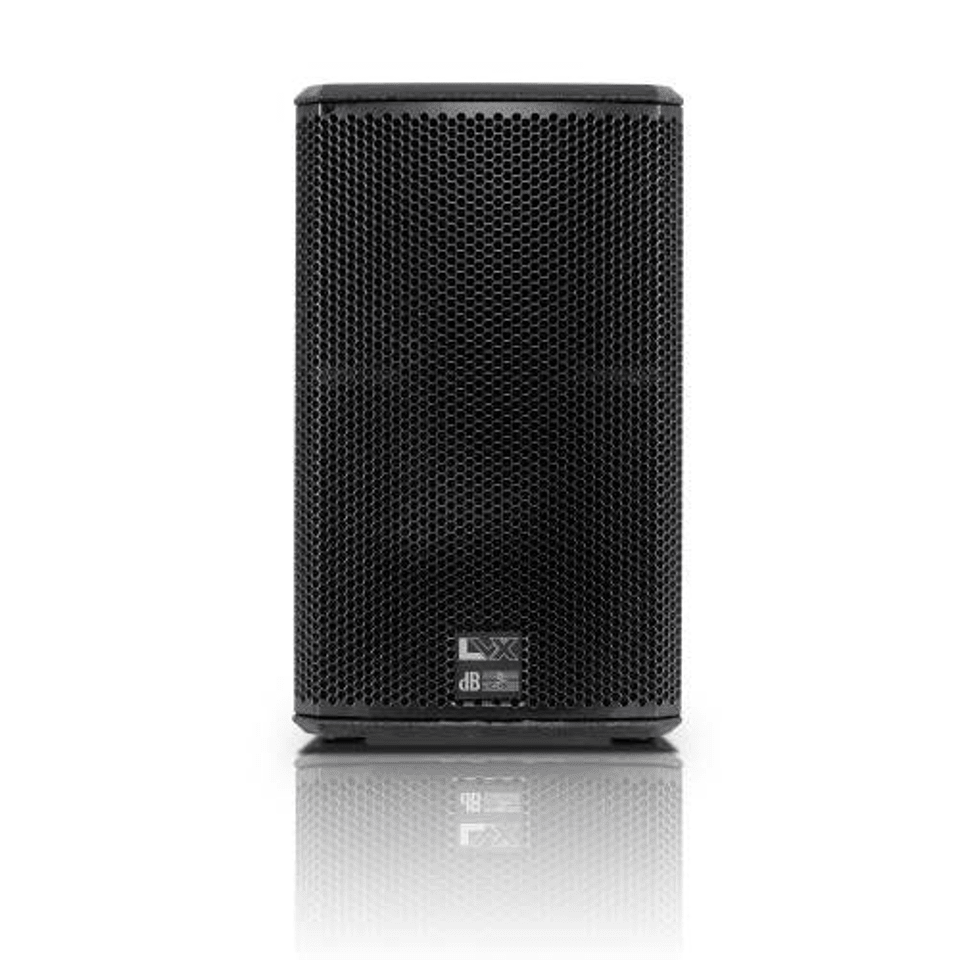

dB Technologies LVX 10 2-Way Active Speakers

The black LVX 10 10″ 2-Way Active Speaker from dB Technologies is equipped with a DIGIPRO amplifier delivering 400W (Power PRG). The active two-way speaker features a 10″ woofer (voice coil 2″) and a driver 1″ (voice coil 1″) on a 90 x 70° horn. The speaker’s horizontal directivity is 90° by default factory setting. The speaker is made of 12mm birch plywood. The single plastic handle on top of the cabinet and the 12 M8 threads located on the sides and the back of the speaker enable easy transport and installation.

Features
2-Way Active Speakers
400W Class-D Digipro® amplifier
10” woofer (2” voice coil)
1” compression driver
90° x 70° directivity
Rotatable Compr. Driver Horn
AD/DA 24 bit 48 kHz
EQ presets selection
Peak, RMS, Thermal Limiter
12x M8 Rigging points
No Cooling Fan
Applications
Live sound
Stage Monitoring
Portable and installed audio-visual systems
Clubs, ballrooms, houses of worship, Museums and Theatres
Specifications
System Active 2 A
Amplifier Type Digital – Class-D DIGIPRO G2 technology
Power PRG: 400 W
Peak Power 800 W
Frequency Response -6 dB: 70 Hz to 19 kHz
-10 dB: 60 Hz to 20 kHz
Crossover LF to HF: 2050 Hz 24 db/octave
Range Cover: 90 x 70° (rotate)
Sound Pressure 125 dB maximum
Cooling Convection, fan-free
Processor Audio Conversion: 24-bit/48 kHz
Volume Control: Digital
Limiter Peak, RMS, thermal, limiters
Component Parts 10.0″ (25.4 cm) Woofer: 2.0″ (5.1 cm) VC
Driver: 1.0″ (2.5 cm) VC
Input Sensitivity Nominal: -3 dBu max
Impedance Input: 2.2 kOhms / 20 kOhms
Power Supply 100 to 120 VAC, 50 to 60Hz
220 to 240 VAC, 50 to 60Hz
Inrush Current 2.1 A
Current Consumption 100 to 120 VAC, 50 to 60 Hz: 1.5 A
220 to 240 VAC, 50 to 60 Hz: 0.75 A
Housing Trapezoidal
Material Steel
Support Flying: 12 x M8
Handle 1 plastic (top side)
Mount Pole-mount cup: D36 mm (aluminium)
Grille Frontal: Performed sheet 1.2 mm with internal foam
Dimensions 11.81 x 18.90 x 11.81″ (30.00 x 48.00 x 30.00 cm)
Weight 29.7 lb (13.5 kg)
