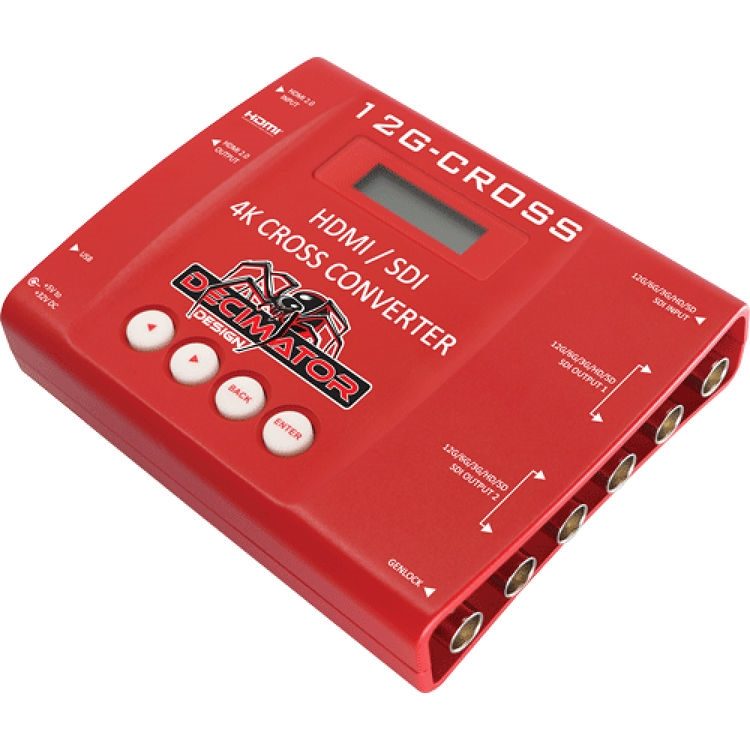

DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter

Overview
Combining capabilities usually reserved for a computer-controlled convertor, the DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter is an independent device that features both HDMI and a 12G/3G/HD/SD-SDI input, and can cross-convert either signal to the other. It features a built-in scaler and frame rate convertor, allowing you to convert the input signal to your required output standard in 3249 possible conversion combinations.
The 12G-CROSS features one HDMI 2.0 output and two pairs of 12G/3G/HD/SD-SDI outputs, controllable via 57 selectable conversion modes to fit your needs. This convertor does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a USB cable, a power supply, and features a threaded locking power socket to prevent accidental power loss during use.
Key Features:

The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard.
Four SD/HD/3G/12G-SDI outputs allow the convertor to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
The 12G-CROSS incorporates an LCD and button-controlled system. This gives you access to features that usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are not needed.
The audio pairs in the SDI and HDMI outputs can be rearranged as required.
The unit incorporates a USB port for control and firmware updates.

Specifications

Input

Video Input Connectors
1 x HDMI (HDMI 2.0) Female1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female

Input Video Format
HDMIDCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDIDCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps

Embedded Audio Input
HDMI: 2-Channel (per Input)SDI: 2-Channel (per Input)

Output

Video Output Connectors
1 x HDMI (HDMI 2.0) Female2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Loop Output)

Output Video Format
HDMIDCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDIDCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps

Embedded Audio Output
HDMI: 2-Channel (per Output)SDI: 2-Channel (per Output)

Standards

Video Standard Compliance
SMPTE 259M/274M/292M/296M/ST-2036

HDCP Support
None

Connectivity

Other I/O
1 x USB (Unspecified Type) Input1 x BNC Genlock

Power

Power Connector
1 x Barrel (5 to 32 VDC) Input

General

Dimensions
5.12 x 4.17 x 1.22″ / 13 x 10.6 x 3.1 cm
