Overview

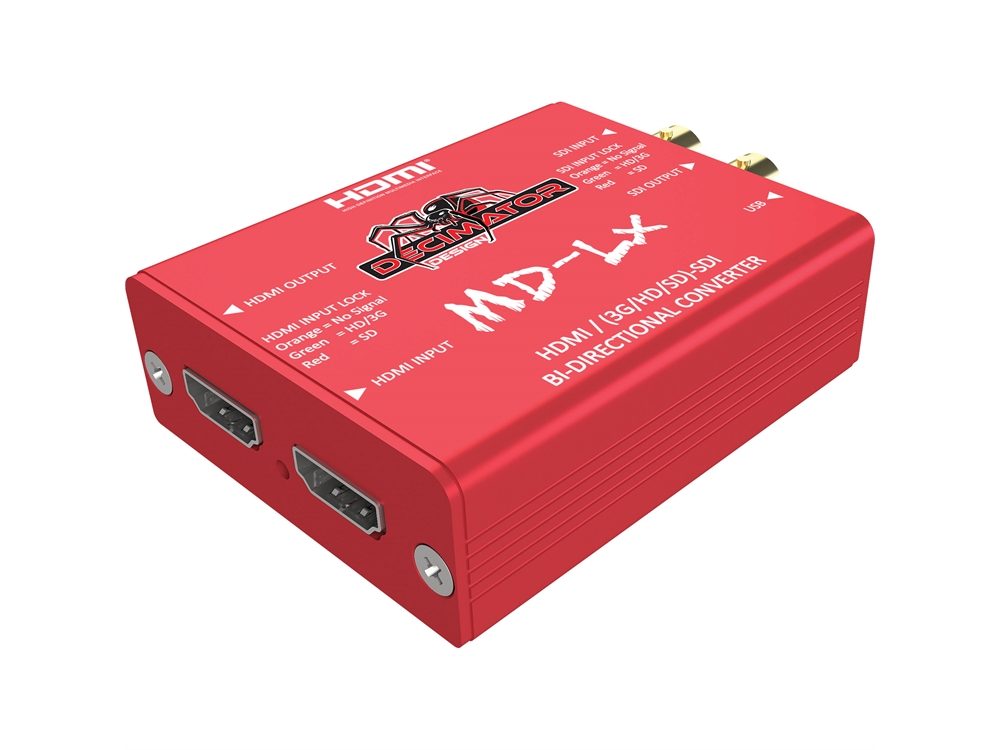

The DECIMATOR MD-LX is a pocket-sized bi-directional convertor featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.
Key Features
Conversion Modes
Auto Select: Active input to all outputs / or SDI to HDMI & HDMI to SDI if both inputs are active
HDMI input to SDI output & SDI input to HDMI output
SDI input to HDMI and SDI outputs
HDMI input to HDMI and SDI outputs
Other Features
Supports 3G Level A and B and allows for conversion between both
USB port for power, control, and firmware upgrades
HDMI and SDI input locks
Specifications
Input
1 x HDMI Type A1 x 3G/HD/SD-SDI1 x Micro USB port for power, control, and firmware updates
Output
1 x HDMI Type A1 x 3G/HD/SD-SDI
HDMI Format Support
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz1920 x 1080i at 50/59.94/60 Hz1280 x 720p at 25/29.97/30/50/59.94/60 Hz625i at 50 Hz525i at 59.94 Hz
SDI Format Support
3G-A or 3G-B:SMPTE 424M at 2.97 and 2.967 Gbps1080p at 50/59.94/60 HzHD:SMPTE 292M/274M/296M at 1.485 and 1.435 Gbps1080i at 50/59.94/60 Hz1080p/psf at 23.98/24/25/29.97/30 Hz720p at 23.98/24/25/29.97/30/50/59.94/60 HzSD:SMPTE 259M at 270 Mbps625i at 50 Hz525i at 59.94 Hz
Power
USB: 4.4 to 5.25 VDCUses under 2.5 W
Dimensions
2.4 x 2.9 x 0.9″ (6 x 7.4 x 2.3 cm)
