Overview

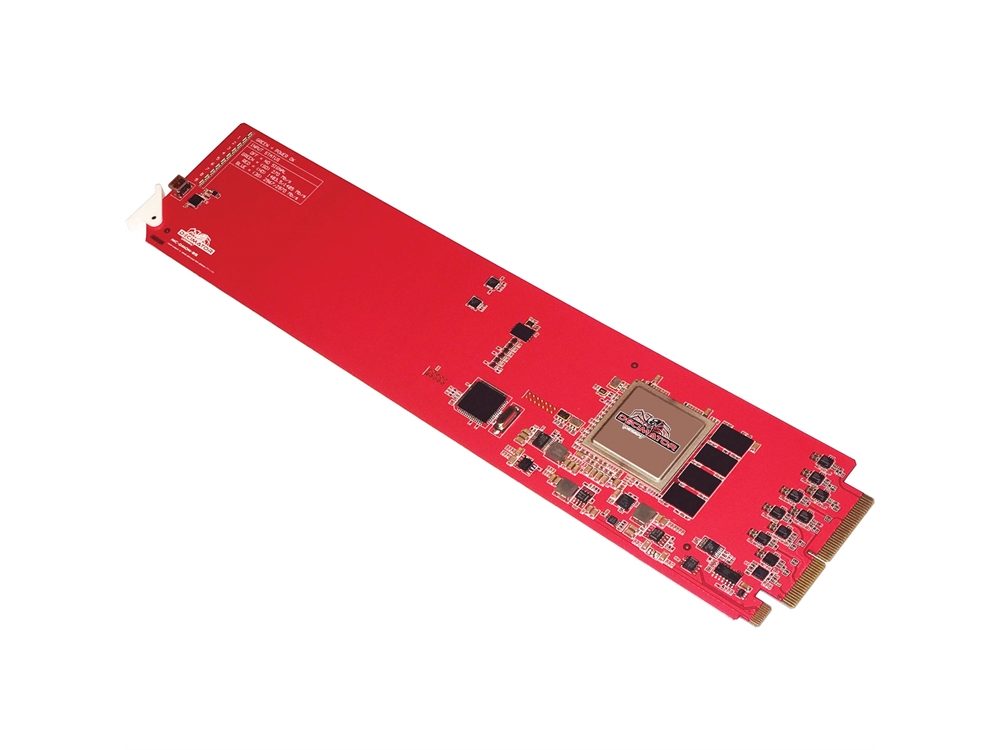

Decimator ‘s MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor. Useful in studio or A/V situations which employ openGear cards, the MC-DMON-9S can accept 9 SDI inputs of the SD, HD, or 3G variety. Each input auto-detects what kind of signal is being received in order to properly scale it to the monitor. Multiple viewing modes are built-in and recallable, and you can use Decimator’s USB control panel to save and load custom presets.
Key Features
- Supports both 3G-SDI level A and B on the input and output and allows conversion between levels A and B
- Includes standard layouts and supports custom layouts
- Customisable display overlays (can be enabled individually on each channel): 16 character UMD overlay, 16 channel audio metering overlay, format status overlay, safe action and title safe overlays, centre cross, audio ID.
- Save and load custom layouts via USB
- Input switching with full-screen scaling
- Selectable output format in both full-screen and multi-viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Auto-detection on all inputs
- Pass-Through mode allowing any of the 9 inputs to be selected and routed to the SDI output
- USB port for control and firmware updates
- openGear DashBoard for control
Specifications
| Inputs | 9 x SDI |
| Outputs | 1 x SDI |
| SDI Standards | Inputs: Simultaneous support for 3G-SDI, HD-SDI, SD-SDI per input Output: Configurable as 3G-SDI, HD-SDI, SD-SDI |
| Other Ports | 1 x USB for control and firmware updates |
