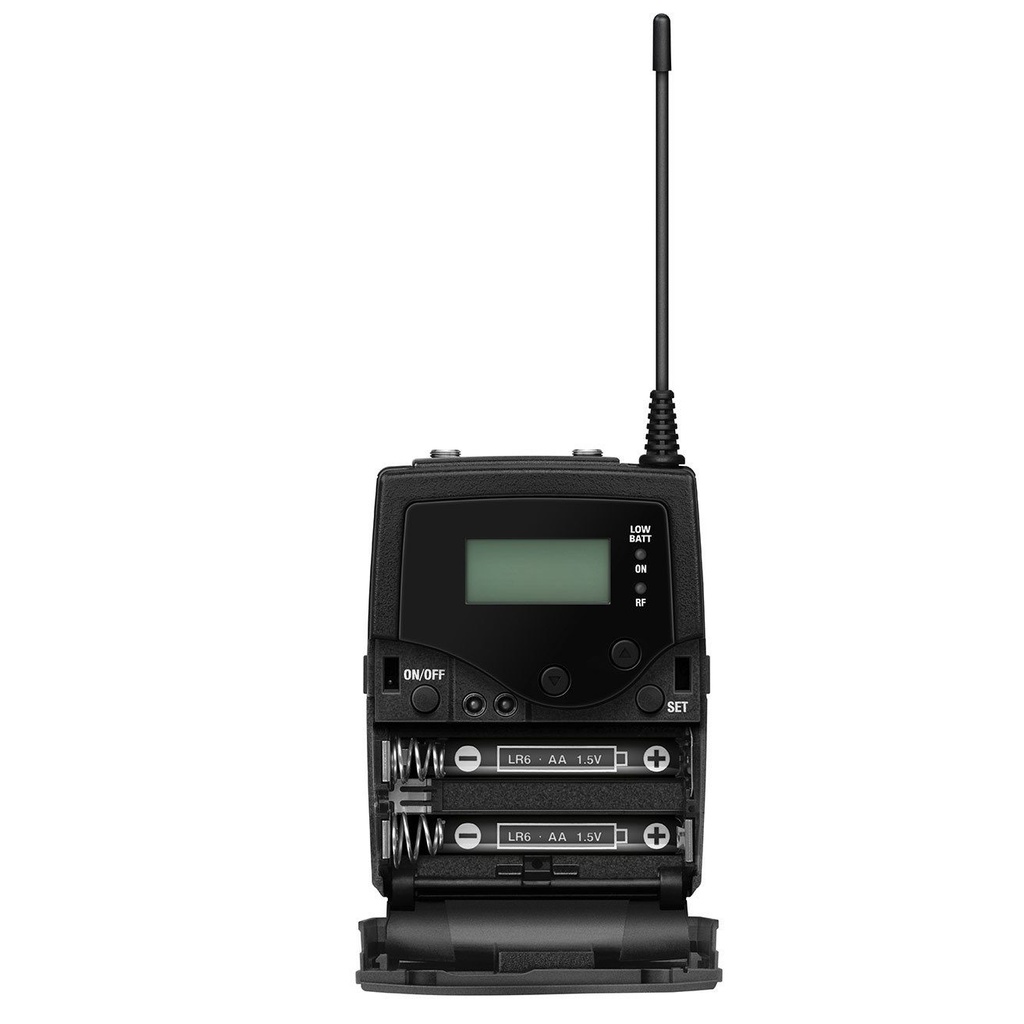

EK 500 G4-BW Portable Camera receiver

$799.00 Inc GST

Powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.

Can Order From Suppler Delivery Times Vary as some shipments are Delayed - Contact For ETA

Add to Wishlist
Brand:Sennheiser

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Questions? Ask Us here

Diversity operation 3.5mm balanced output socket includes minijack output cable and balanced XLR cable and camera mount 6-10 hour battery life up to 42 MHz switching bandwidth. Optional rechargeable battery pack (626-698 MHz)

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
Specifications
  • Frequency range
  • Dimensions
    Approx. 82 x 64 x 24 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
  • Weight
    (incl. batteries) approx. 130 g
  • Audio output
    3.5 mm jack socket: +17 dBu (mono, balanced)
  • Signal-to-noise ratio
    Line: ≥ 110 dBA, Phones: approx. 90 dBA
  • Switching bandwidth
    up to 88 MHz
  • Peak deviation
    ±48 kHz
  • Nominal deviation
    ±24 kHz
  • Operating time
    Typically 8 h
  • Modulation
    Wideband FM
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
    at nominal voltage: typ. 140 mA
    with receiver switched off: ≤ 25 µA
  • Adjacent channel rejection
    Typically ≥ 65 dB
  • Intermodulation attenuation
    Typically ≥ 65 dB
  • Powering
    3 V battery / 2.4 V rechargeable battery
  • Receiving frequency
    Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity
    < 1.6 μV for 52 dBA eff S/N
  • Squelch
    low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
  • Temperature Range
    -10 °C to +55 °C
  • Receiver Principle
    Adaptive diversity
  • Blocking
    ≥ 70 dB
