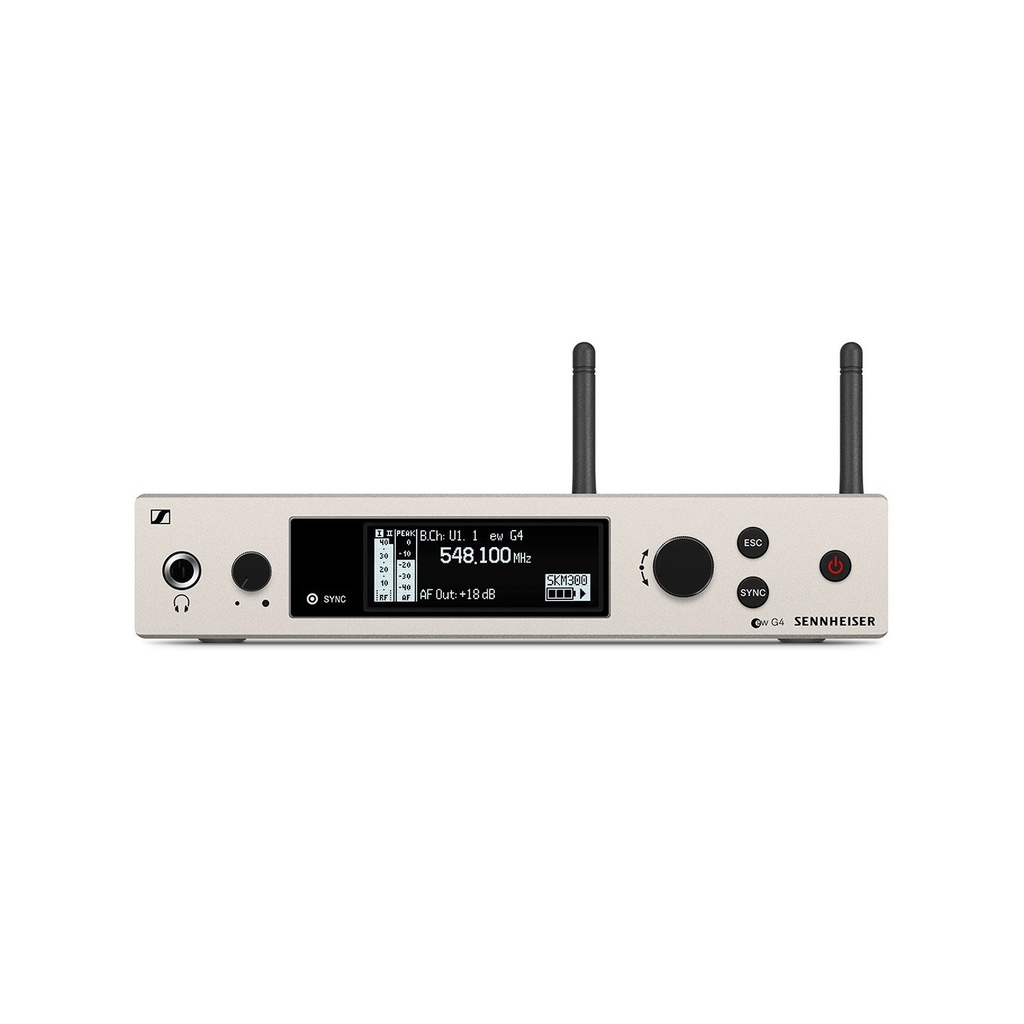

EM 300-500 G4 True diversity half-rack receiver

Rackmount true diversity receiver. GA3 rackmount included (626-698 MHz)
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.


True diversity half-rack receiver in a full-metal housing with intuitive OLED display
Easy to use, fast setup time
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
Up to 88 MHz bandwidth, up to 32 channels
Increased RF output power (10/30/50 mW)
Transmission Range: up to 100 meters / 330 feet
Compatible with wireless speaker system LSP 500 PRO
RC (remote control) switch available for the bodypack transmitter

Specifications

Frequency range

Dimensions

Approx. 202 x 212 x 43 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

Approx. 980 g

Audio output

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio

≥ 115 dBA

Switching bandwidth

up to 88 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Modulation

Wideband FM

Power supply

12 V DC

Antenna connector

2 BNC sockets

Current consumption

350 mA

Adjacent channel rejection

Typically ≥ 75 dB

Intermodulation attenuation

Typically ≥ 70 dB

Receiving frequency

Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity

< 2.5 μV for 52 dBA eff S/N

Squelch

5 to 25 dBμV in steps of 2 dB

Equalizer

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range

-10 °C to +55 °C

Receiver Principle

True diversity

Blocking

≥ 75 dB

What's in the Box

EM 300-500 G4 true diversity receiver
2 rod antennas
power supply
GA 3 rackmount set
quick guide
safety guide
manufacturer declaration sheet
