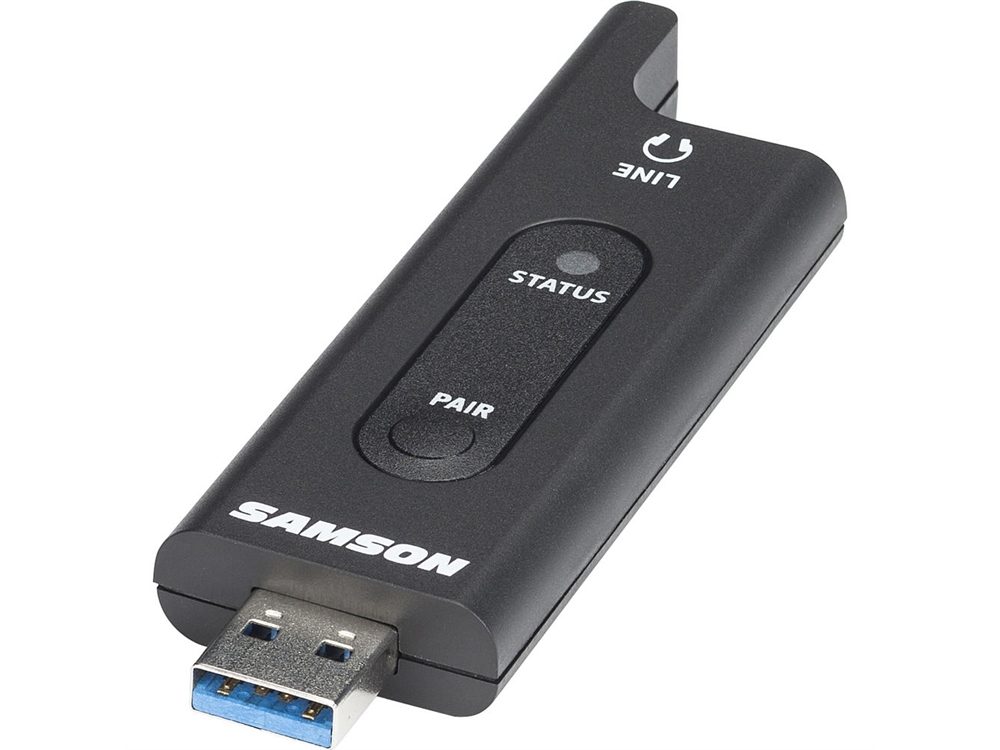

Samson Stage Series RXD2 Wireless USB Receiver (No Mic, No Transmitter)

Product Features

2.4 GHz Digital USB Receiver
Built into a USB Stick
Easy Pairing for Fast Set Up
100′ Operating Range
Compatible with XPD1 Presentation System

Overview
The Stage Series RXD2 Wireless USB Receiver from Samson brings the convenience of a 2.4 GHz receiver to your digital communications. It can be used when paired with a microphone and a beltpack transmitter (sold separately) to capture audio straight to your Mac or Windows computer using your favourite digital audio software, which is ideal for capturing dynamic performances at gigs, and more.
The USB receiver provides over 100′ of wireless range (environment-dependant) and is built with 1-touch pairing, an LED status indicator that displays the operation mode, and a line/headphone output to connect to an analogue line input or headphones for monitoring. Furthermore, the receiver is ideal for broadcasting, live streaming, presentations, and more. It is also compatible with Samson Expedition Series portable PAs.

Specifications

Wireless Transmission
Digital UHF (2.4 GHz)

Number of RF Channels
1

Max Systems per Setup
2

Modulation
GFSK

Receiver

Form Factor
USB Stick

Antenna
1 x 1/4 Wave Internal

Number of Audio Channels
1

Audio I/O
1 x 1/8″ / 3.5 mm TS Female Unbalanced Headphone Output

Audio Output Level
1/8″ / 3.5 mm Output: 9 dBu

Frequency Response
20 Hz to 17 kHz

USB Port
1 x USB Type-A (Bus Power, Charging, Host Connection)

Power Requirements
USB Bus Power

Display & Indicators
1 x LED (Data Transmission, Host Connection, Power)

Housing
ABS

Operating Temperature
14 to 104°F / -10 to 40°C

Dimensions
3.5 x 0.9 x 0.3″ / 89.0 x 23.0 x 8.0 mm

Weight
0.4 oz / 10.0 g
